Battery Heater Blanket

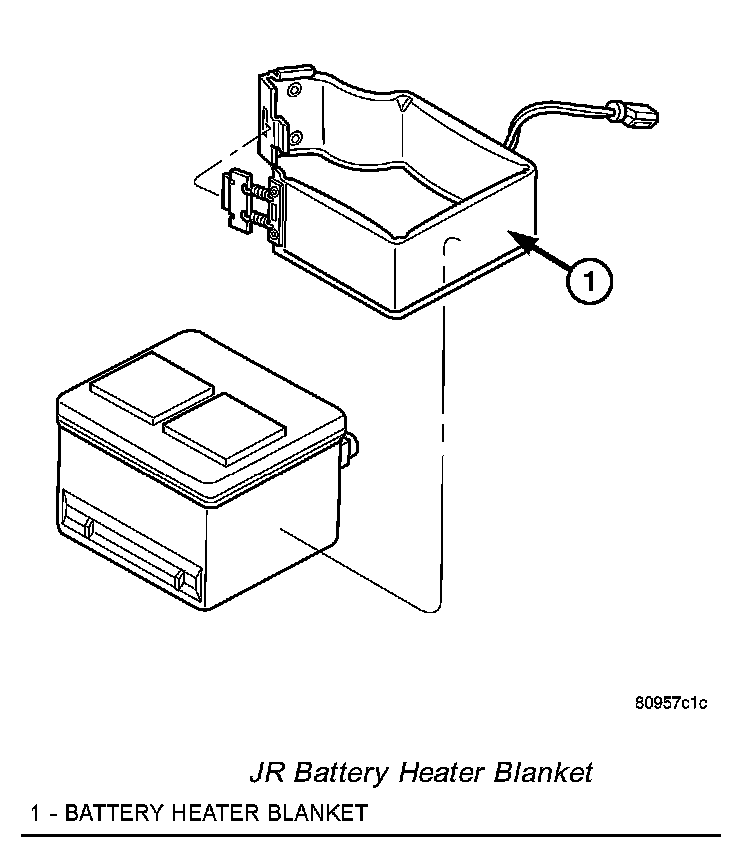

JR Battery Heater Blanket:




A heater blanket is used to improve the battery cold-start ability. This blanket operates on 110 volt AC current and is used with Alaska and Canada cold weather packages.

The heater blanket cannot be adjusted or repaired. If the blanket is faulty or damaged it must be replaced.

The temperature of the battery can affect battery performance. Only DAIMLERCHRYSLER approved battery blanket/block heater combination should be used. The battery blanket heater is designed to provide optimum charging system performance in very cold ambient temperatures below -17.8° C (0° F).
