Transmission Noisy With No DTCS Present
Symptom:
TRANSMISSION NOISY WITH NO DTC'S PRESENT

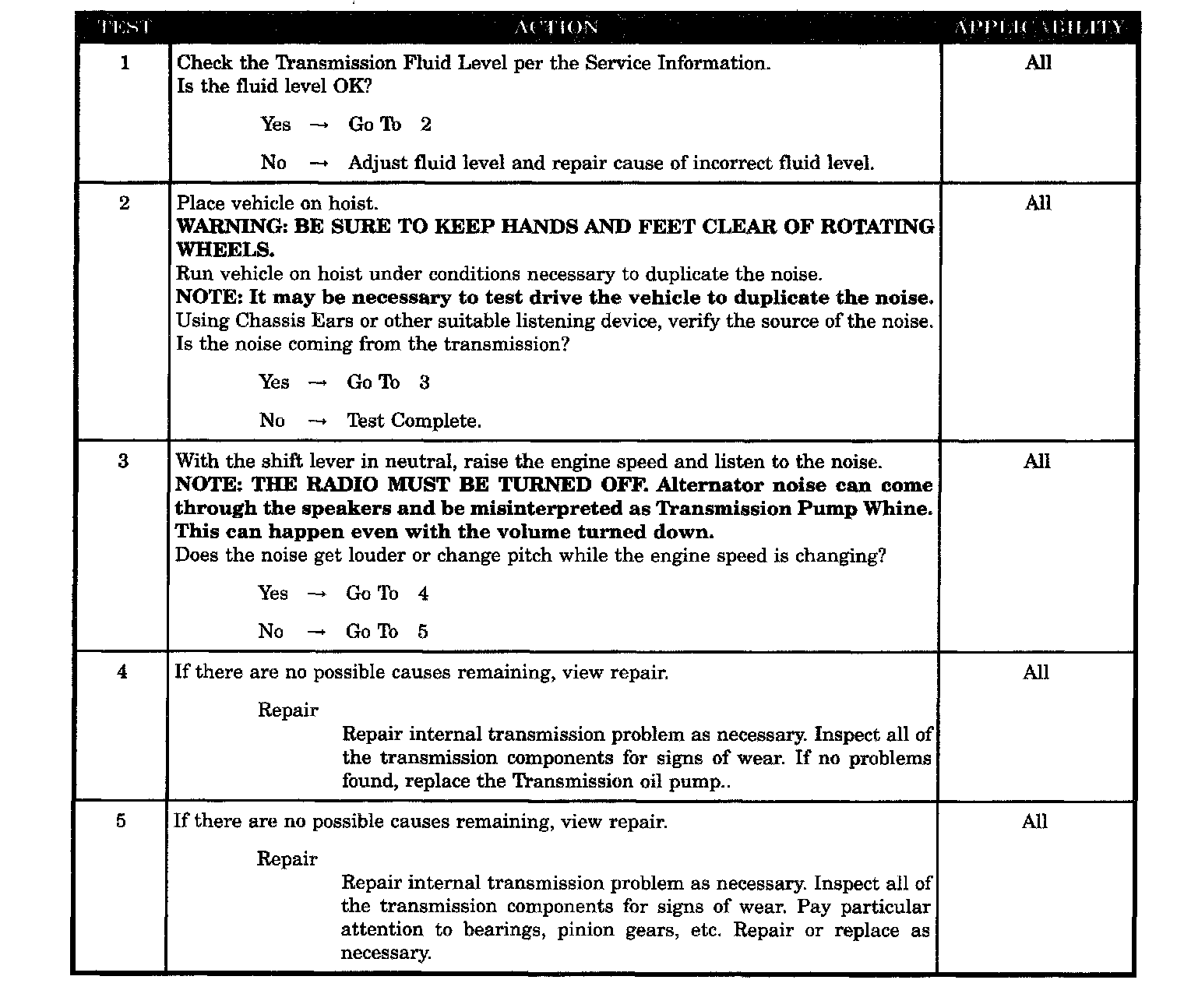

Test 1-5:
POSSIBLE CAUSES
-
INCORRECT FLUID LEVEL
-
INTERNAL TRANSMISSION PROBLEM - NOISY
-
INTERNAL TRANSMISSION PROBLEM - NOISY WHILE STANDING STILL
