No Manual Autostick Operation

Symptom:
NO MANUAL AUTOSTICK OPERATION

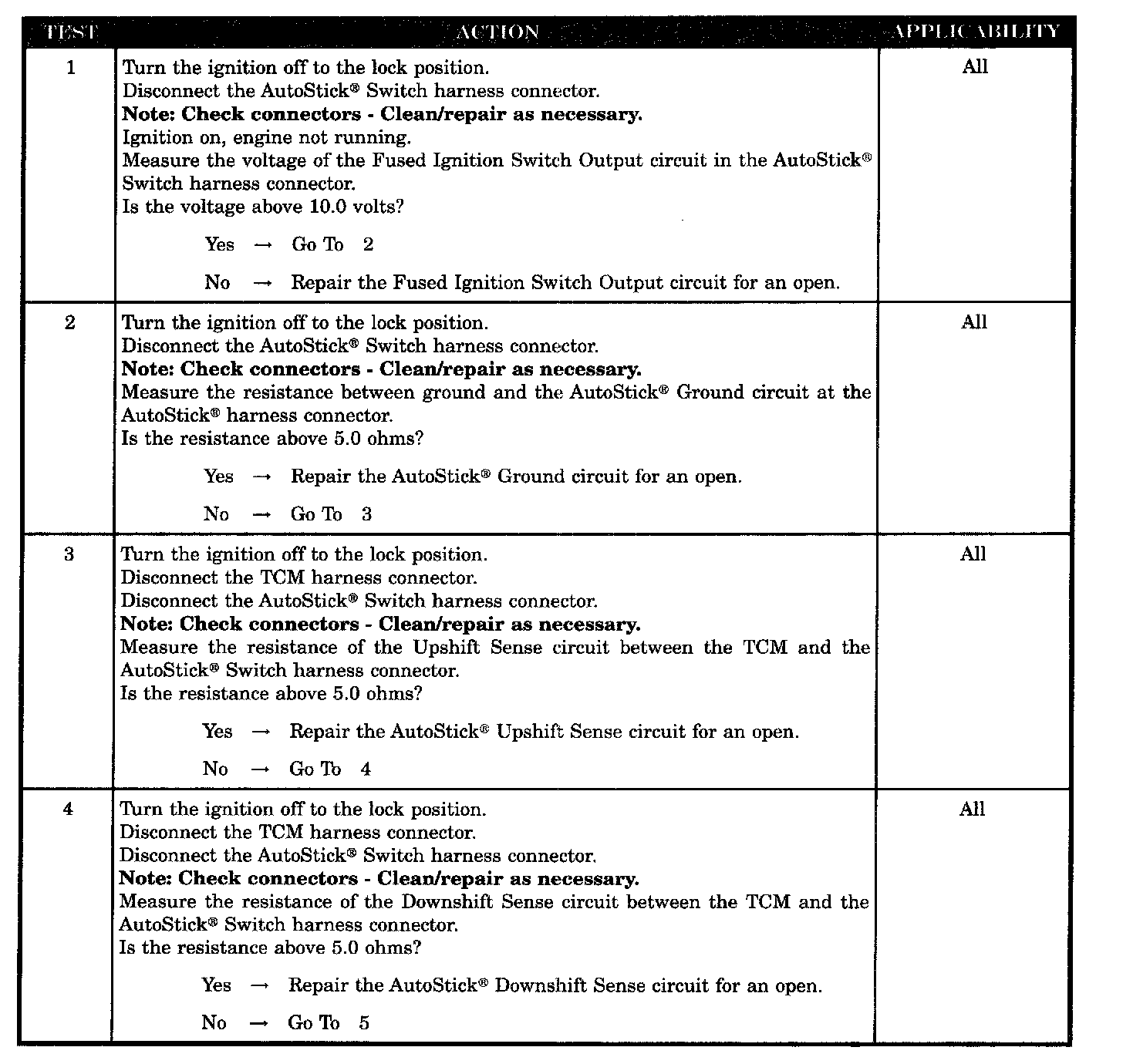

Test 1-4:

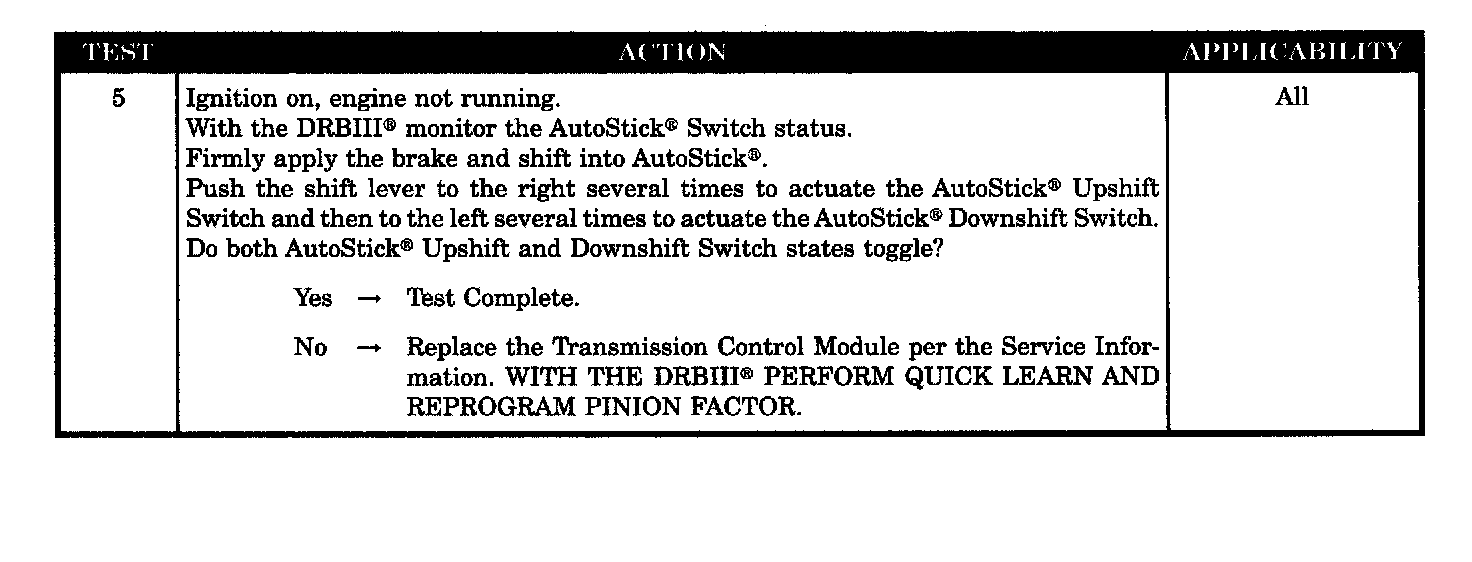

Test 5:

POSSIBLE CAUSES
- AUTOSTICK DOWNSHIFT SENSE CIRCUIT OPEN
- AUTOSTICK GROUND CIRCUIT OPEN
- AUTOSTICK UPSHIFT SENSE CIRCUIT OPEN
- FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
- TCM - AUTOSTICK
