Variable Induction Control Valve: Service and Repair

REMOVAL - 2.7L
1. Disconnect negative battery cable.

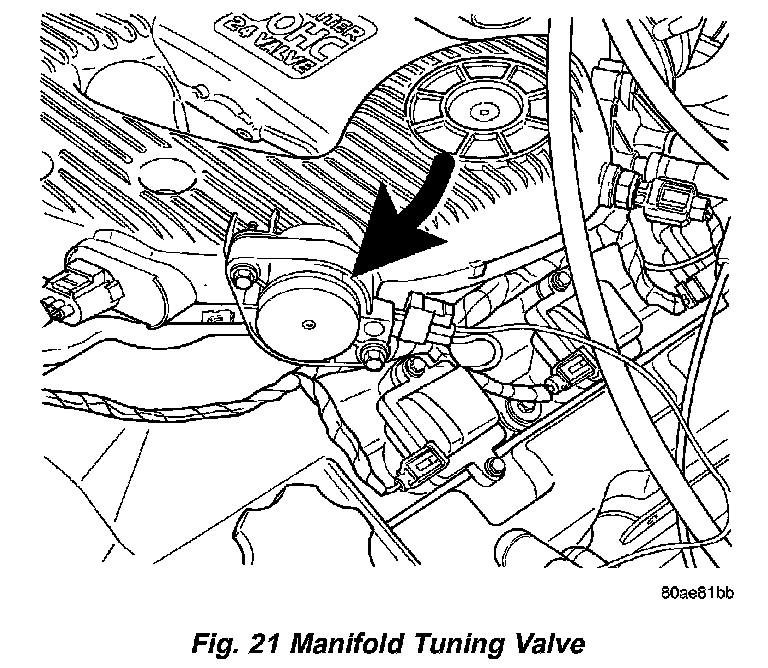

Fig.21 Manifold Tuning Valve:

2. Disconnect electrical connector (Fig. 21).

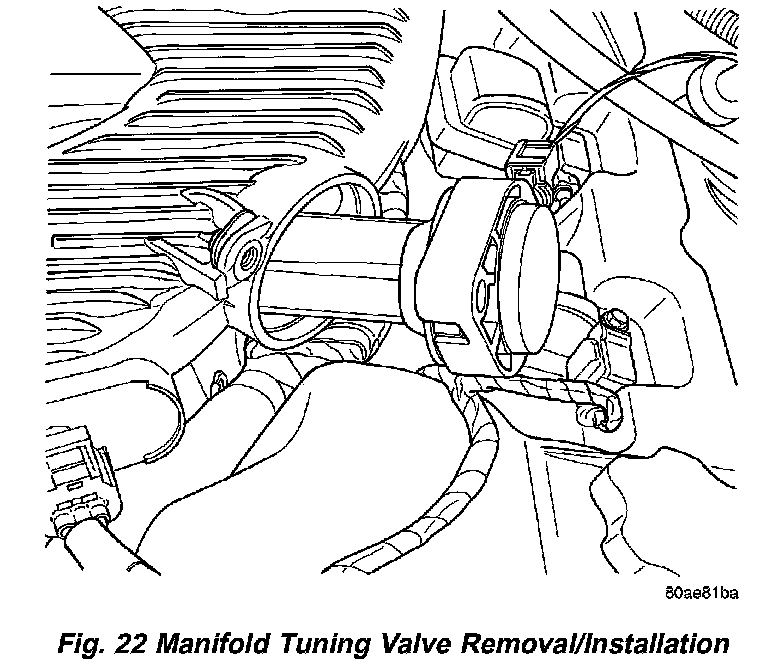

Fig.22 Manifold Tuning Valve Removal/Intallation:

3. Remove manifold tuning valve mounting screws. Remove tuning valve (Fig. 22).

INSTALLATION - 2.7L
1. Install tuning valve. Tighten mounting screws to 11.9 Nm (105 in. lbs.) torque.
2. Install electrical connector.
3. Connect negative battery cable.
