Evaporative Emission Control Canister: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Remove the fuel tank.

Fig.17 EVAP Canister Hoses:

3. Disconnect the EVAP hoses from the EVAP canister and the electrical connector.

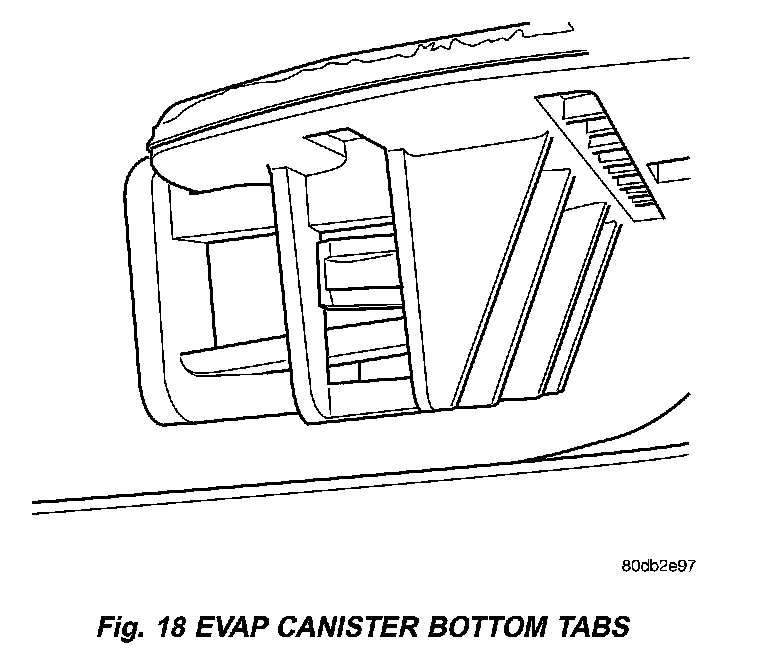

Fig.18 EVAP Canister Bottom Tabs:

4. Squeeze the lower tabs on the EVAP canister to release it.
5. Swing the EVAP canister away from the lower bracket.

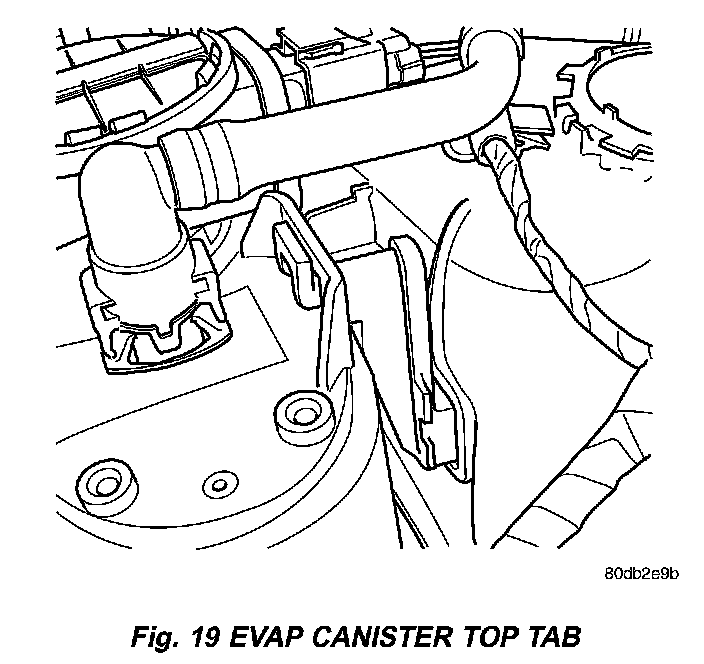

Fig.19 EVAP Canister Top Tab:

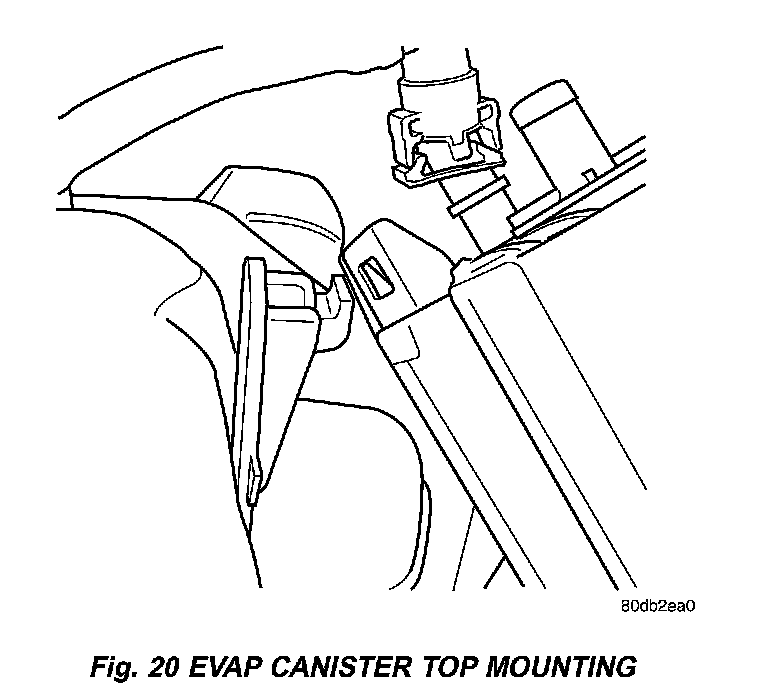

Fig.20 EVAP Canister Top Mounting:

6. Lift the EVAP canister up and off the upper mounting tab and.

INSTALLATION
1. Install the EVAP canister to the upper mounting bracket and.
2. Swing EVAP canister into the lower mounting and snap into place.
3. Install the hoses to the top of the EVAP canister.
4. Connect the electrical connector.
5. Install the fuel tank.
6. Connect the negative battery cable.
