Checking Fuel Pressure Leak Down

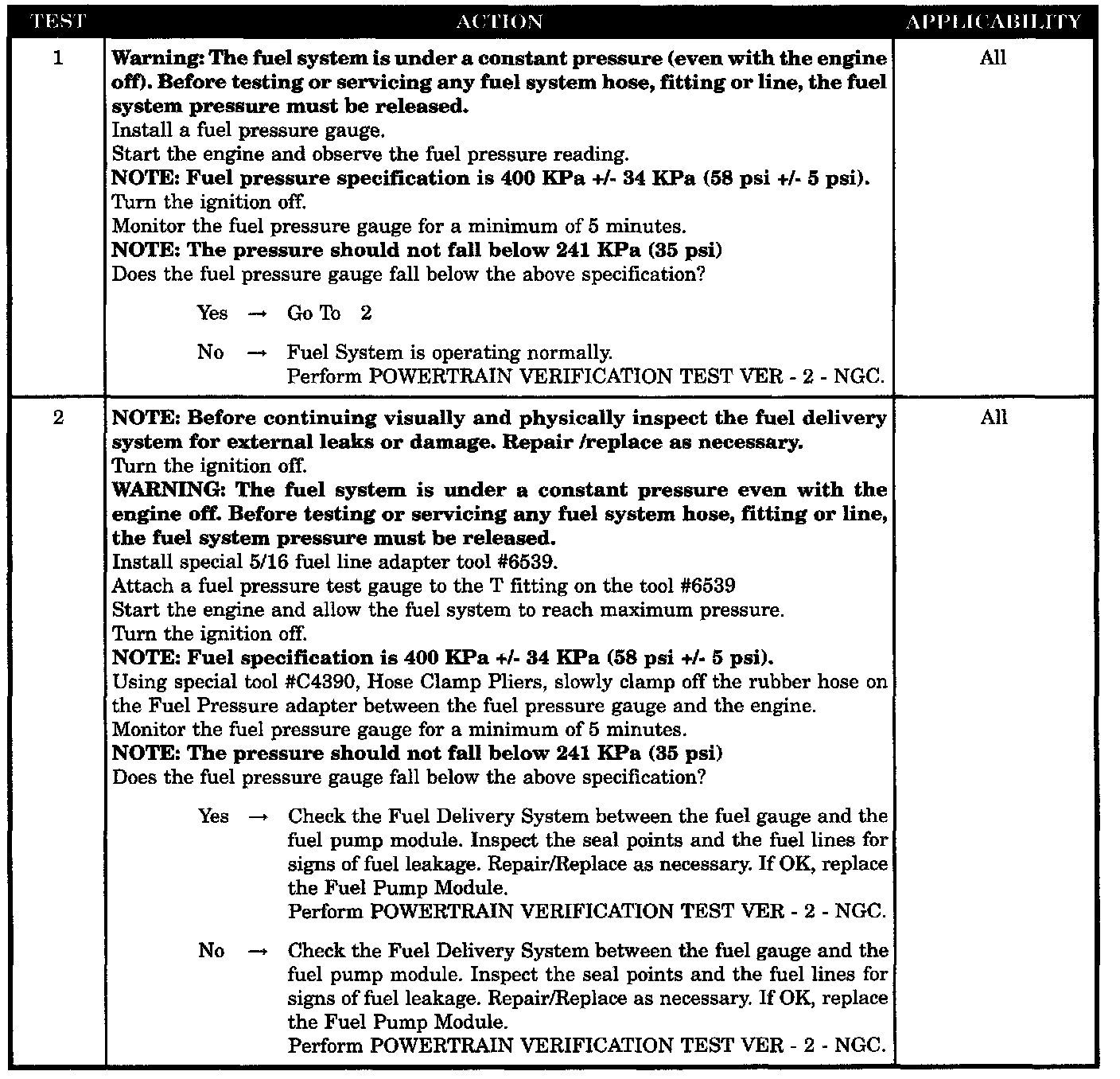

Test 1 - 2:
SYMPTOM
CHECKING
FUEL PRESSURE
LEAK DOWN
POSSIBLE CAUSES
-
Checking
fuel pressure
-
Fuel pump module
-
Checking fuel leak down
