Tail Lamp: Service and Repair

REMOVAL
1. Disconnect and isolate battery negative cable.
2. Disconnect wire harness connector from tail lamp unit by sliding the red lock, then pressing release tab.
3. Remove wing-nuts attaching tail lamp.

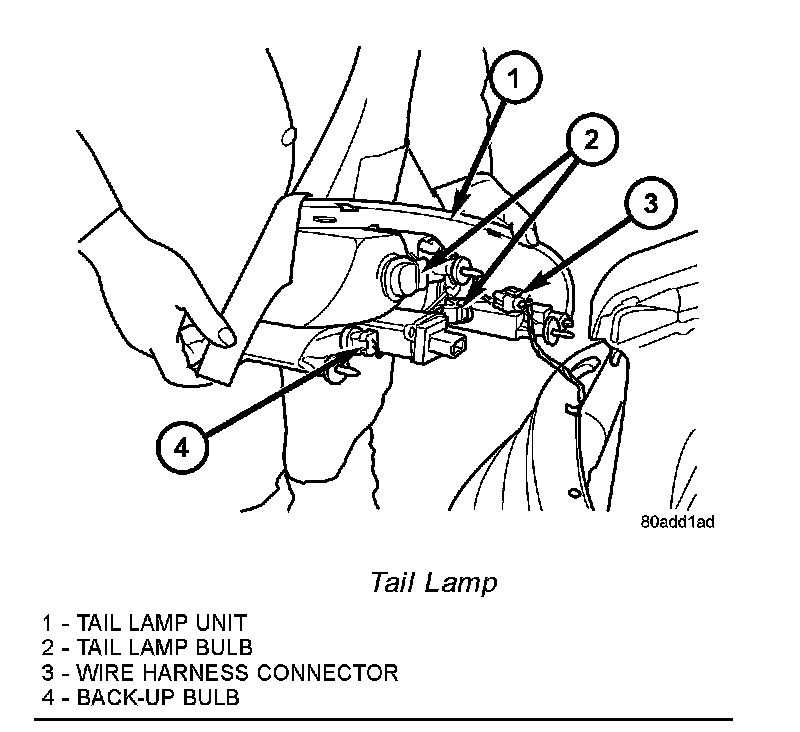

Tail Lamp:

4. Remove lamp from opening in quarter panel.
5. Disconnect wire connector from back of tail lamp (left side).
6. Remove tail lamp from vehicle.

INSTALLATION
1. Place tail lamp into position.
2. Connect wire connector to back of tail lamp (left side).
3. Install lamp to opening in quarter panel.
4. Install wing-nuts attaching tail lamp to rear closure panel.
5. Reconnect wire harness connector to the tail lamp. Slide lock into position.
6. Connect battery negative cable.
