Parking Lamp: Service and Repair

FRONT POSITION LAMP -EXPORT

REMOVAL
1. Disconnect and isolate the battery negative cable.

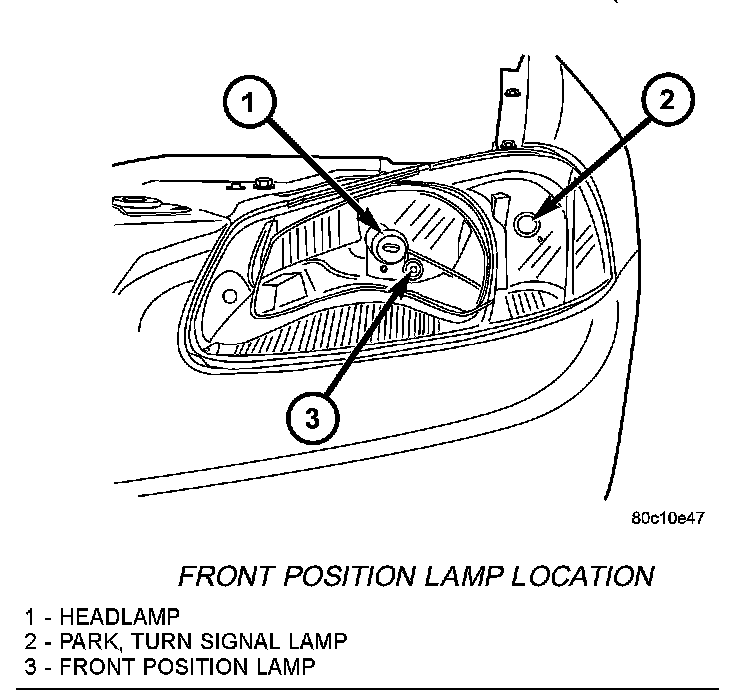

Front Position Lamp Location:

2. Remove headlamp unit.

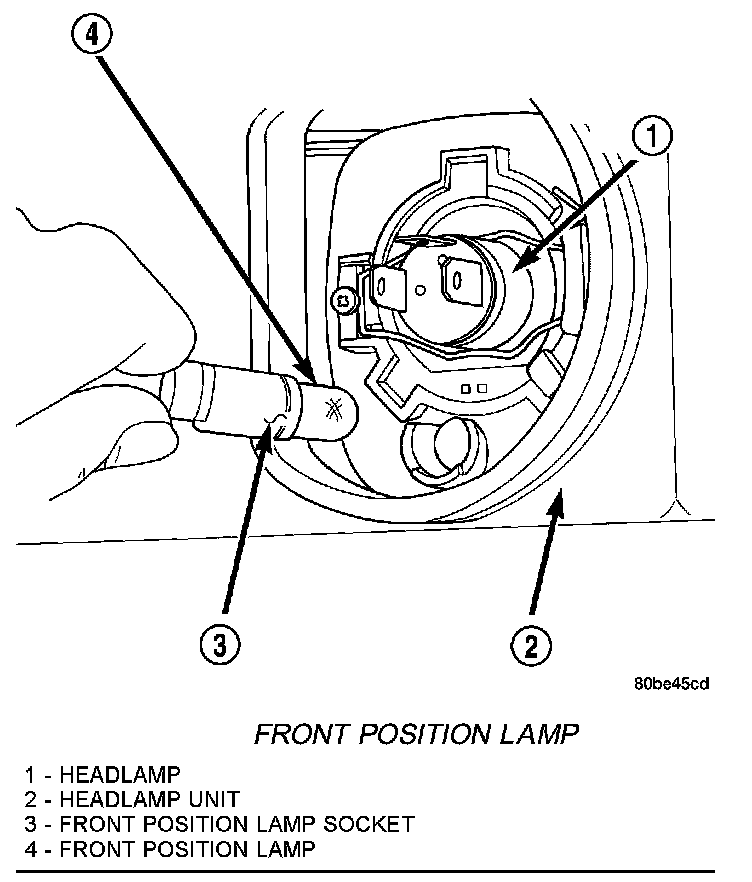

Front Position Lamp:

3. Pull back rubber boot seal to expose lamp.
4. Pull front position lamp socket straight from the headlamp unit.
5. Remove bulb from socket.

INSTALLATION
1. Insert bulb to socket
2. Install front position lamp socket to headlamp unit
3. Place rubber boot into position
4. Install headlamp unit
5. Connect battery negative cable
