Fog Lamp Unit Alignment-Export

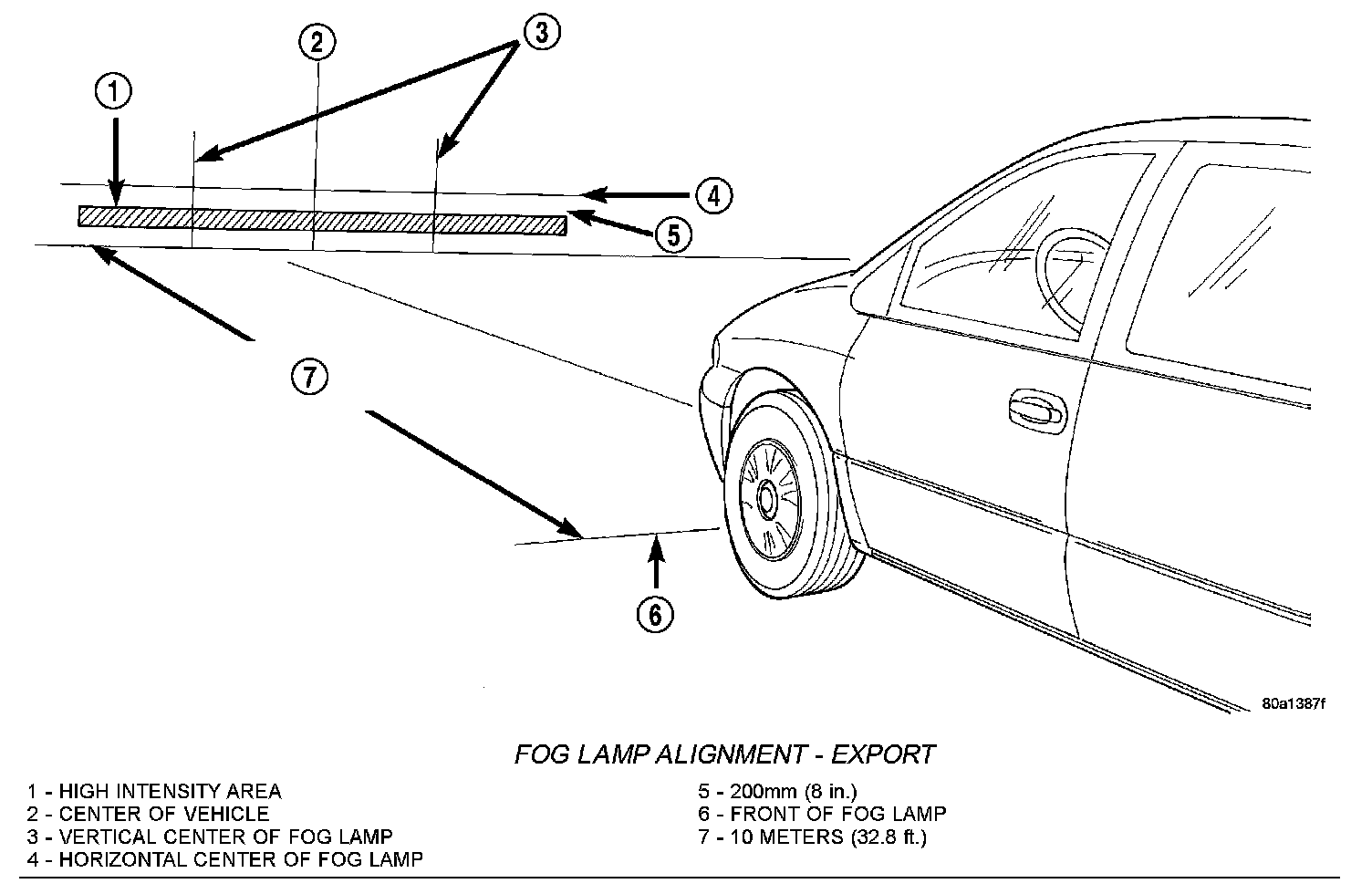

Fog Lamp Alignment - Export:

Prepare an alignment screen. (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/HEADLAMP UNIT - ADJUSTMENTS). A properly aligned fog lamp will project a pattern on the alignment screen 200 mm (8 in.) below the fog lamp centerline and straight ahead. To adjust fog lamp alignment, rotate alignment screw to achieve the specified low beam hot spot pattern.
