Rear Fog Lamp Unit Replacement - Export

REMOVAL
1. Disconnect and isolate the battery negative cable.

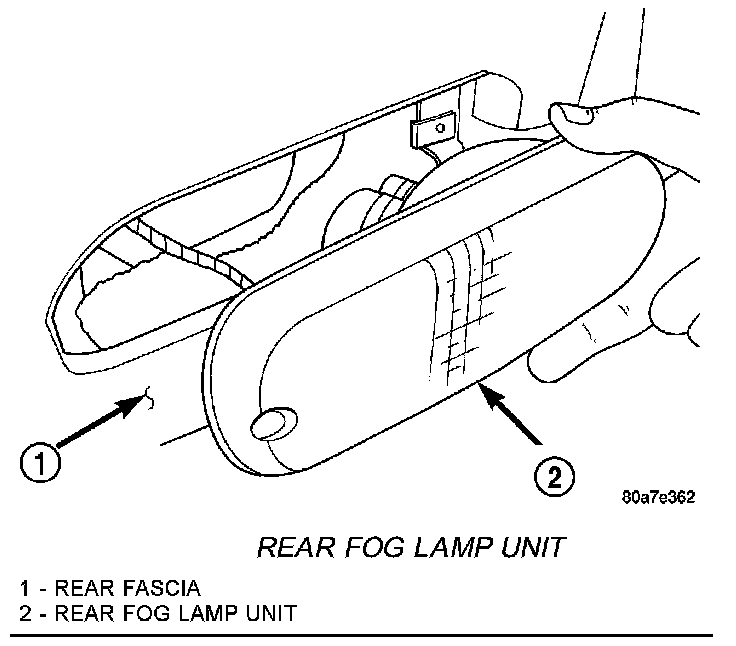

Rear Fog Lamp Unit:

2. Remove the appropriate rear fog lamp retaining screws and pull from rear fascia.
3. Rotate the rear fog lamp socket counterclockwise one quarter turn and pull straight out of lamp housing.
4. Remove the rear fog lamp unit from the vehicle.

INSTALLATION
1. Install the rear fog lamp socket in the lamp housing.
2. Position and install the rear fog lamp unit to the rear fascia.
3. Connect the battery negative cable.
