Center Mounted Brake Lamp: Diagrams

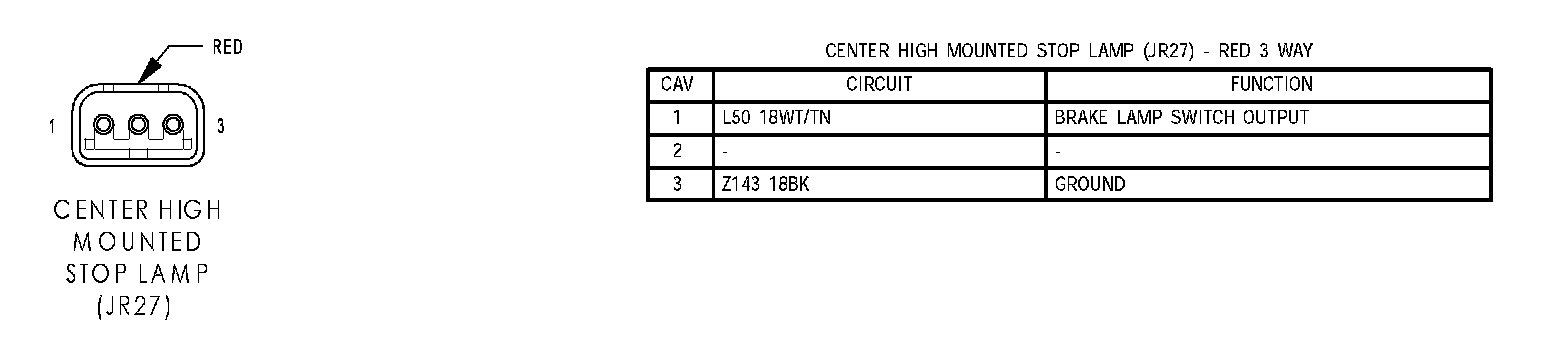

Center High Mounted Stop Lamp(JR27):

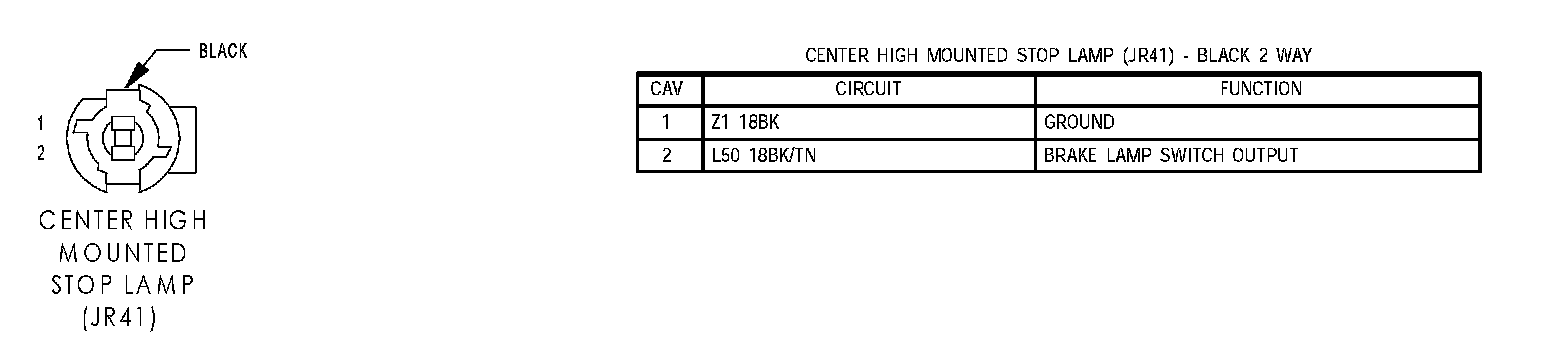

Center High Mounted Stop Lamp(JR41):
