Instrument Panel Outboard Bezel

INSTRUMENT PANEL OUTBOARD BEZEL

REMOVAL

1. Disconnect and isolate the battery negative remote cable.

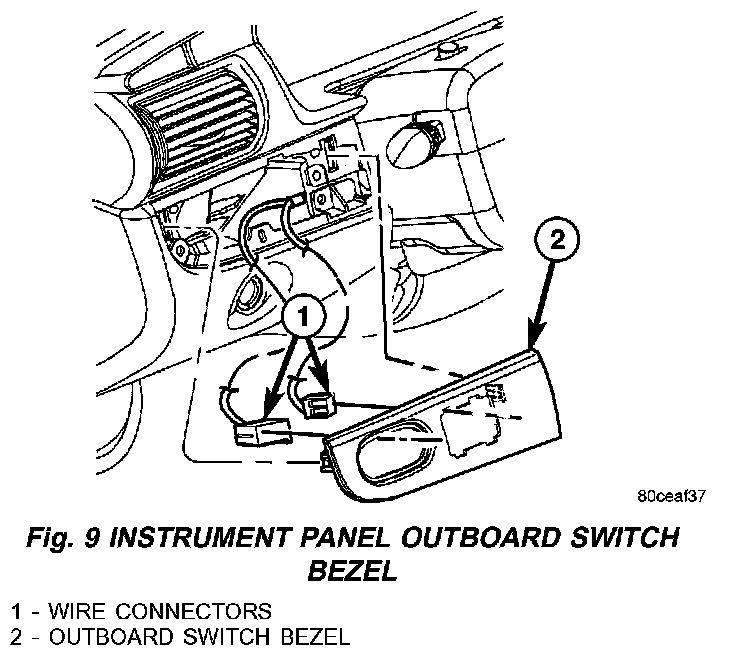

Fig. 9:

2. Using a trim stick (special tool #C-4755) or equivalent, gently pry out on the instrument panel outboard switch bezel (Fig. 9).
3. Disconnect the wire connector.
4. Remove bezel from vehicle.
5. Push in the sides of the power mirror switch to release it from the bezel.

INSTALLATION

1. Place the power mirror switch into the outboard switch bezel and firmly snap into place (Fig. 9).
2. Connect the wire connector.
3. Position the instrument panel outboard switch bezel over retaining slots and firmly snap into place.
4. Connect the battery negative remote cable.
