Instrument Panel Cluster Bezel

INSTRUMENT PANEL CLUSTER BEZEL

REMOVAL

1. Disconnect and isolate the battery negative remote cable.
2. Remove left end cover.
3. Using a trim stick (special tool #C-4755) or equivalent, gently pry up on the power mirror switch. Disconnect the switch and remove.
4. Using a trim stick or equivalent, gently pry up on instrument panel center trim bezel.
5. Disconnect the HVAC control connector.
6. Remove one screw from the trim bezel to the right of the steering column and remove trim by unsnapping clips.
7. Remove the one screw from the passenger side trim bezel and remove trim by unsnapping clips.
8. Remove five screws to left lower instrument panel trim.

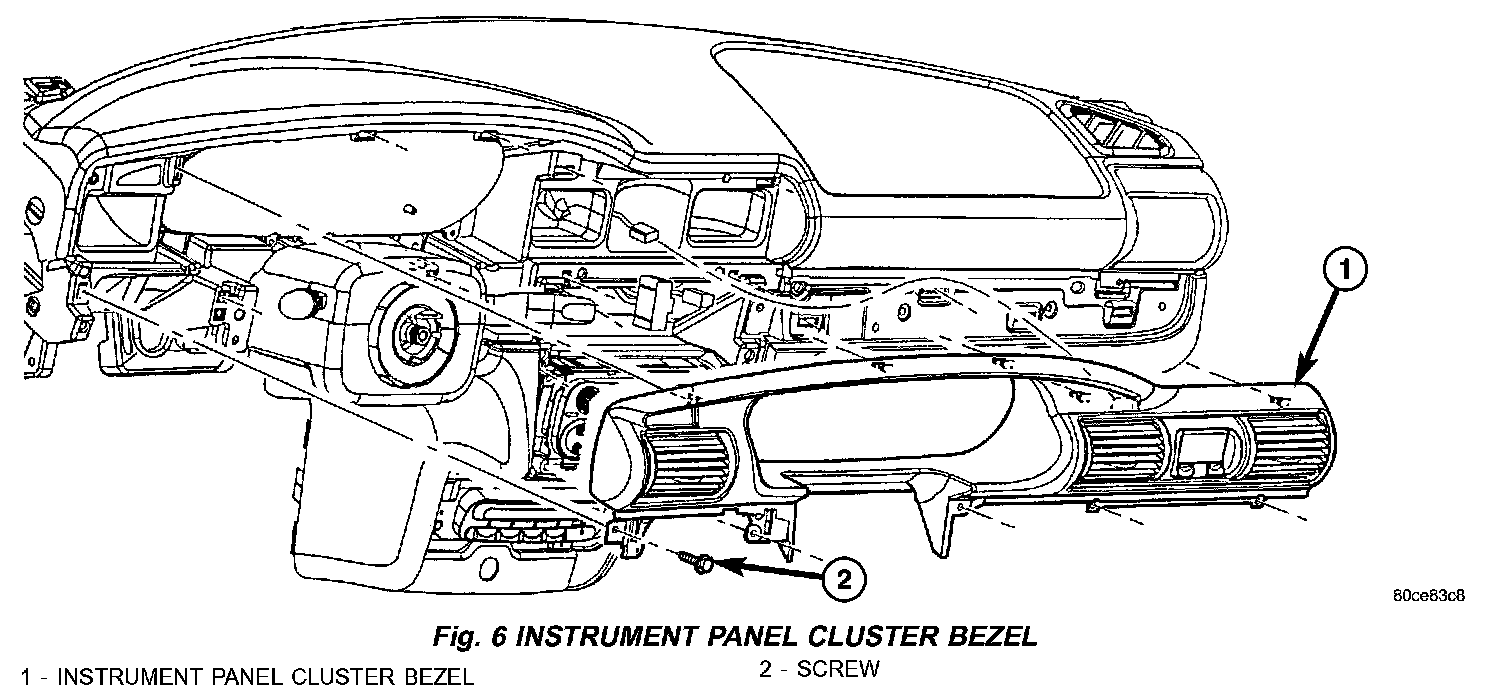

Fig. 6:

9. Remove the four screws to the cluster bezel (Fig. 6). Using a trim stick or equivalent, gently pry out the cluster bezel.
10. If the vehicle is equipped with a Compass Mini-Trip Computer (CMTC/Traveler), disconnect the module and then remove the cluster bezel assembly.

INSTALLATION

1. Position the cluster bezel and if so equipped, connect the traveler connector, then snap the cluster bezel into position (Fig. 6).
2. Install the four screws to the cluster bezel.
3. Install the five screws to the left lower instrument panel trim.
4. Connect the mirror switch connector and firmly snap it into place.
5. Install the one screw to the trim bezel to the right side of the steering column.
6. Firmly snap into place and then install one screw to the passenger side trim bezel.
7. Connect the HVAC control connectors.
8. Position the center bezel over the retaining slots and firmly snap instrument panel center bezel into place.
9. Install the left end cover.
10. Connect the battery negative cable.
