Instrument Panel Center Bezel

INSTRUMENT PANEL CENTER BEZEL

REMOVAL

1. Disconnect and isolate the battery negative remote cable.

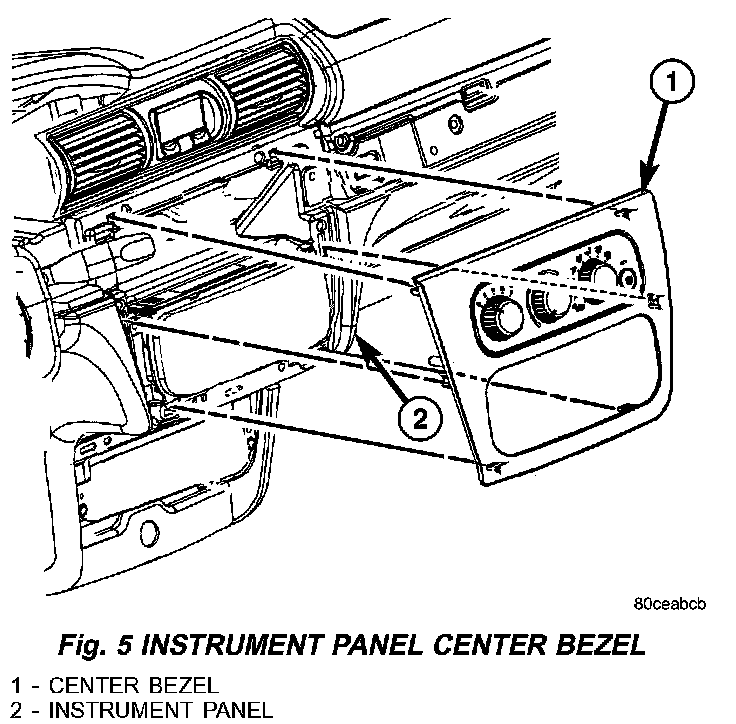

Fig. 5:

2. Using a trim stick (special tool #C-4755) or equivalent, gently pry out on the edge of the instrument panel center bezel and pull outward (Fig. 5).
3. Disconnect the wire connector to the HVAC control.
4. Remove the instrument panel center bezel from the vehicle.

INSTALLATION

The HVAC control is mounted to the instrument panel center bezel. If replacing the center bezel or the HVAC control, it must be removed from the center bezel. Remove the six retaining screws to the HVAC control.

1. Connect the wire connectors to the HVAC control.
2. Position the center bezel over the retaining slots and firmly snap the instrument panel center bezel into place (Fig. 5).
3. Connect the battery negative remote cable.
