Front Mount

FRONT MOUNT

REMOVAL
1. Raise vehicle.

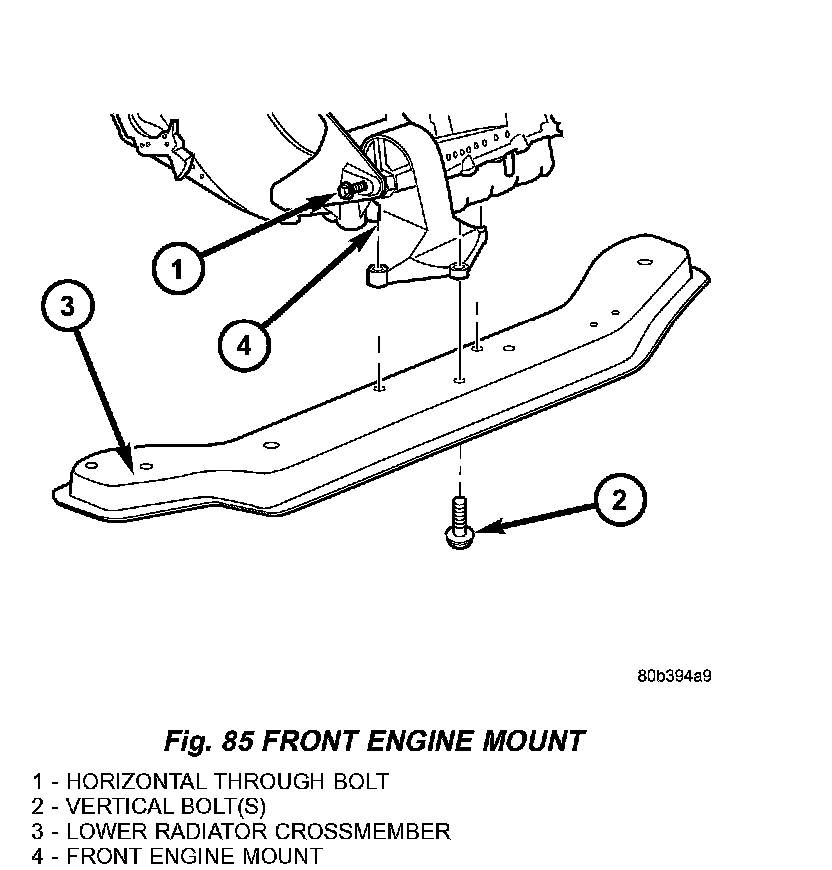

2. Remove front mount to bracket horizontal through bolt (Fig. 85).
3. Remove front mount vertical bolts (Fig. 85).
4. Remove front mount.

INSTALLATION
1. Position front mount on lower radiator crossmember.
2. Loose install front mount to bracket through bolt.
3. Install front mount vertical bolts. Tighten bolts to 61 Nm (45 ft. lbs.) (Fig. 85).
4. Tighten horizontal through bolt to 61 Nm (45 ft. lbs.) (Fig. 85).
5. Lower vehicle.
