Radiator Cooling Fan: Service and Repair
ELECTRIC FAN MOTOR TESTREMOVAL
1. Remove upper radiator crossmember.

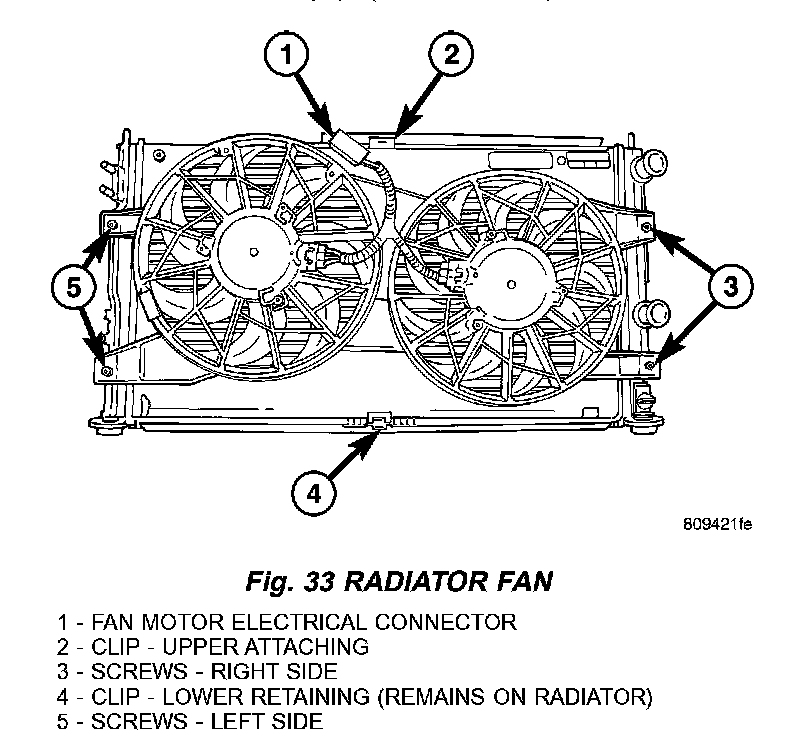

2. Disconnect radiator fan electrical connector (Fig. 33).
3. Remove fasteners and upper clip attaching fan assembly to radiator (Fig. 33).
4. Remove radiator fan assembly by lifting upward.
INSPECTION
There are no repairs to be made to the fan. If the fan is warped, cracked, or otherwise damaged, it must be replaced with only the recommended replacement part for adequate strength, performance and safety.
INSTALLATION
1. Install radiator fan to radiator. Install retaining clip and tighten fasteners to 5 Nm (45 inch lbs.) (Fig. 33).
2. Connect radiator fan electrical connector.
3. Install upper radiator crossmember.
