Home
>>
Chrysler
>>
2004
>>
Sebring Convertible V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Group 8W-60 (Power Windows)
Group 8W-60 (Power Windows)

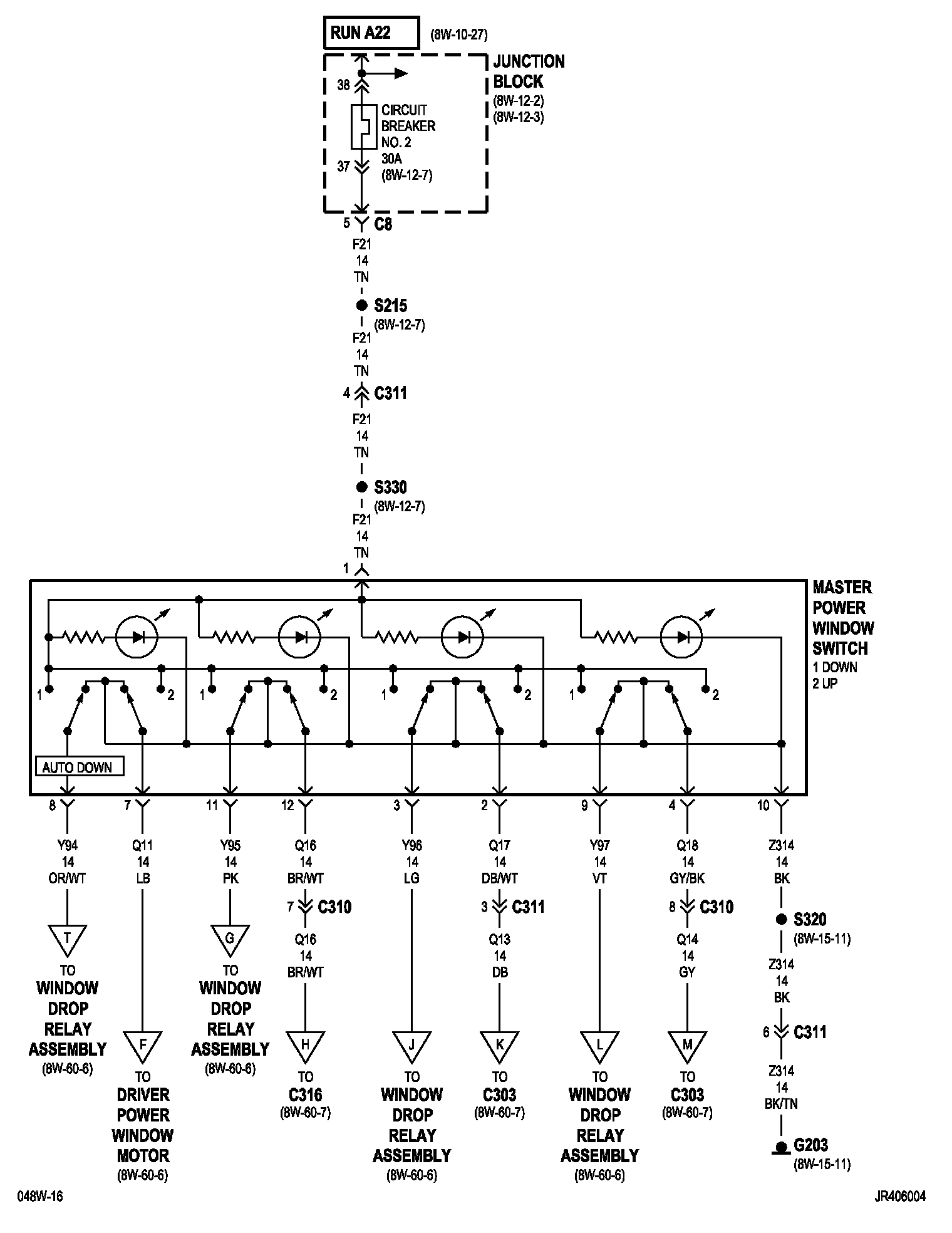

8w-60-2 (JR41):

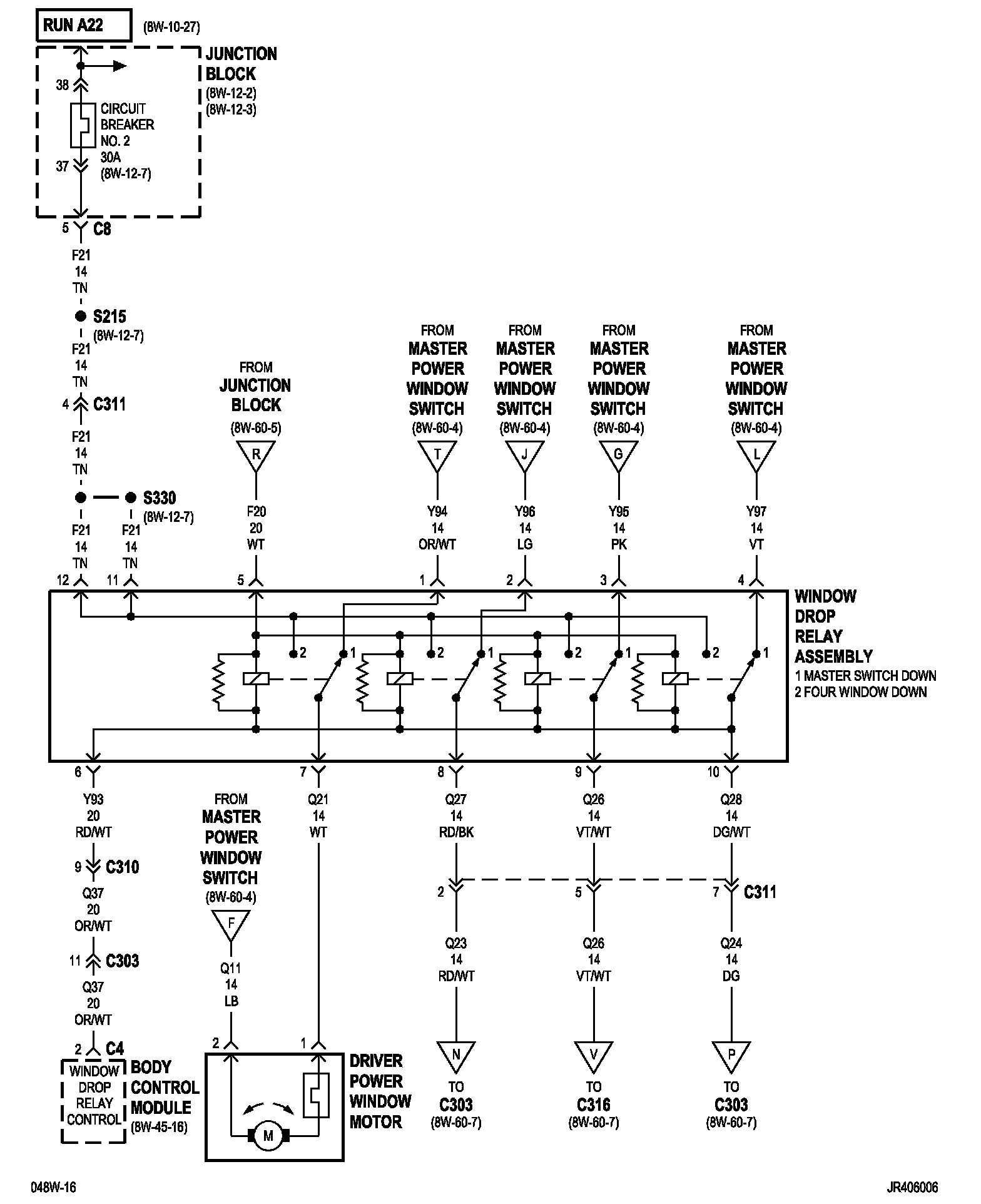

8w-60-3 (JR41):

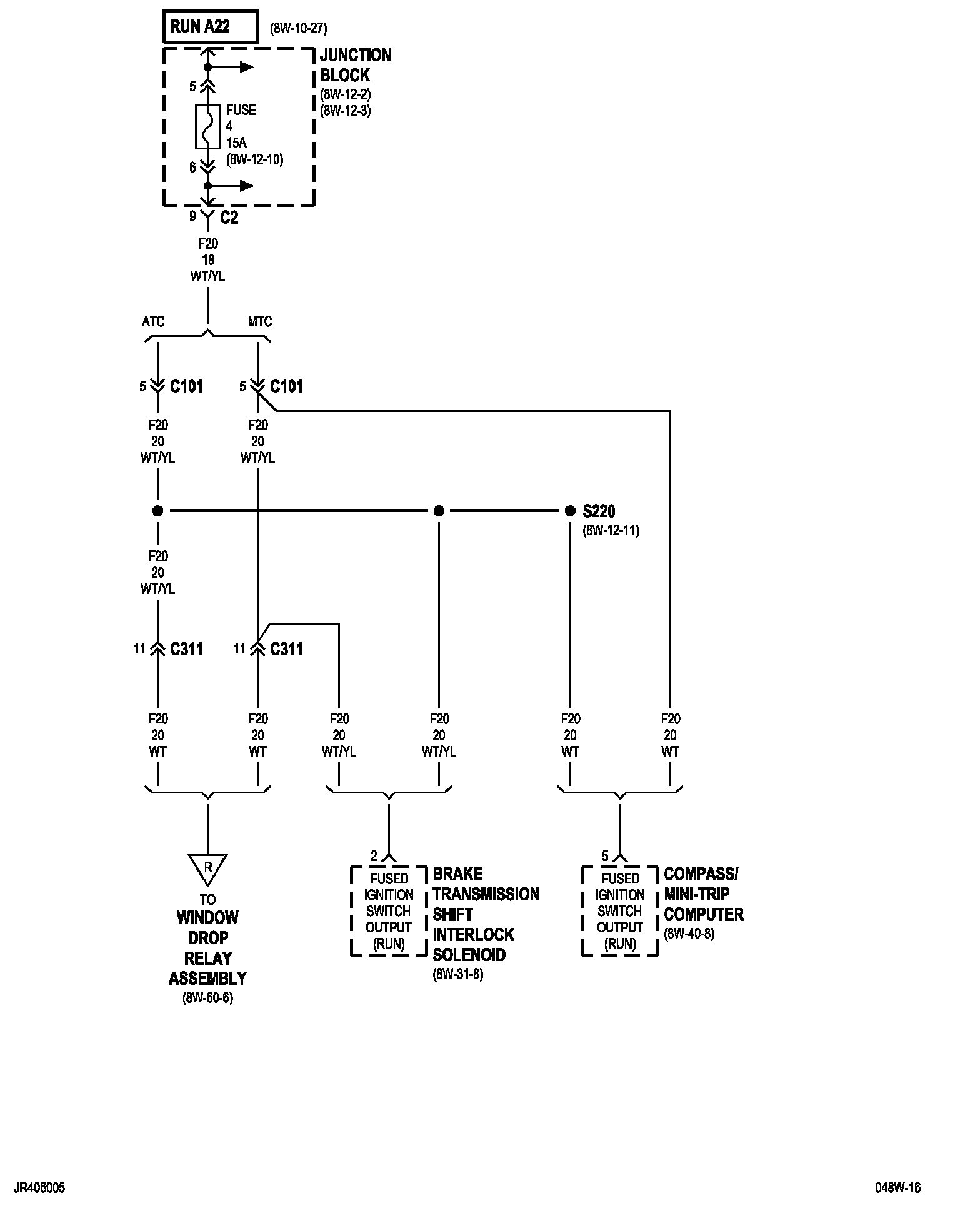

8w-60-4 (JR27):

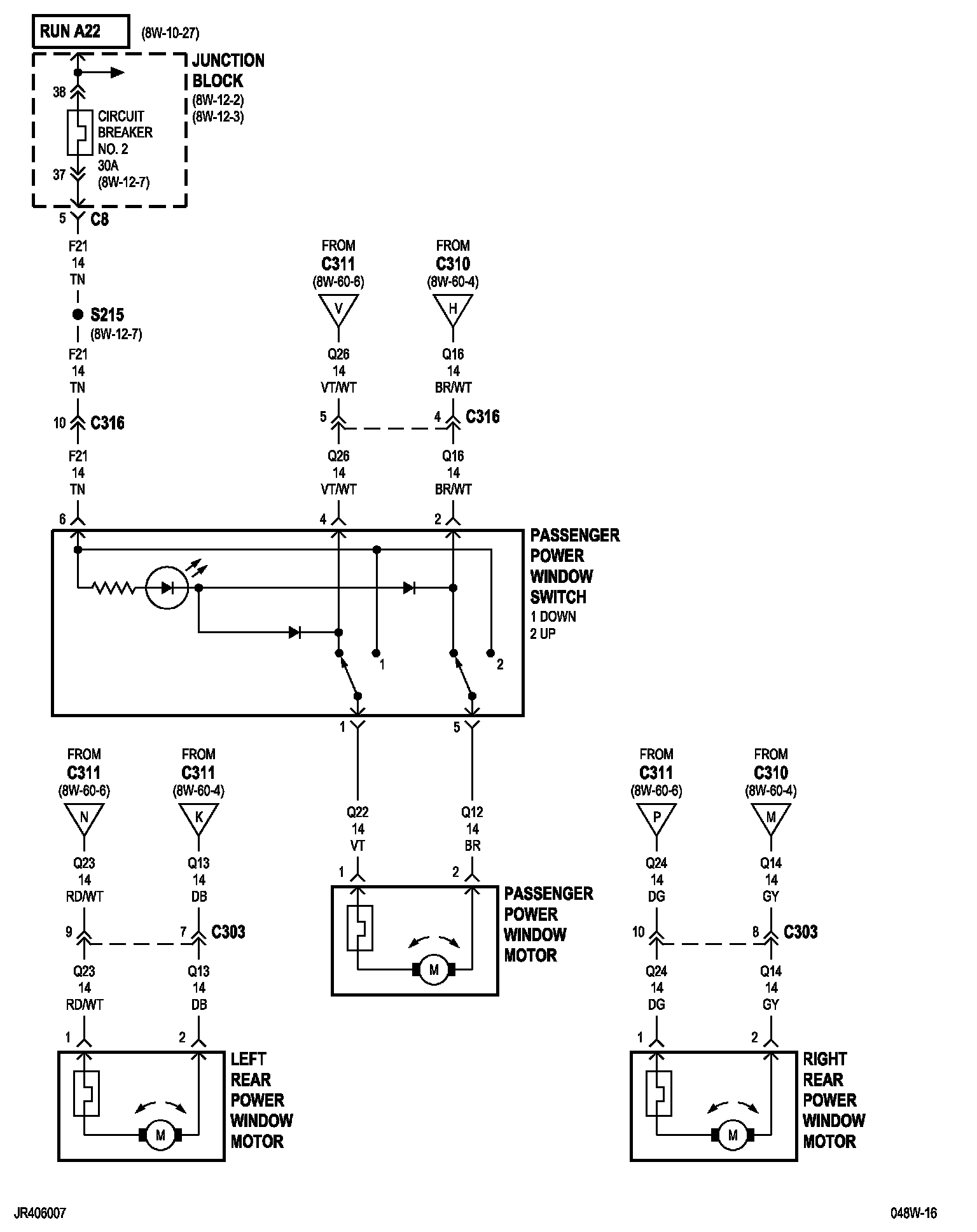

8w-60-5 (JR27):

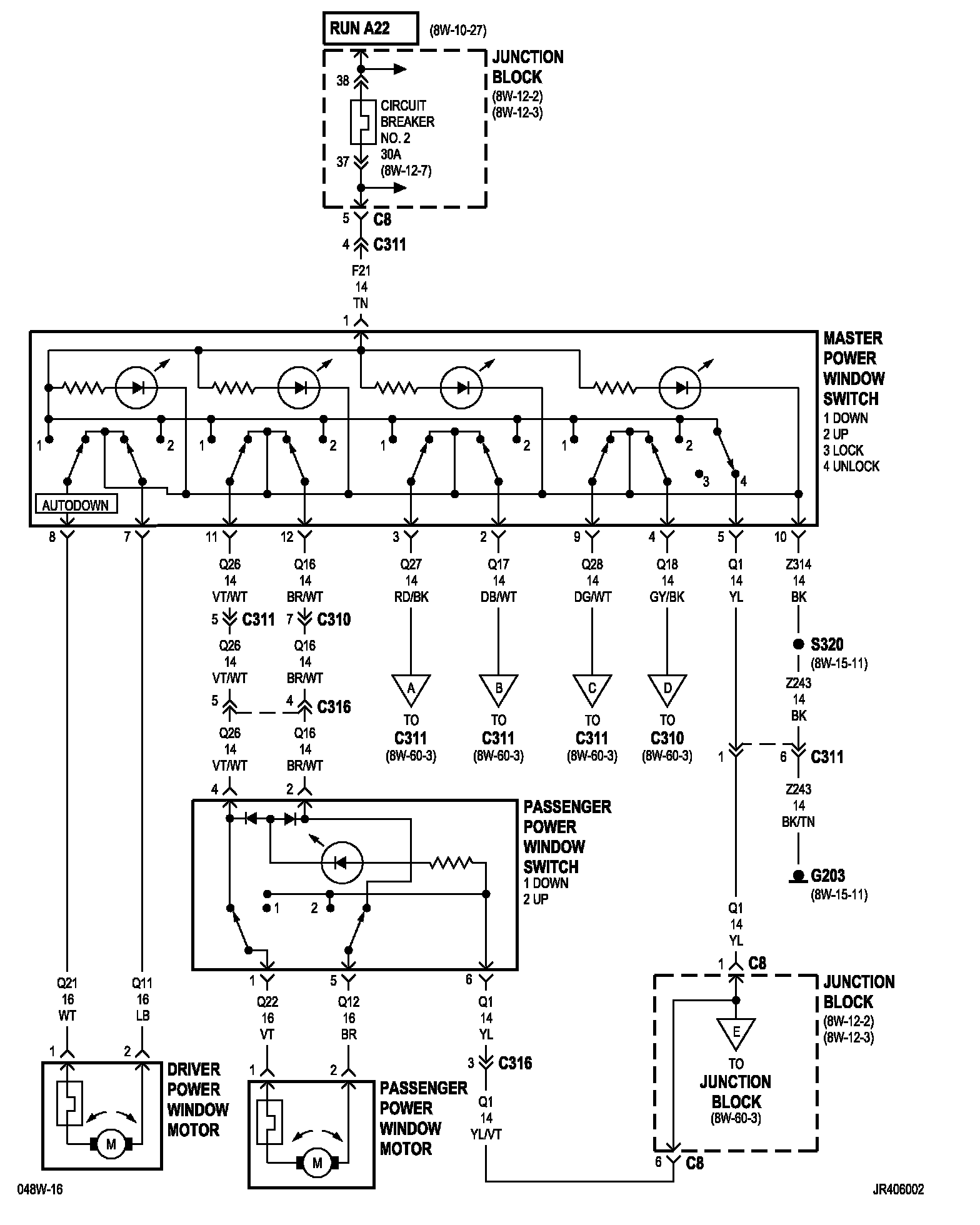

8w-60-6 (JR27):

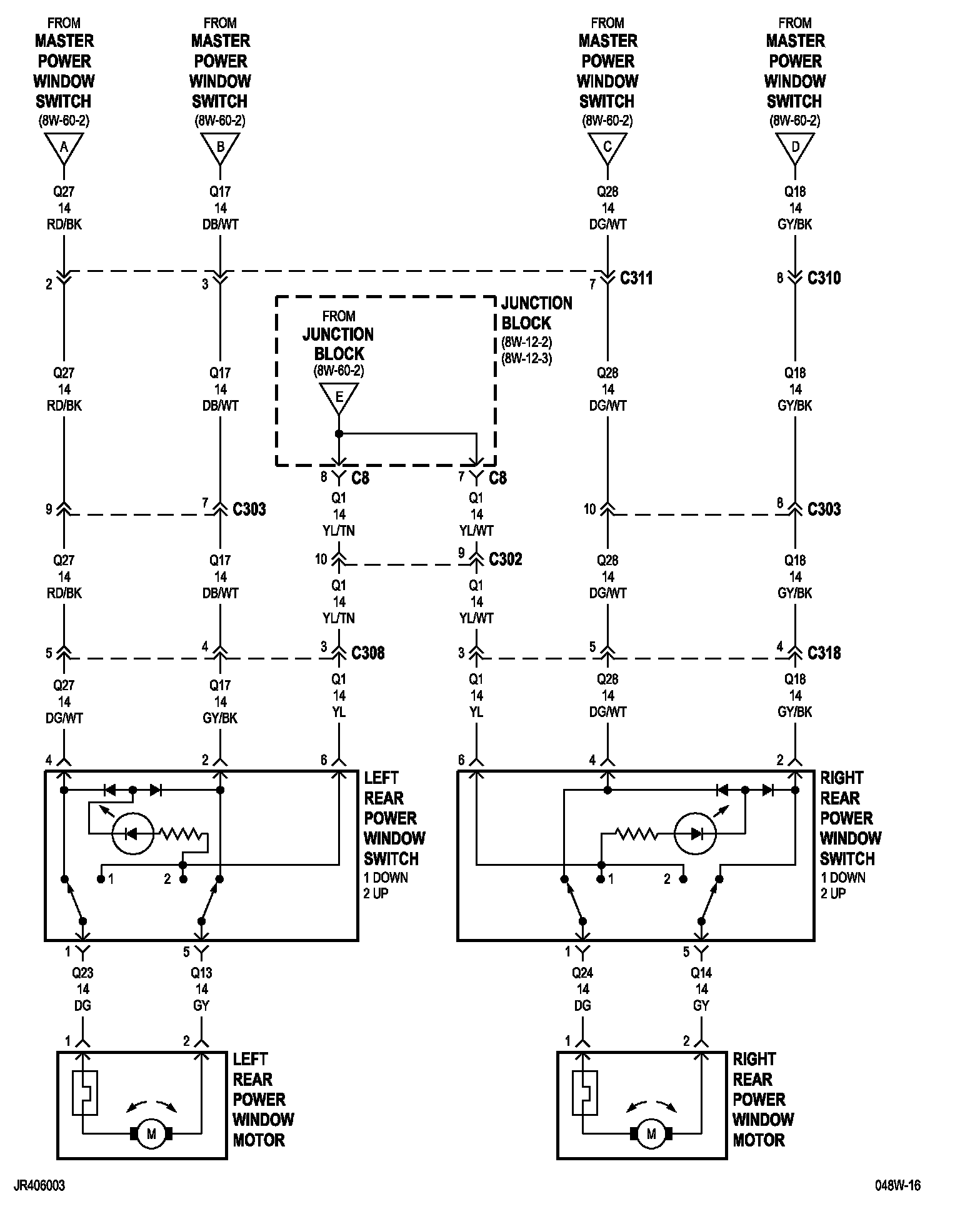

8w-60-7 (JR27):
