Group 8W-12 (Junction Block)

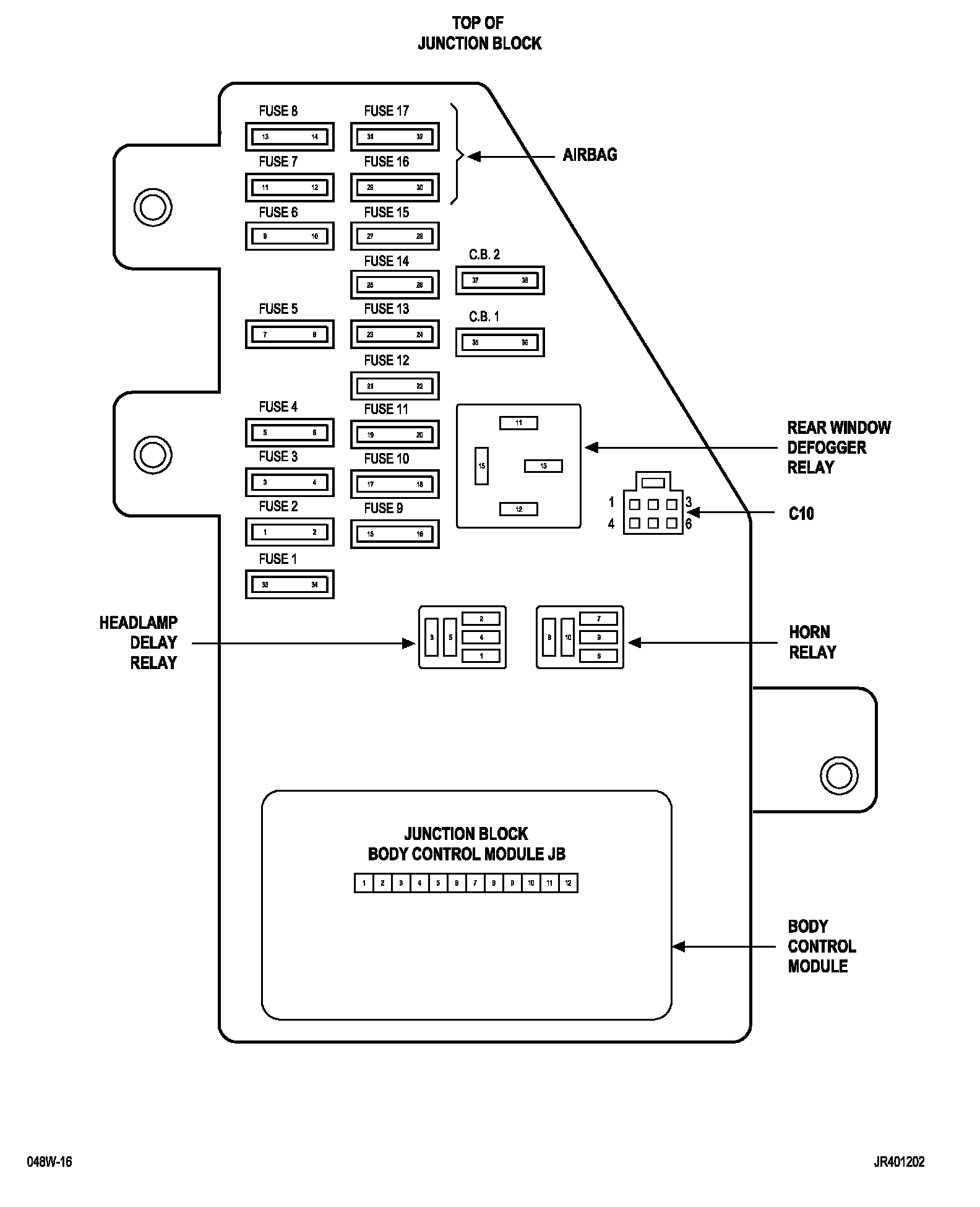

8w-12-2 (Top Of Junction Block):

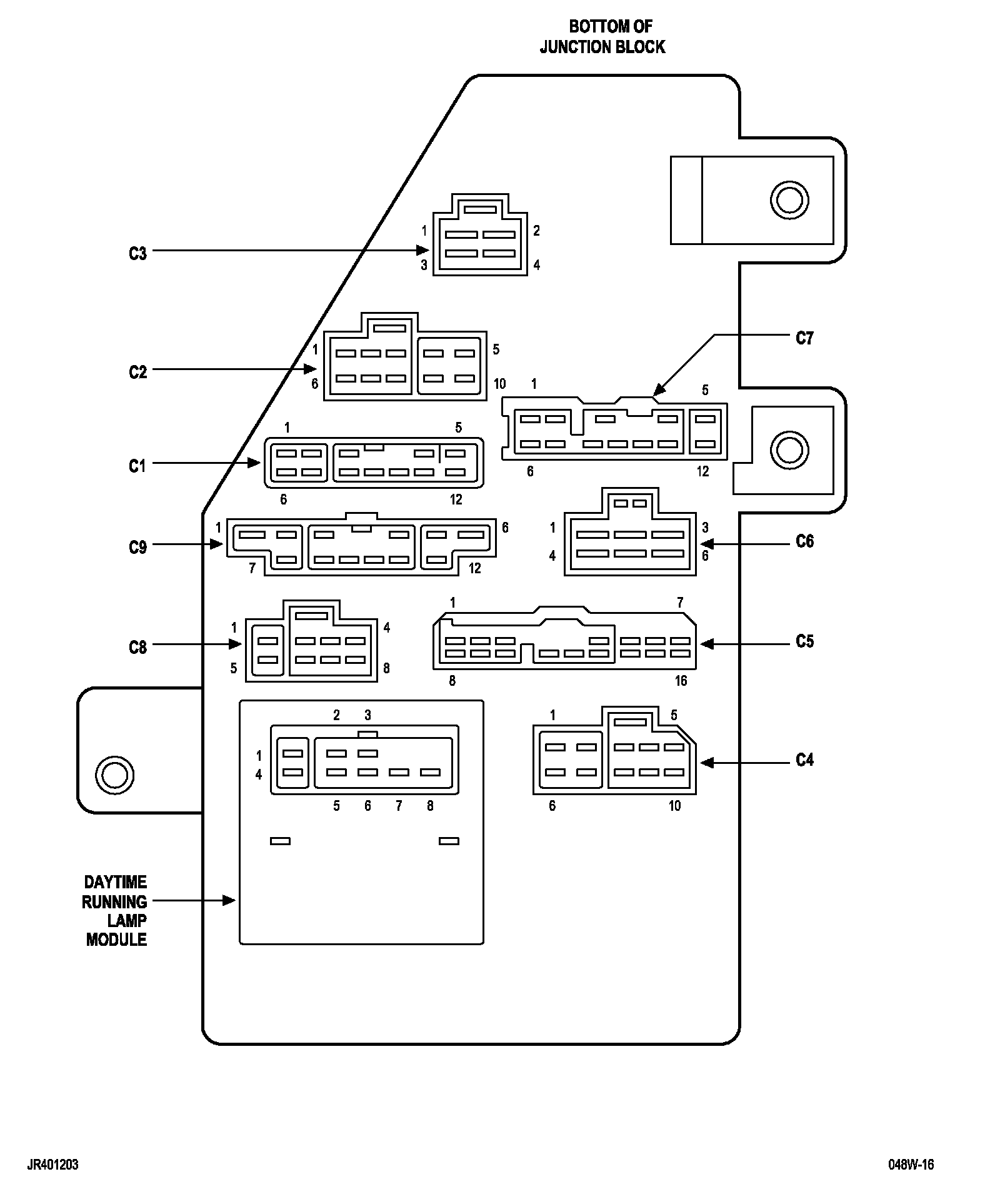

8w-12-3 (Bottom Of Junction Block):

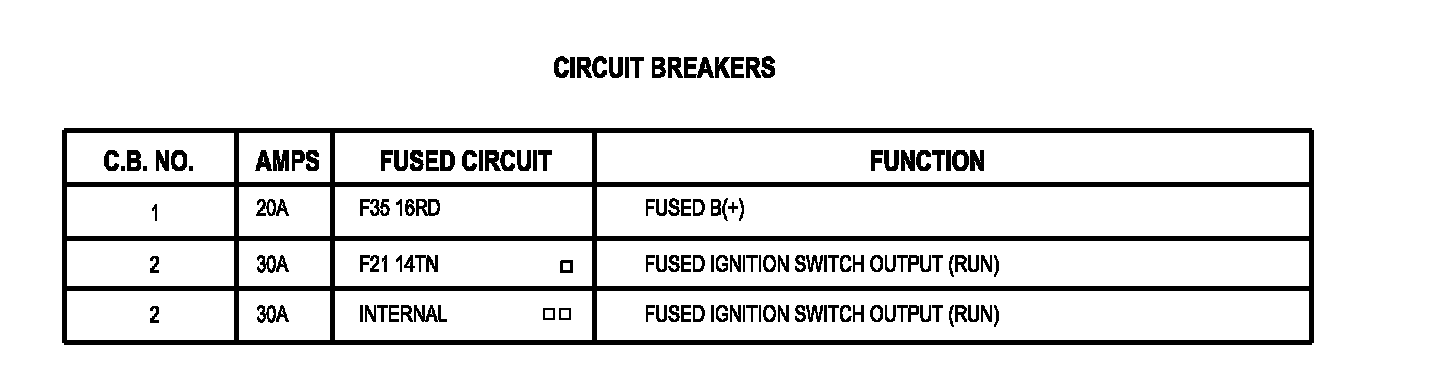

Circuit Breakers:
