Home >> Chrysler >> 2004 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connectors >> Figure 42

Figure 42

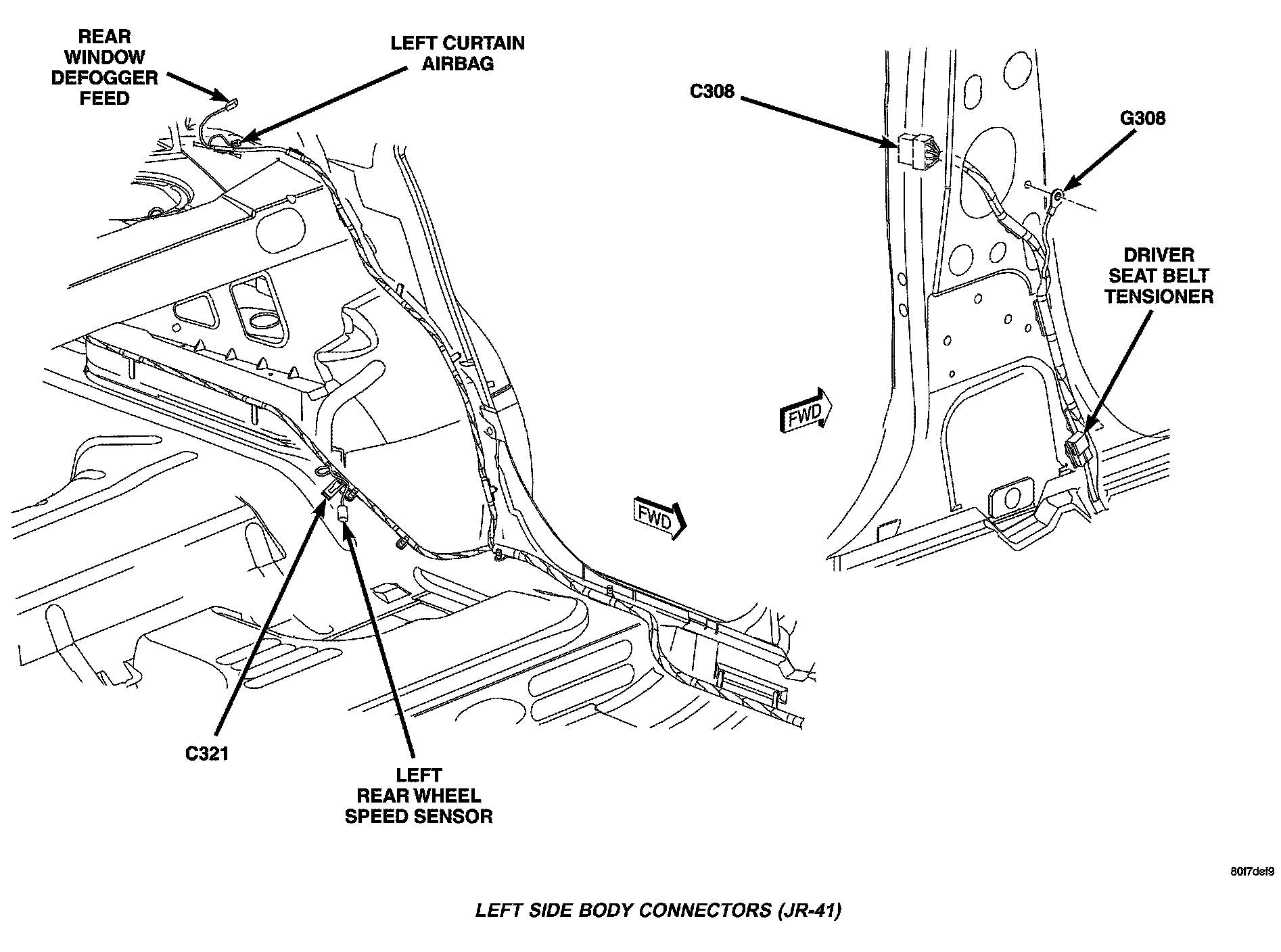

Left Side Body Connectors(JR-41):
