Turn Signal Lamp

Left Park/Turn Signal Lamp:






Left Turn Lamp(Chrysler/Except JR41 Dodge):






Right Park/Turn Signal Lamp:

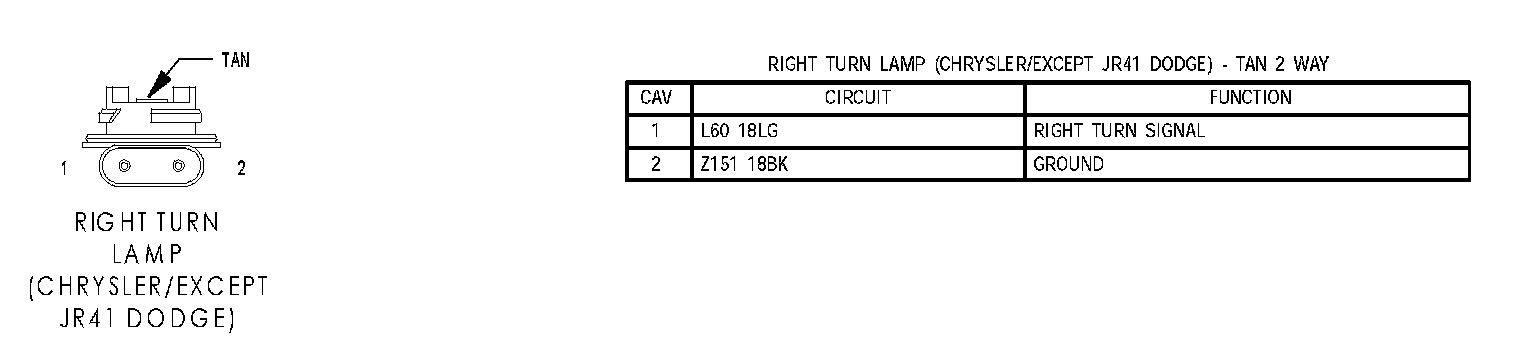

Right Turn Lamp(Chrysler/Except JR41 Dodge):
