Transmission Speed Sensor, A/T

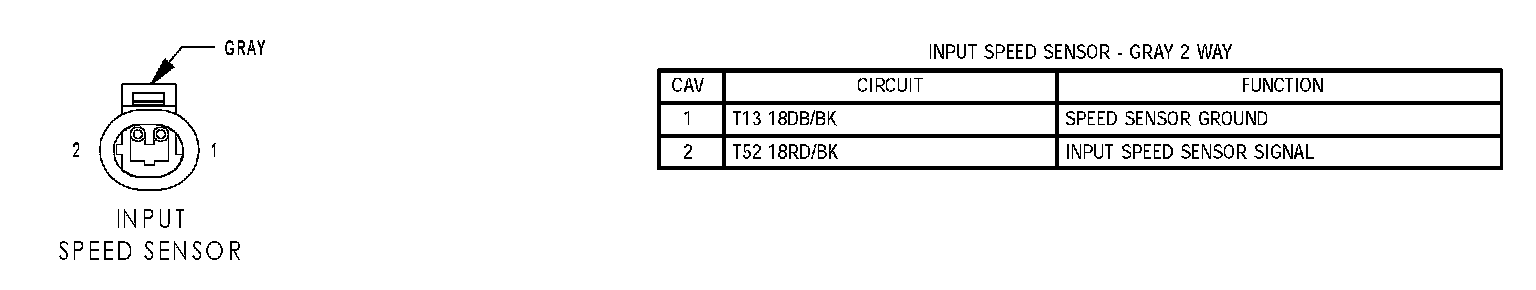

Input Speed Sensor:



Output Speed Sensor:

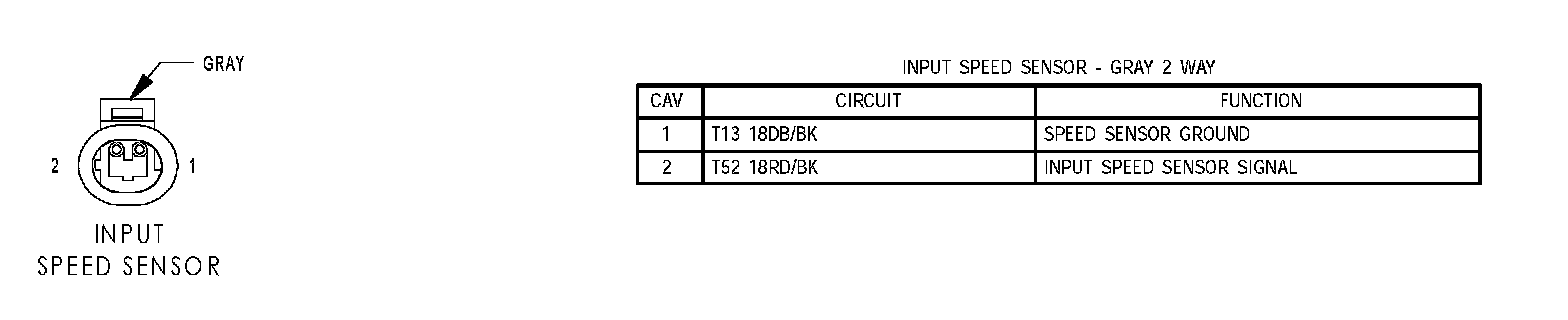

Input Speed Sensor:



Output Speed Sensor:
