Seat Belt Buckle Switch
Seat Belt Buckle Switch

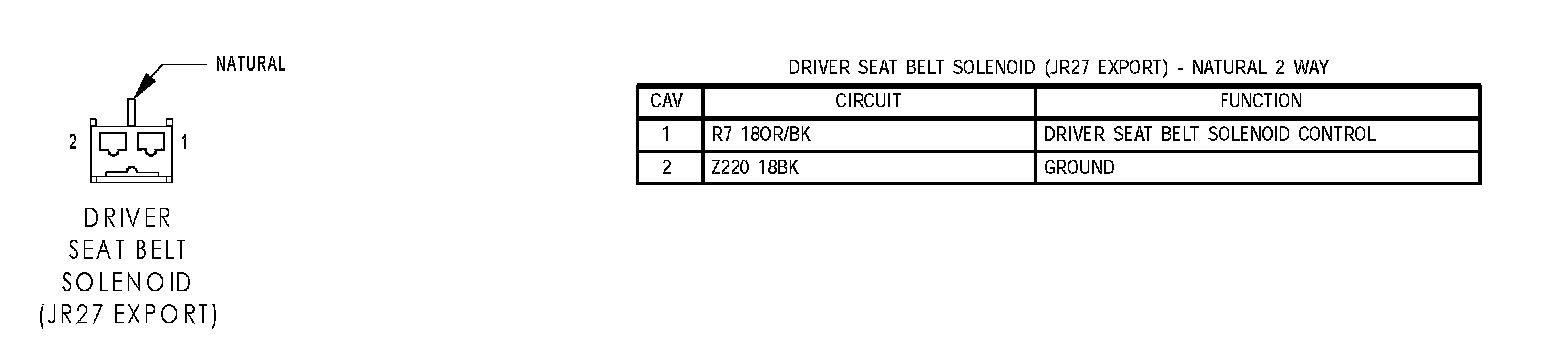

Driver Seat Belt Solenoid(JR27 Export):

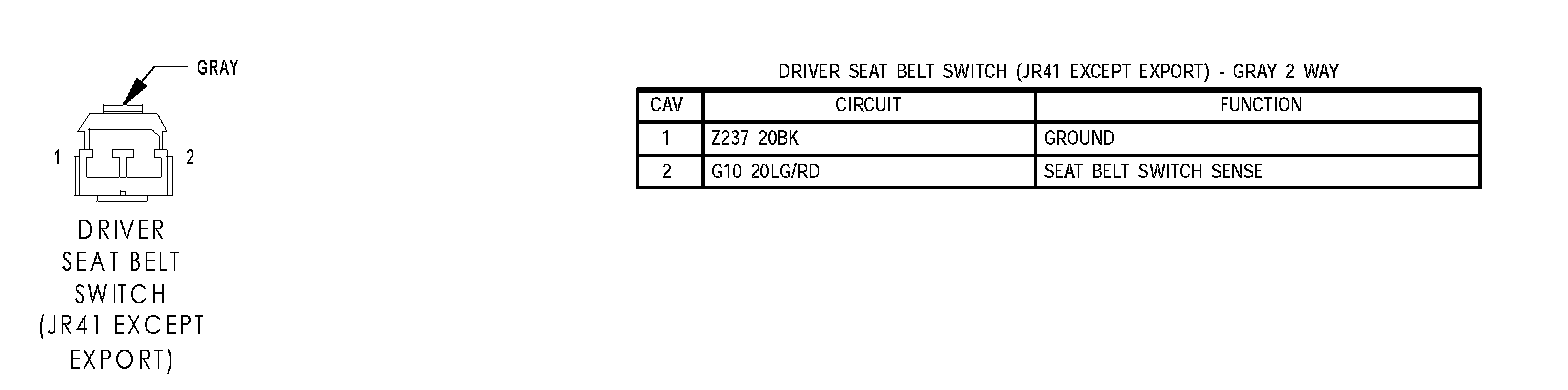

Driver Seat Belt Switch(JR41 Except Export):

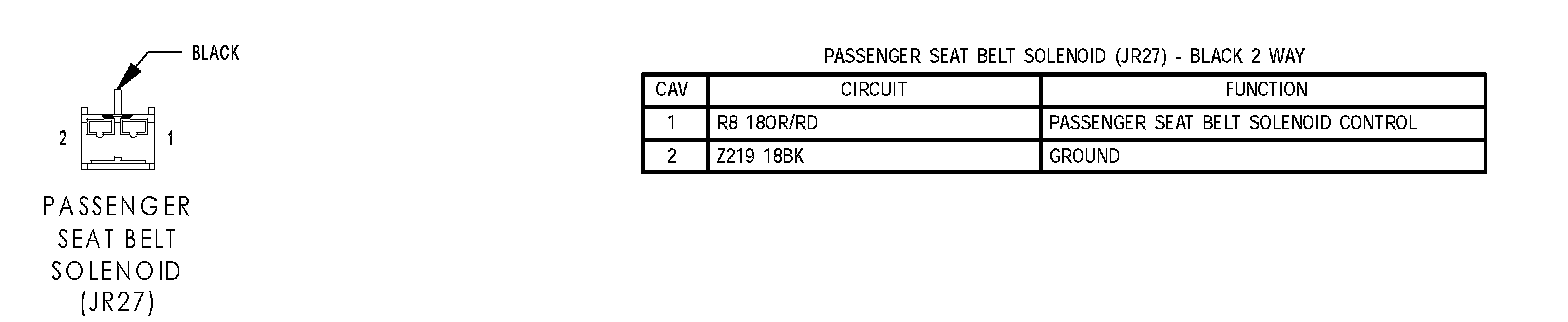

Passenger Seat Belt Solenoid(JR27):
