Power Window Switch
Power Window Switch

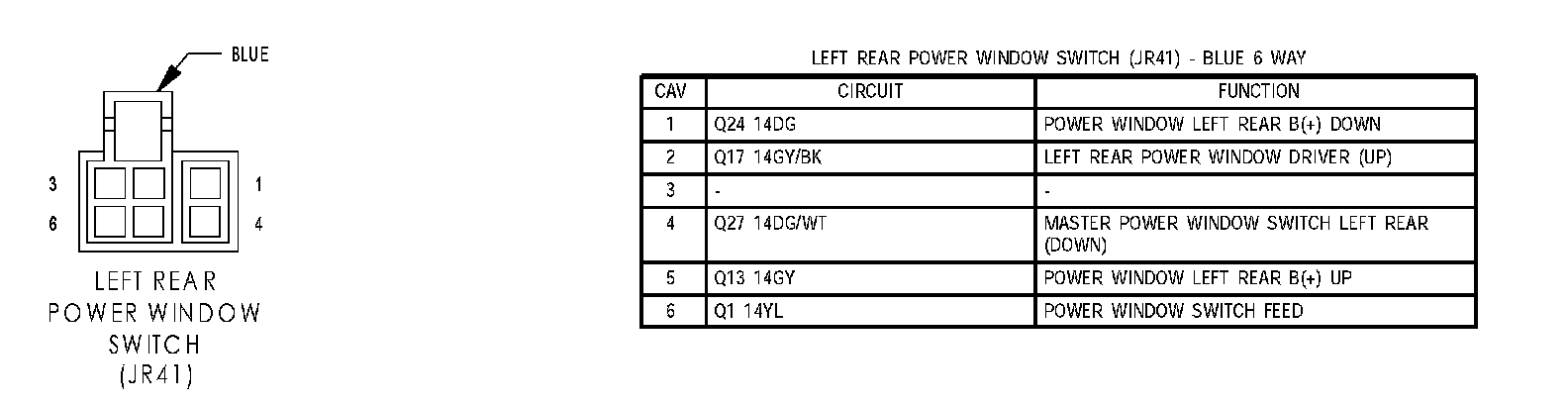

Left Rear Power Window Switch(JR41):

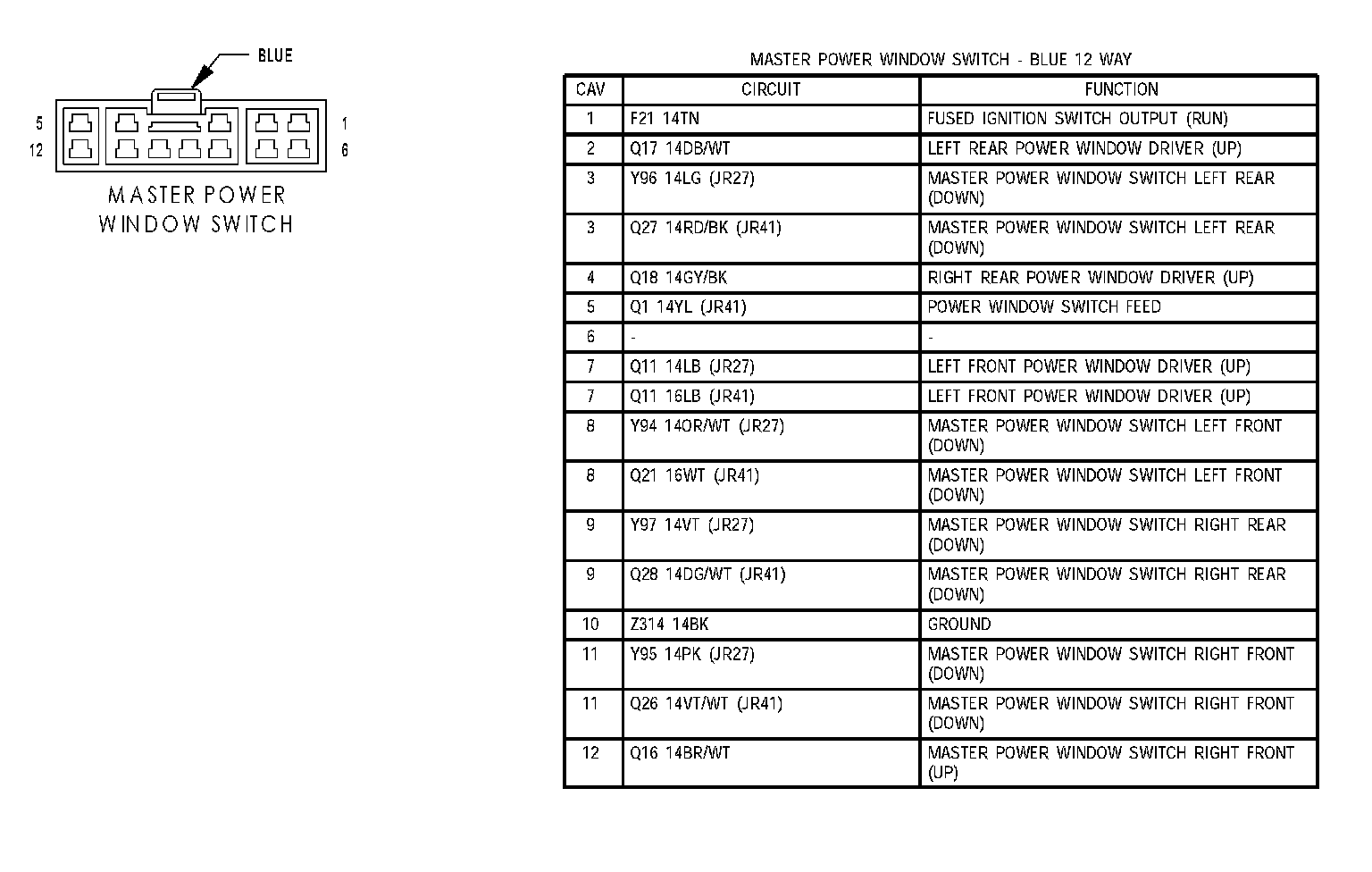

Master Power Window Switch:

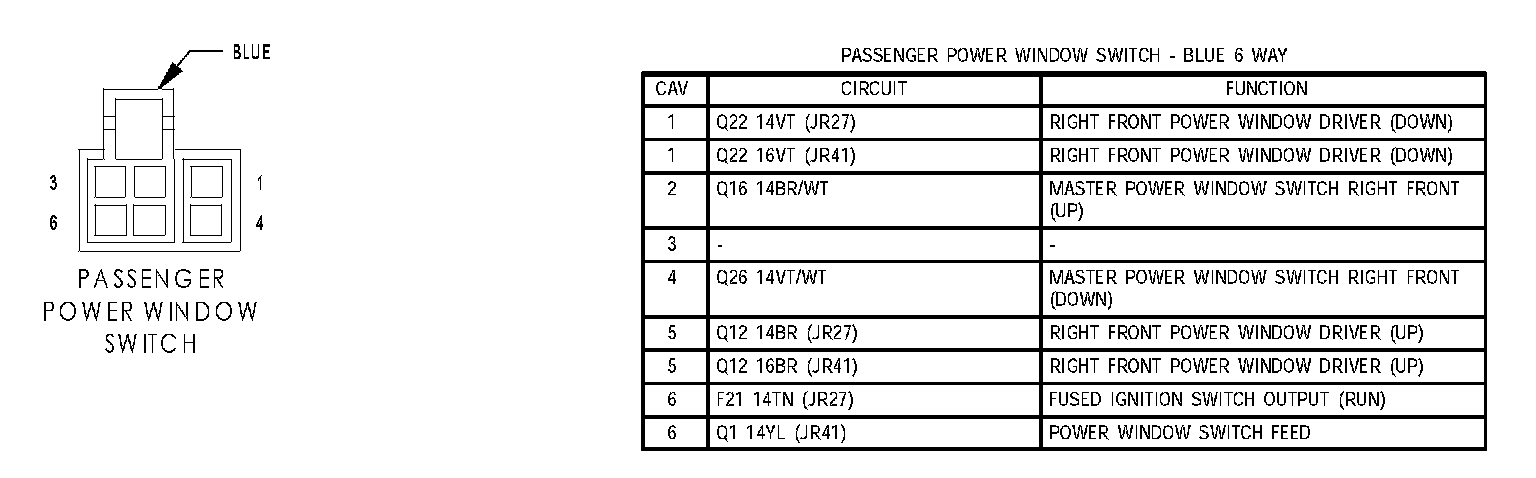

Passenger Power Window Switch:

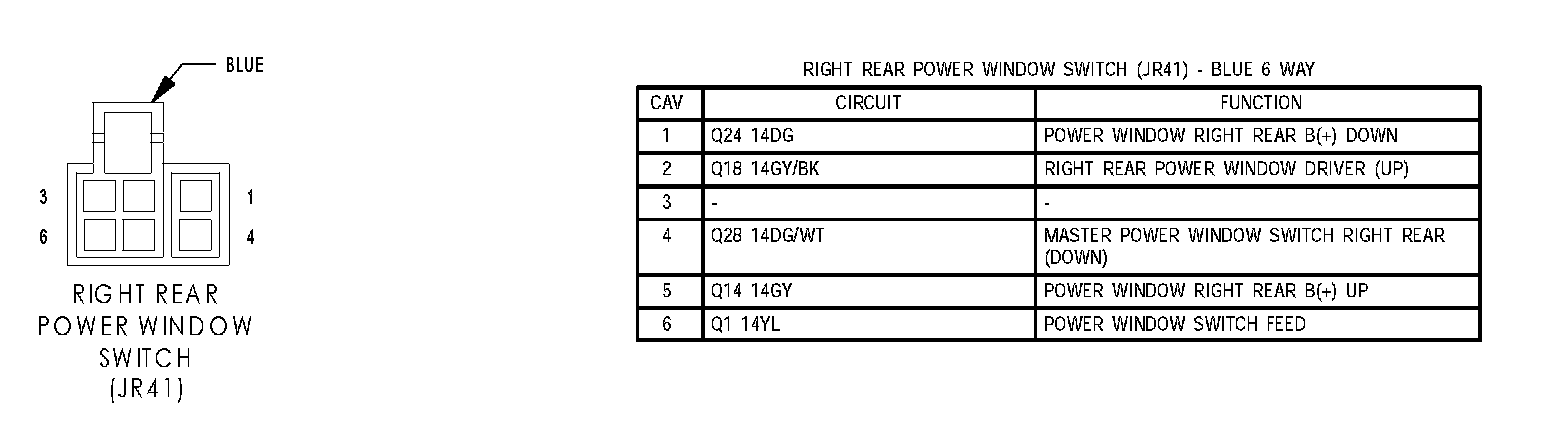

Right Rear Power Window Switch(JR41):
