Power Window Motor

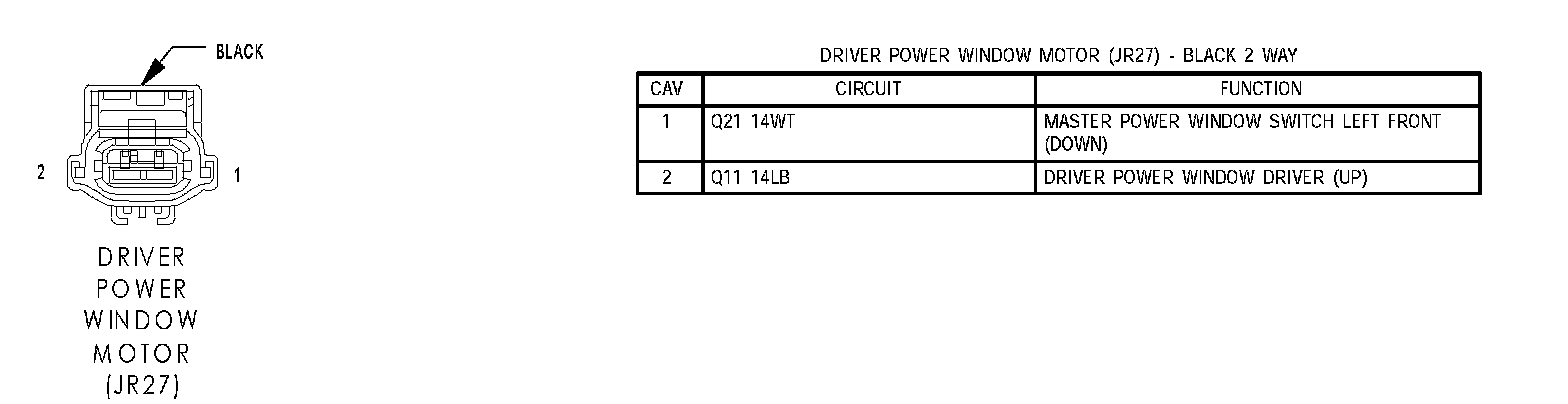

Driver Power Window Motor(JR27):

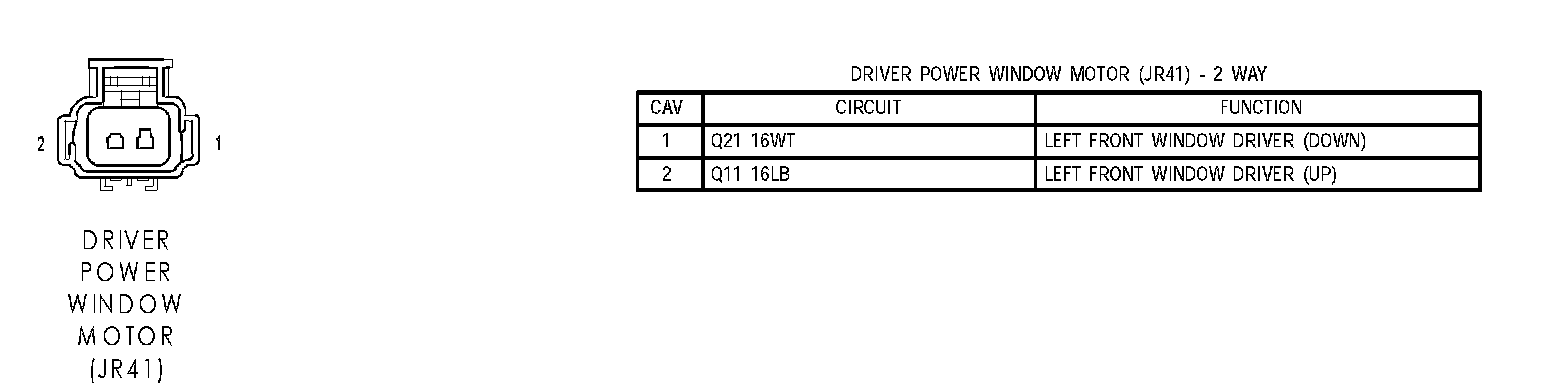

Driver Power Window Motor(JR41):

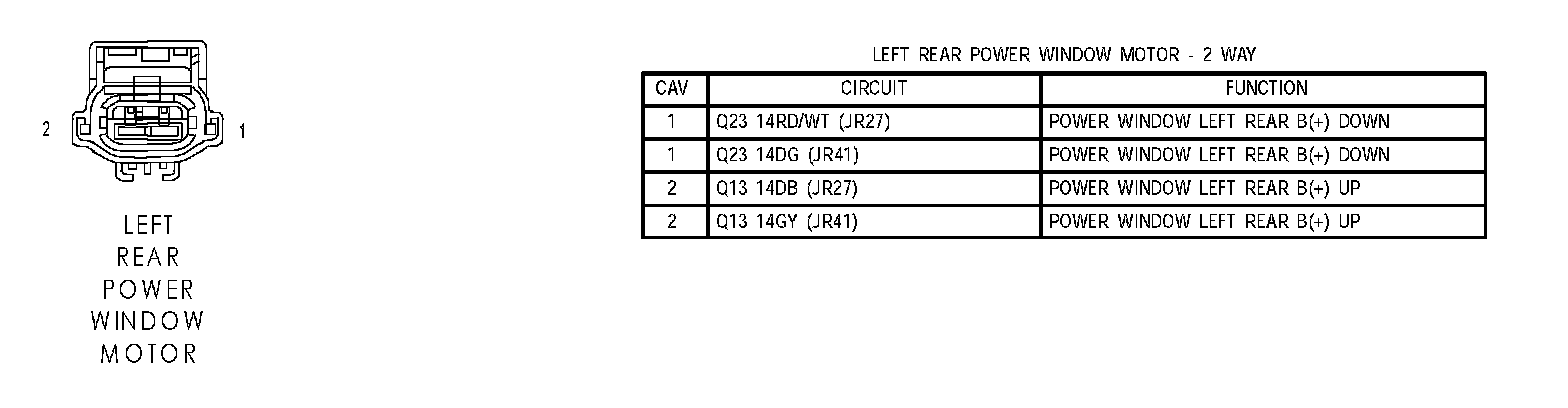

Left Rear Power Window Motor:

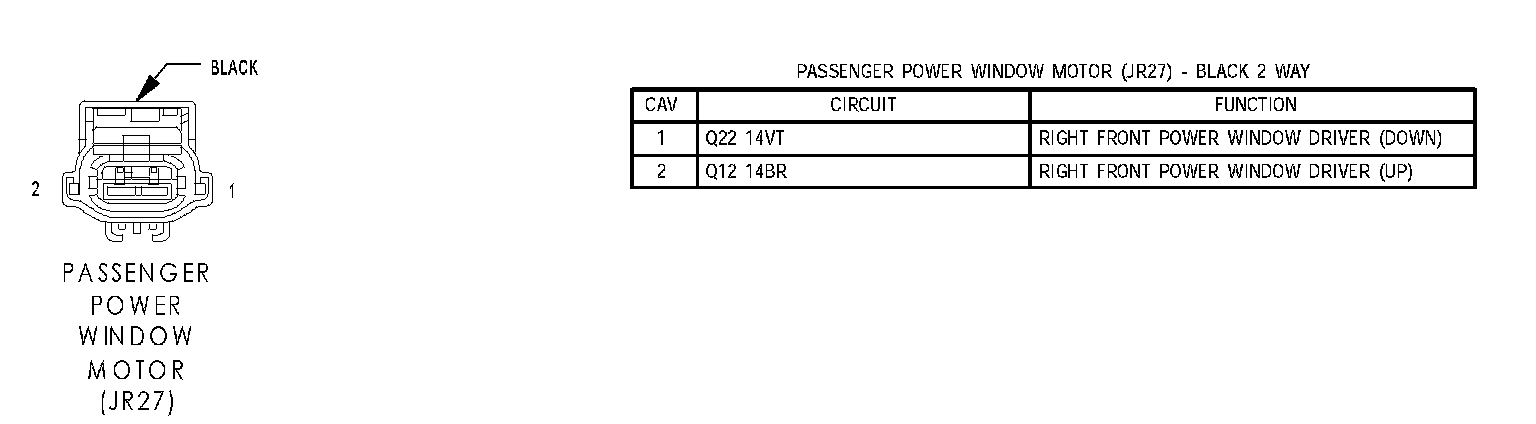

Passenger Power Window Motor(JR27):






Passenger Power Window Motor(JR41):

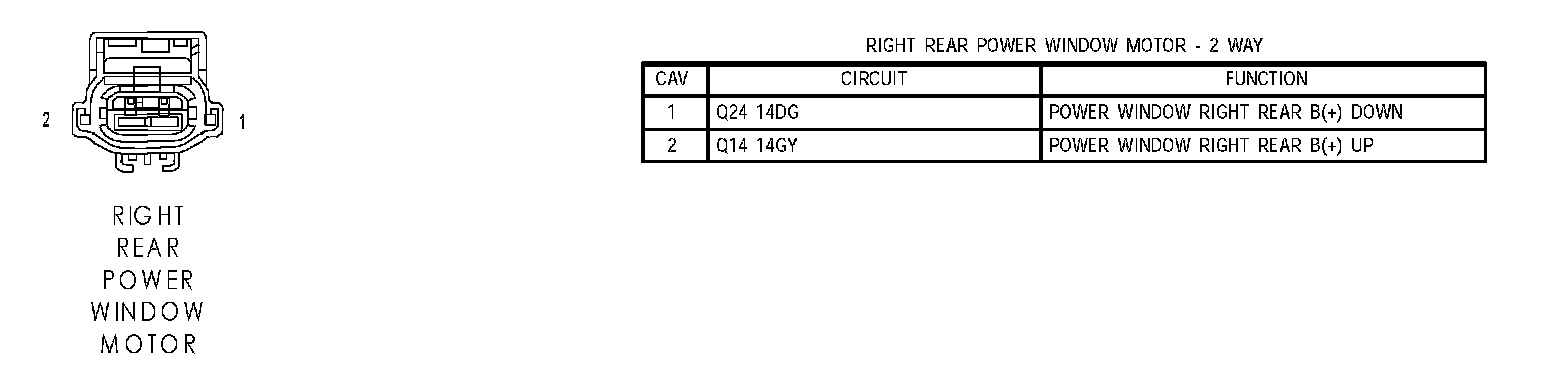

Right Rear Power Window Motor:
