Home >> Chrysler >> 2004 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch

Power Seat Switch

Power Seat Switch(JR27):

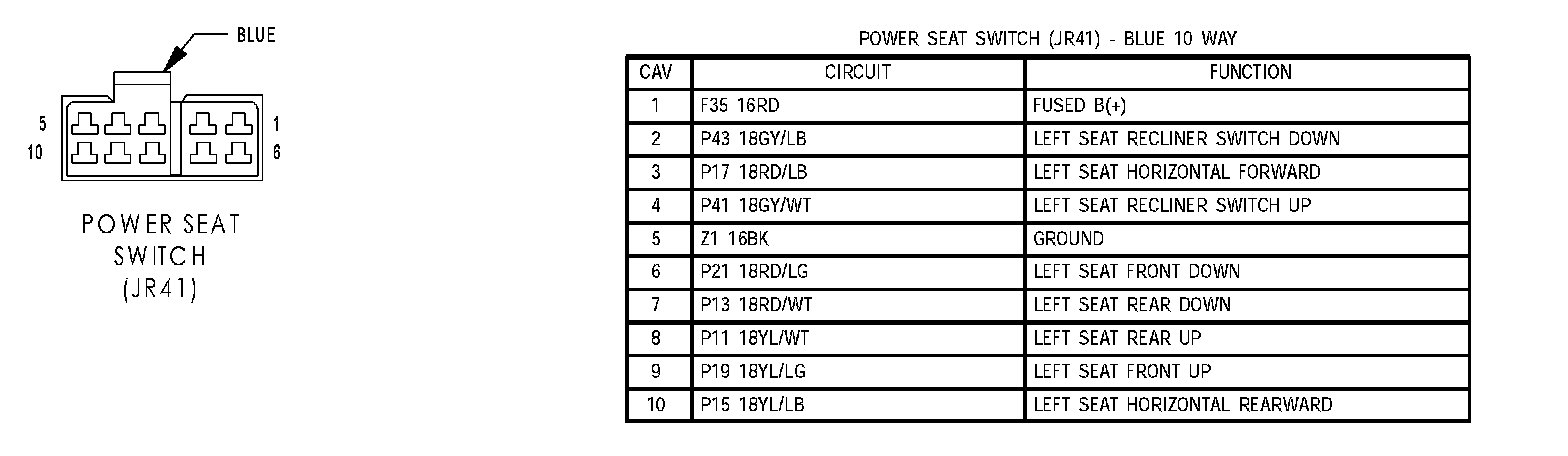

Power Seat Switch(JR41):
