Power Seat Motor

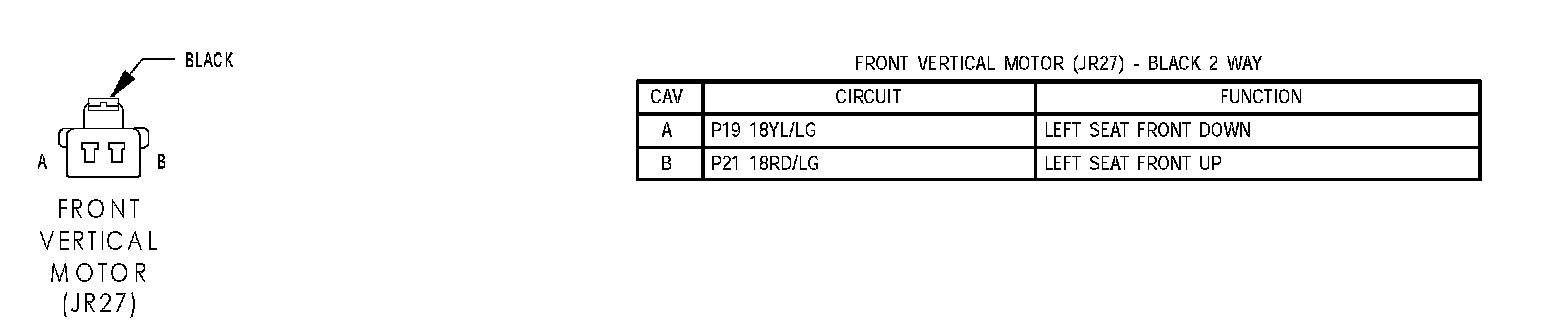

Front Vetical Motor(JR27):

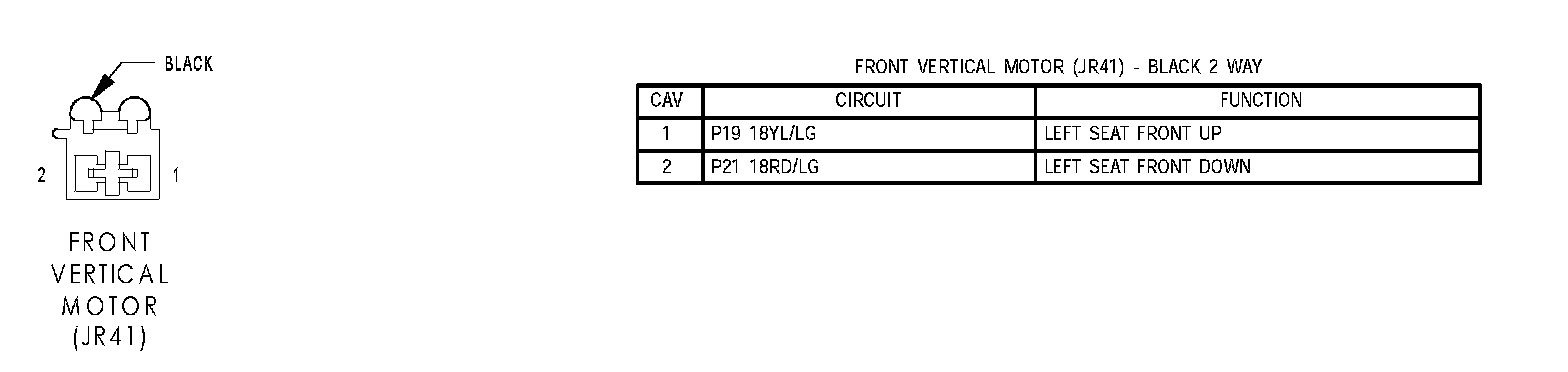

Front Vertical Motor(JR41):

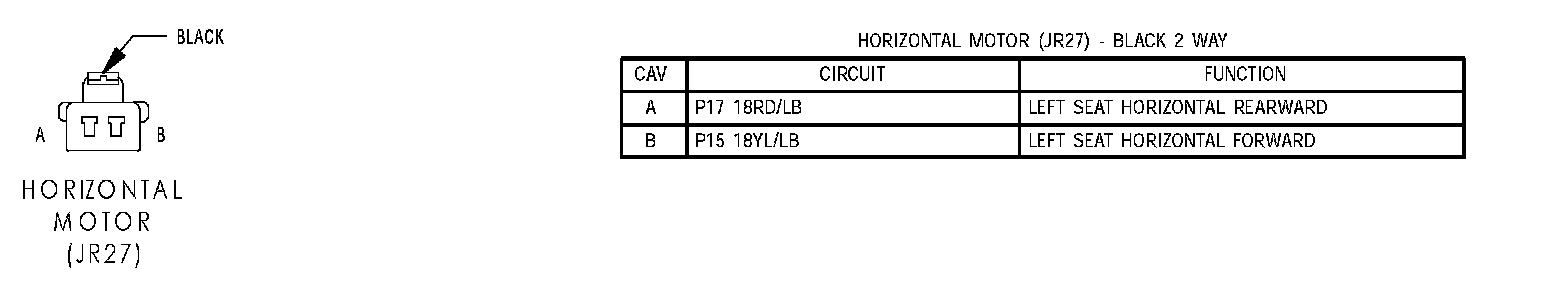

Horizontal Motor(JR27):

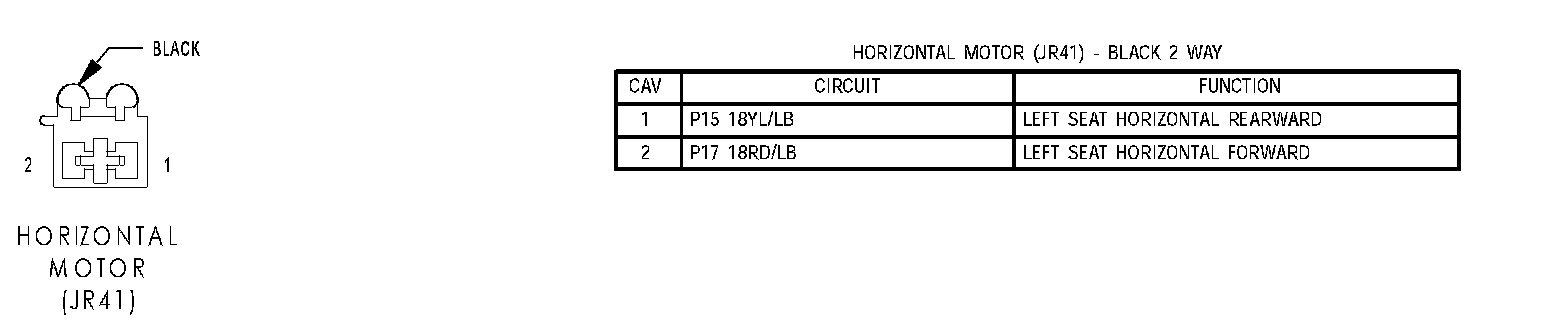

Horizontal Motor(JR41):

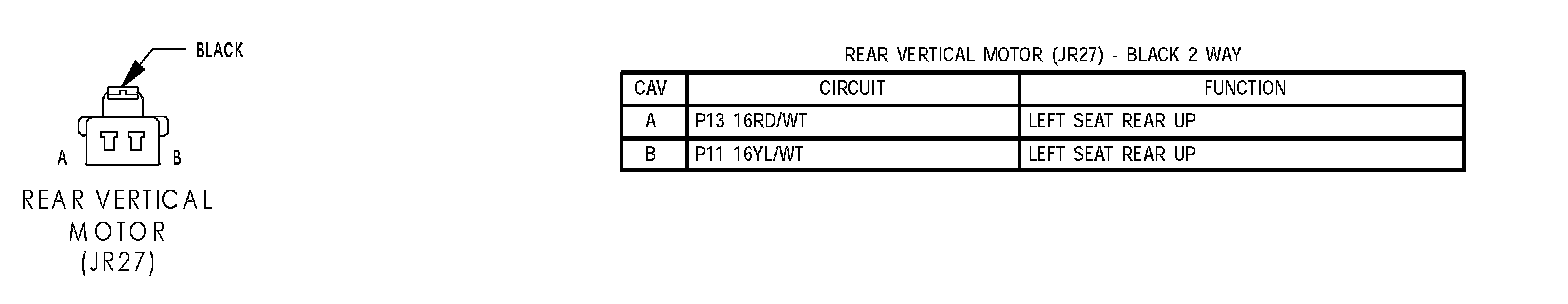

Rear Vertical Motor(JR27):

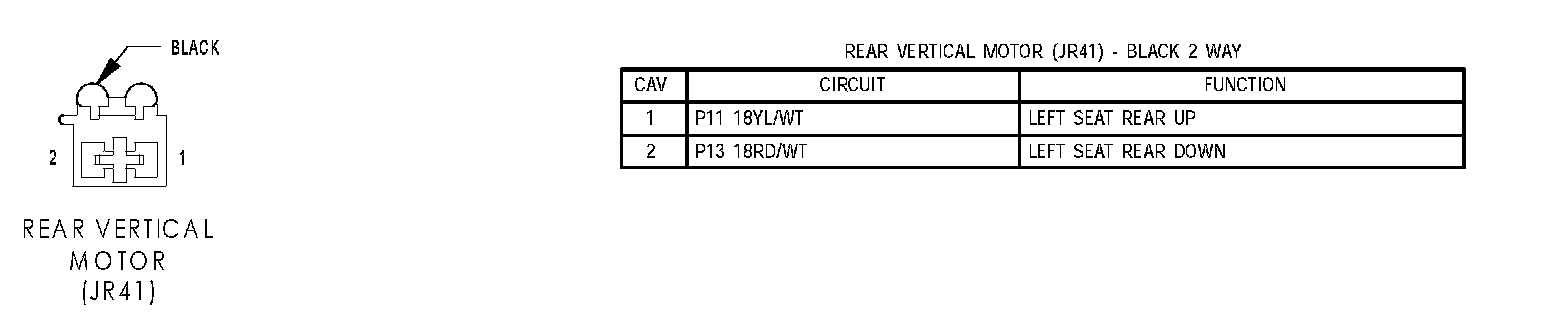

Rear Vertical Motor(JR41):

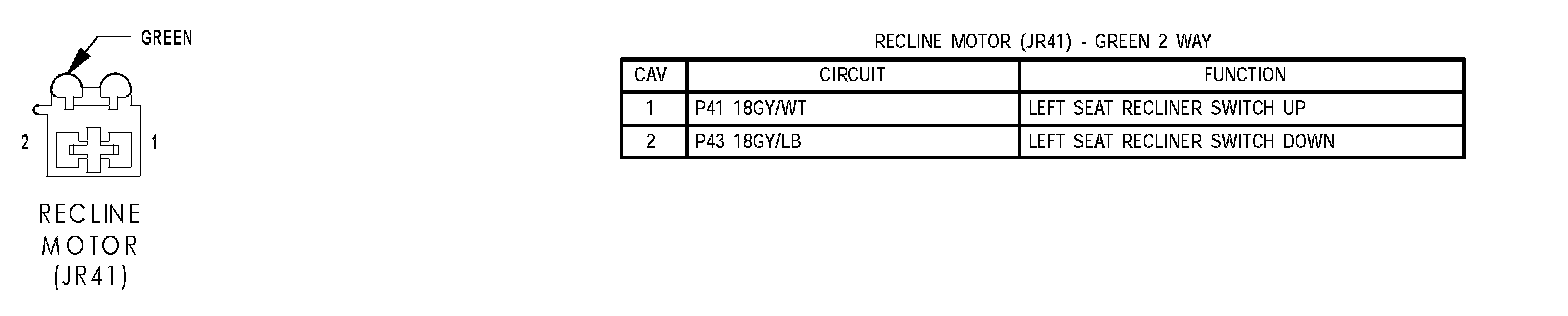

Recline Motor(JR41):
