Oxygen Sensor

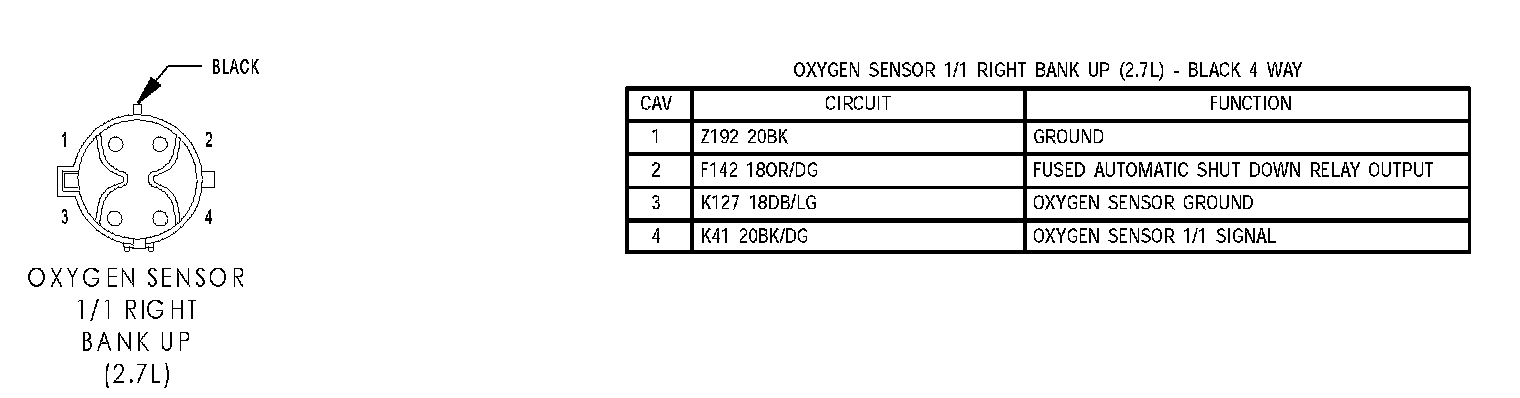

Oxygen Sensor 1/1 Right Bank Up(2.7L):

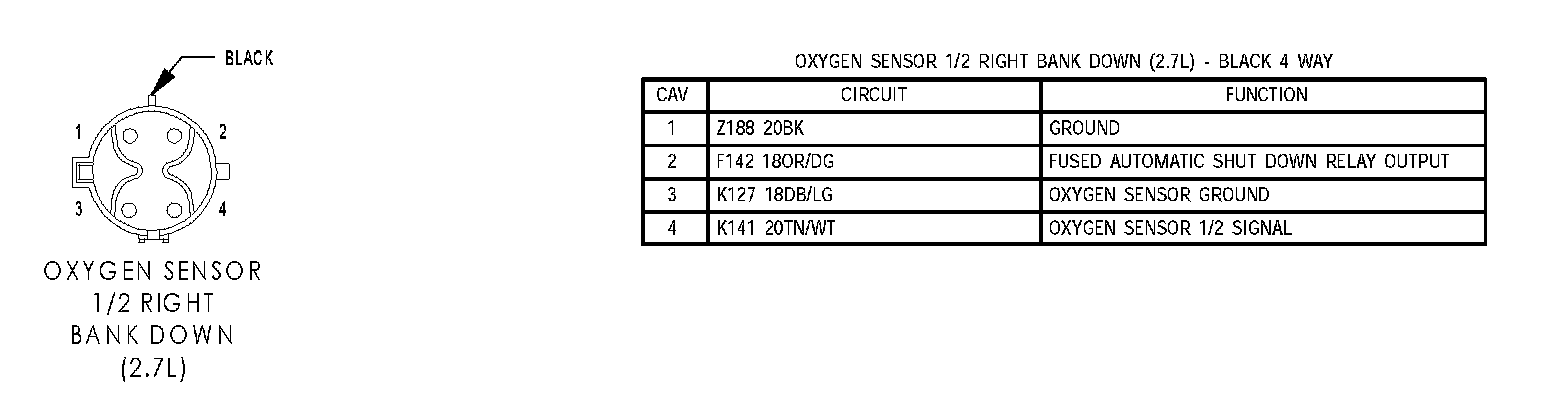

Oxygen Sensor 1/2 Right Bank Down(2.7L):

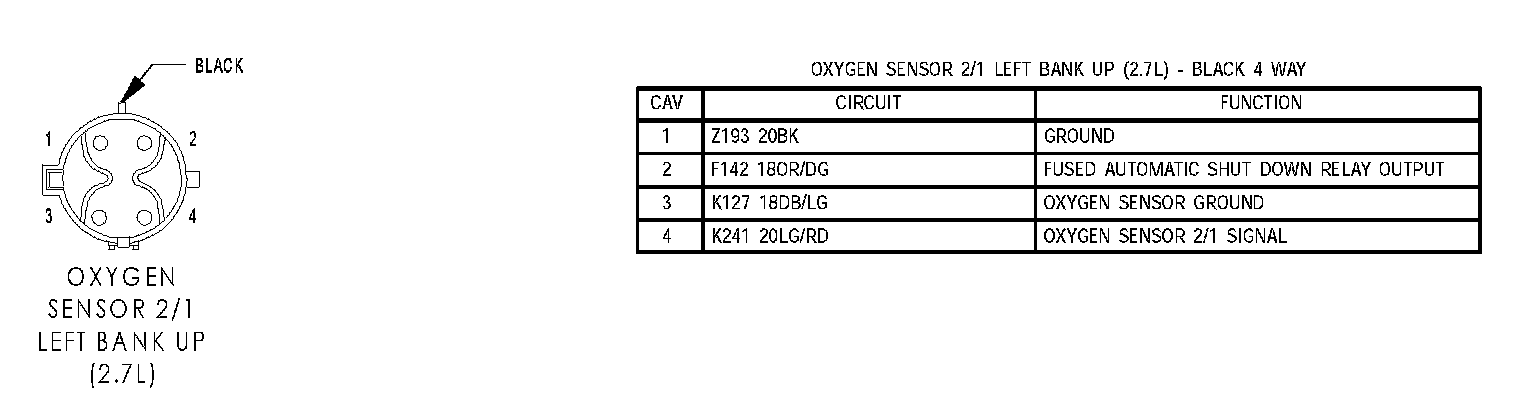

Oxygen Sensor 2/1 Left Bank Up(2.7L):

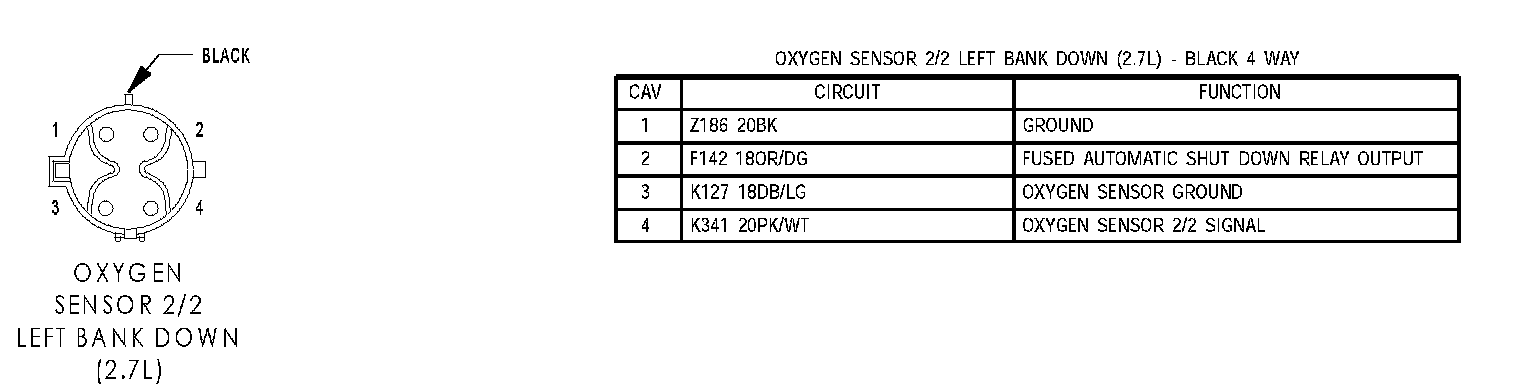

Oxygen Sensor 2/2 Left Bank Down(2.7L):
