Sebring Convertible V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Marker Lamp
Marker Lamp

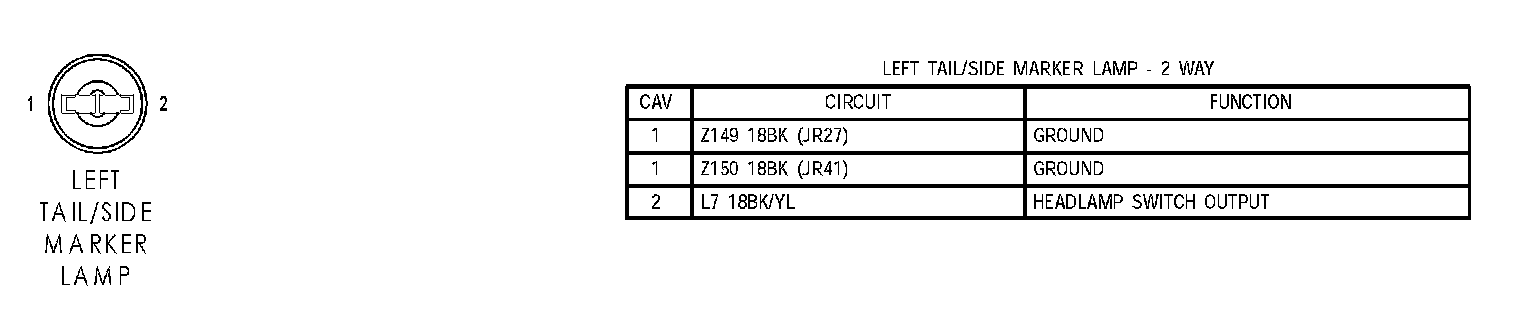

Left Tail/Side Marker Lamp:

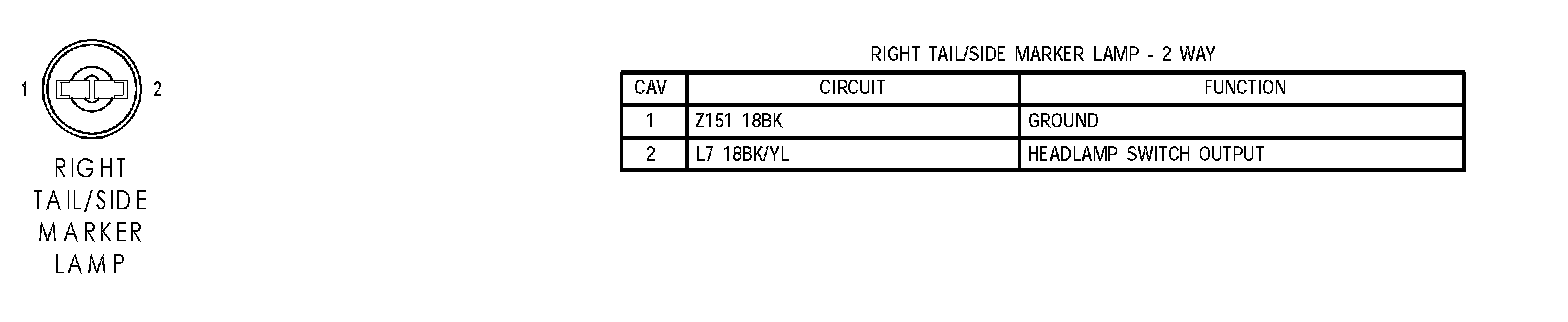

Right Tail/Side Marker Lamp:
