Home >> Chrysler >> 2004 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> License Plate Lamp

License Plate Lamp

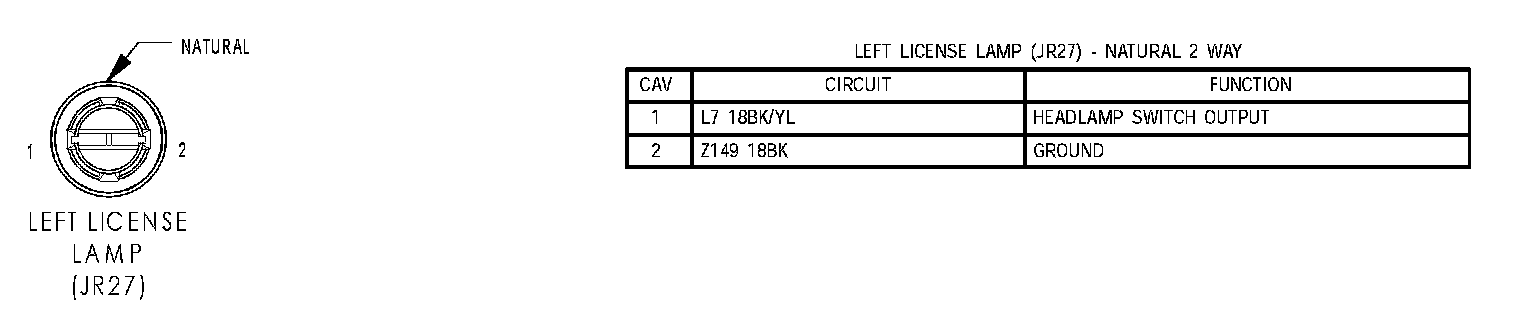

Left License Lamp(JR27):

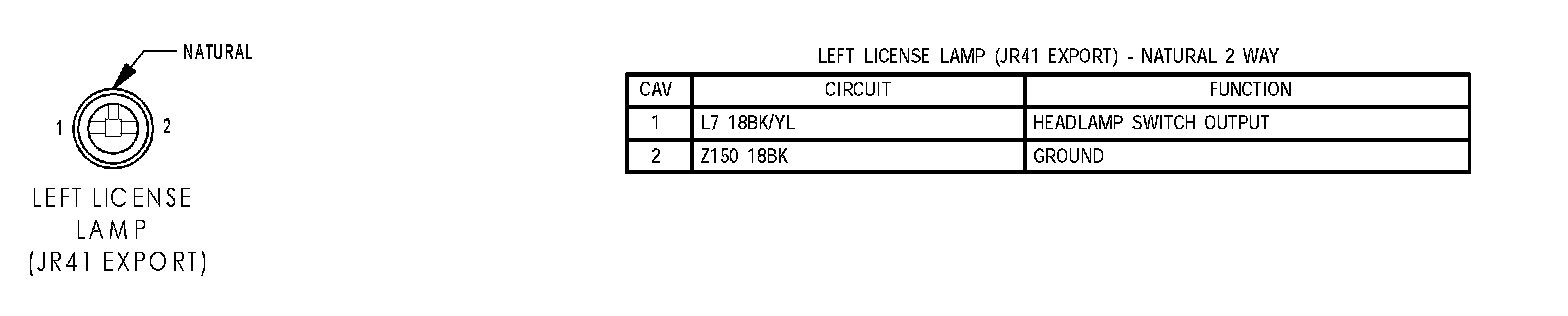

Left License Lamp(JR41 Export):

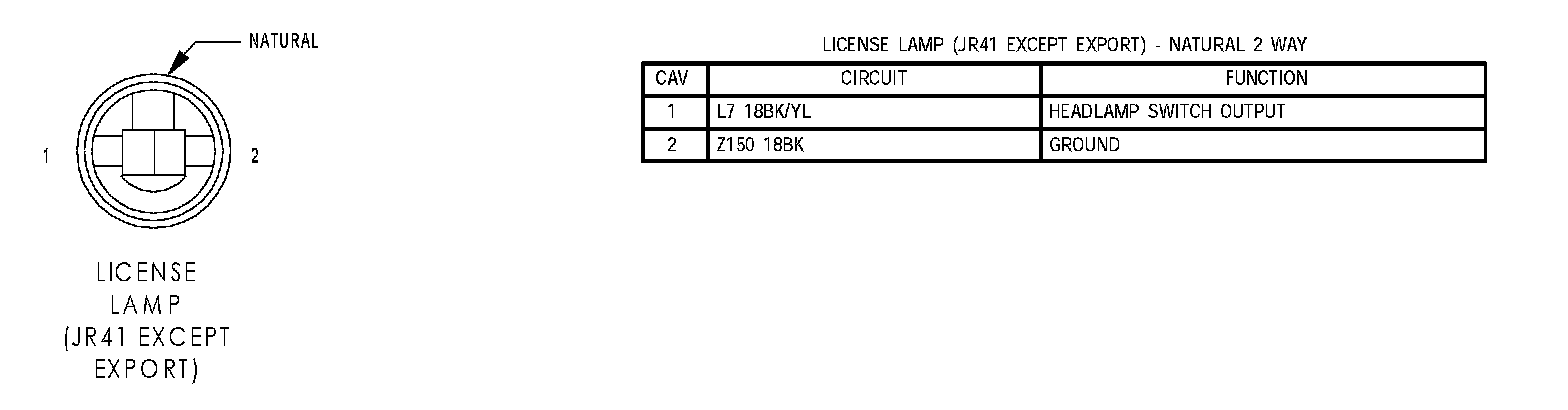

License Lamp(JR41 Except Export):



Right License Lamp(JR27):

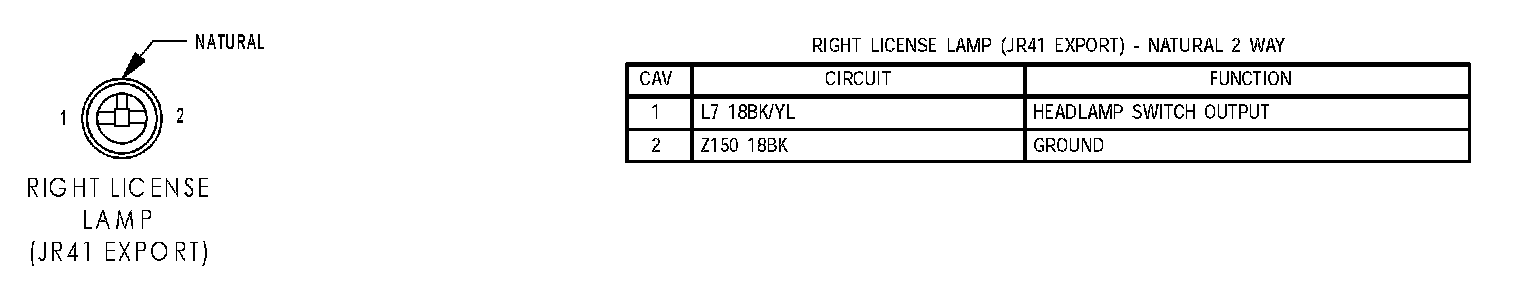

Right License Lamp(JR41 Export):
