Fuel Injector
Fuel Injector

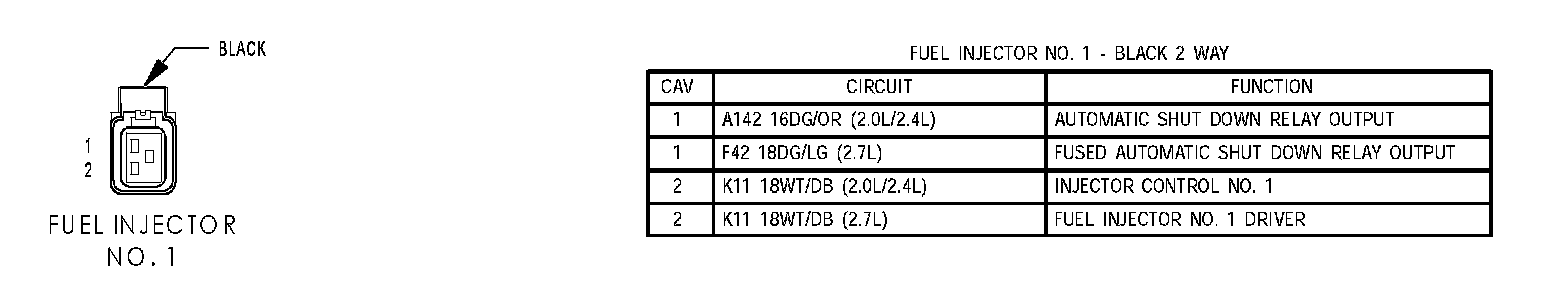

Fuel Injector No.1:

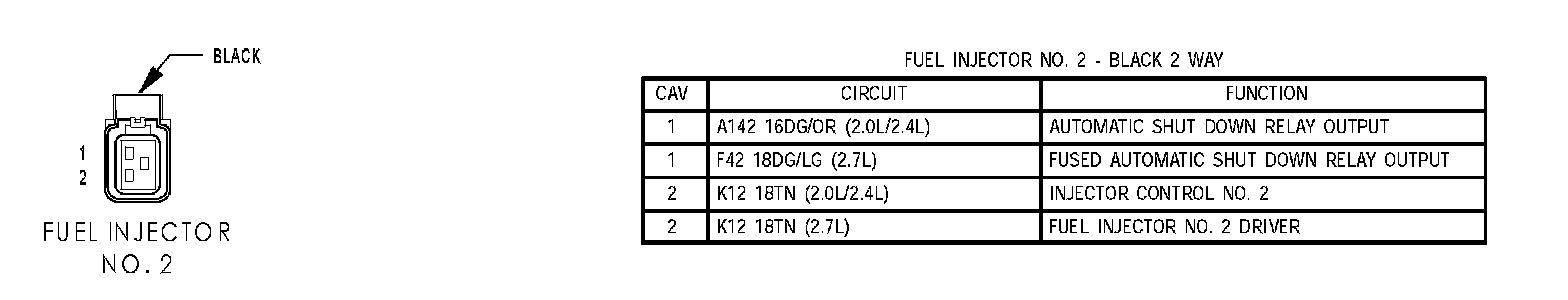

Fuel Injector No.2:

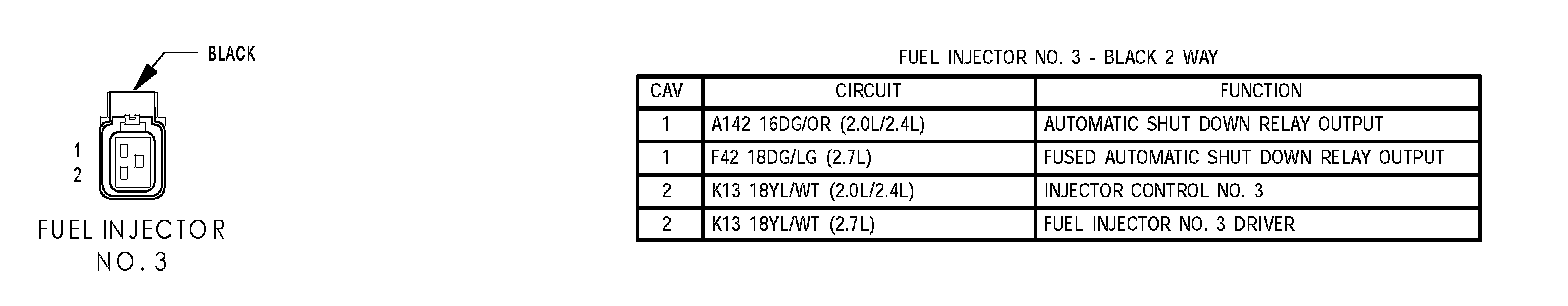

Fuel Injector No.3:

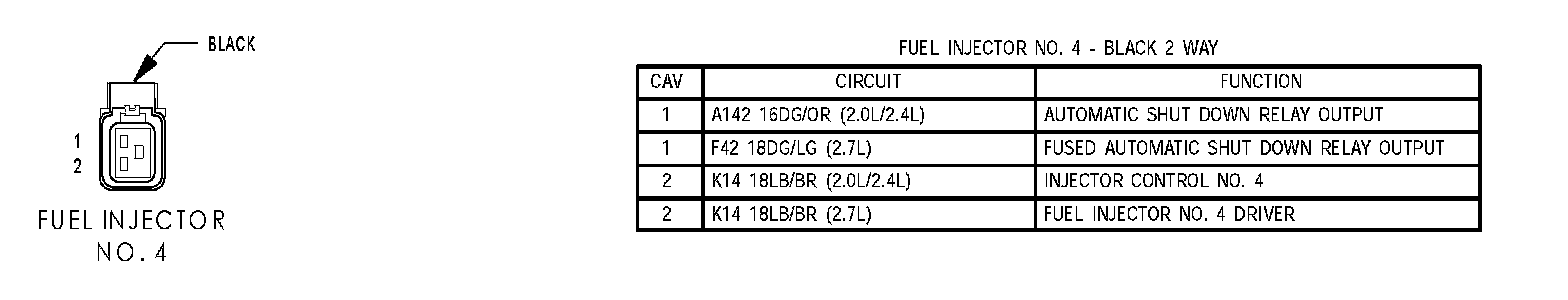

Fuel Injector No.4:

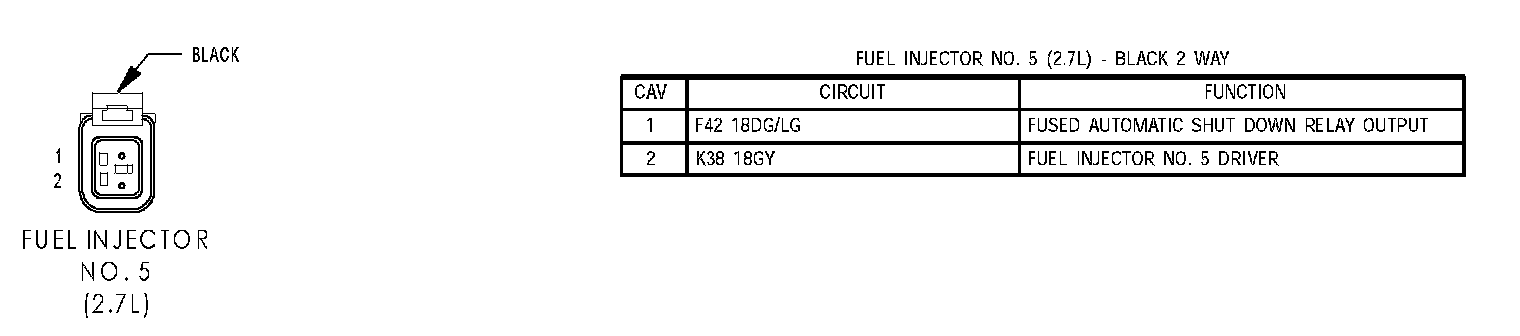

Fuel Injector No.5(2.7L):

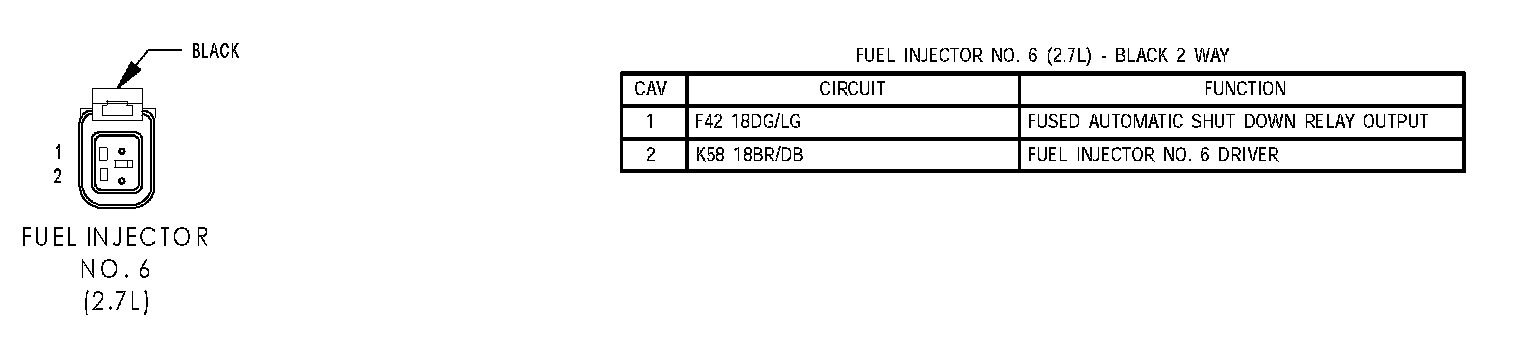

Fuel Injector No.6(2.7L):
