Sebring Convertible V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Convertible Top Switch
Convertible Top Switch

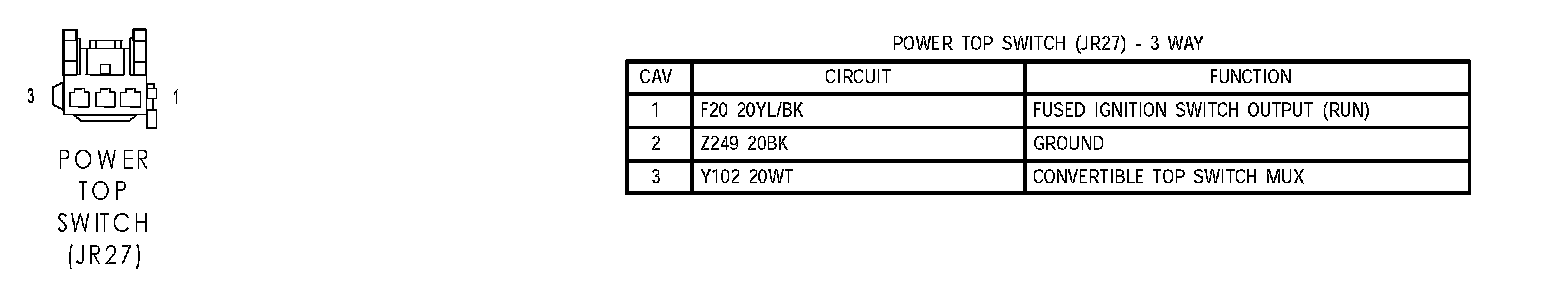

Power Top Switch(JR27):
