Home
>>
Chrysler
>>
2004
>>
Sebring Convertible V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Convertible Top Relay
Convertible Top Relay

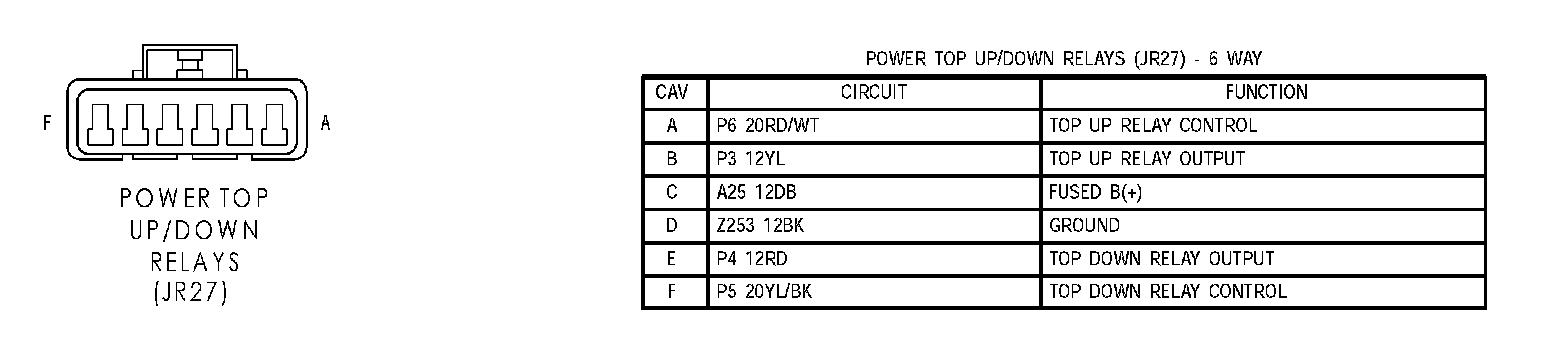

Power Top Up/Down Relays(JR27):
