Home >> Chrysler >> 2004 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> C300 - C310 >> C309

C309

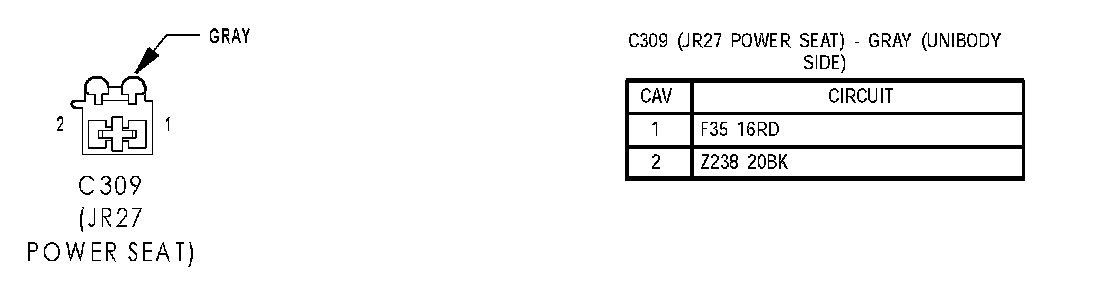

C309(JR27 Power Seat):

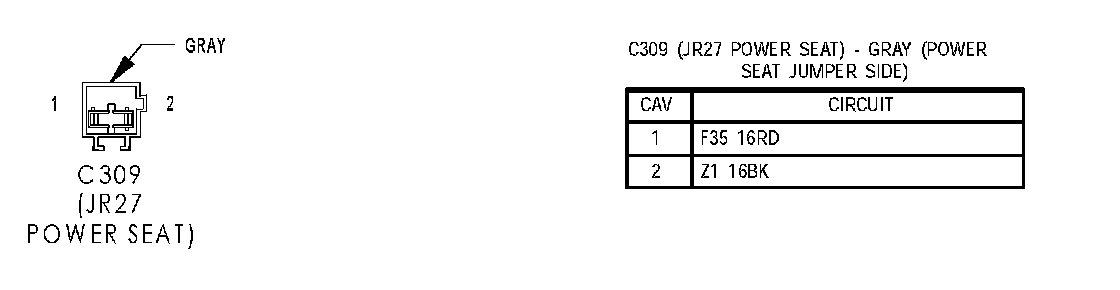

C3009(Jr27 Power Seat):

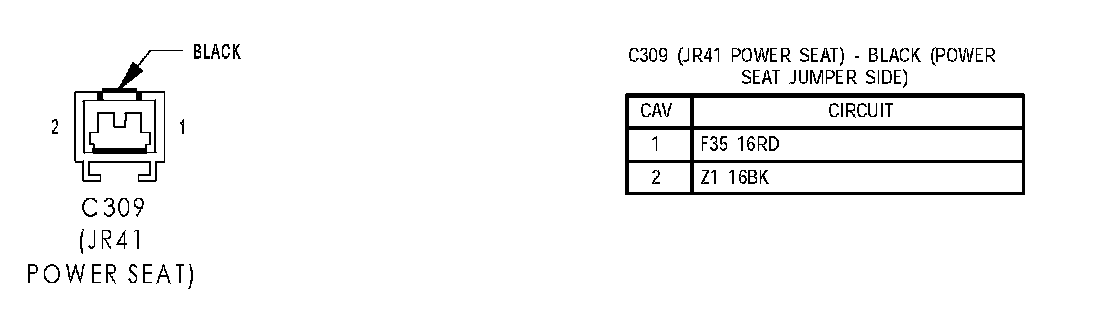

C309(JR41 Power Seat):

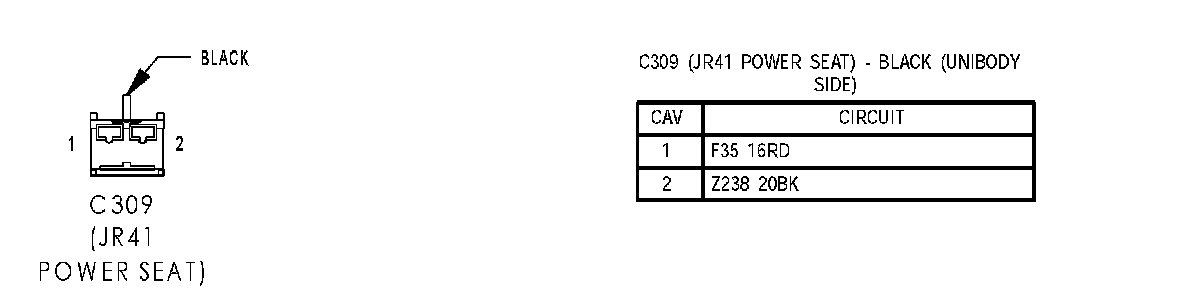

C309(JR41 Power Seat):
