Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System
Power Amplifier C1(JR27 Premium):

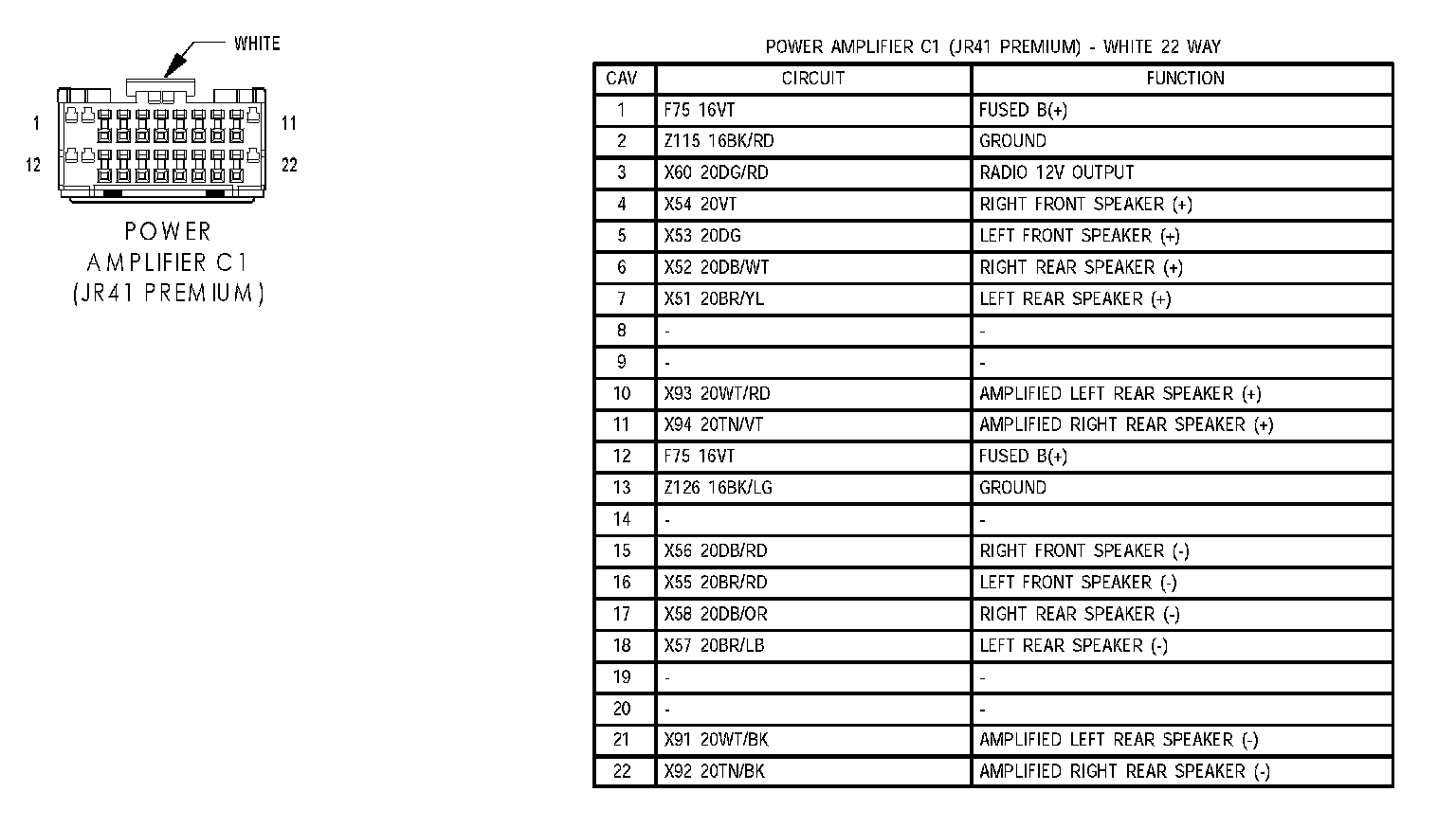

Power Amplifier C1(JR41 Premium):

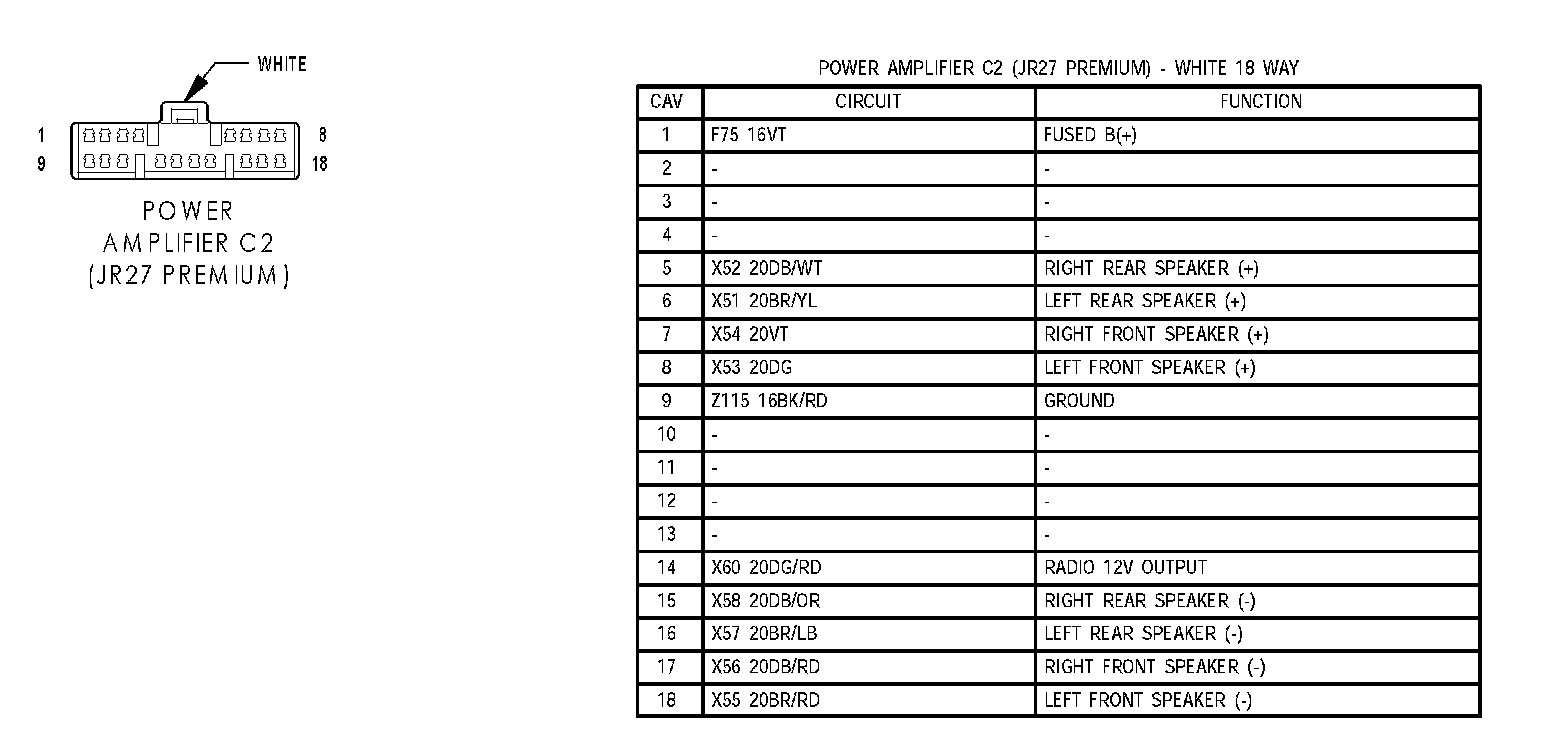

Power Amplifier C2(JR27 Premium:

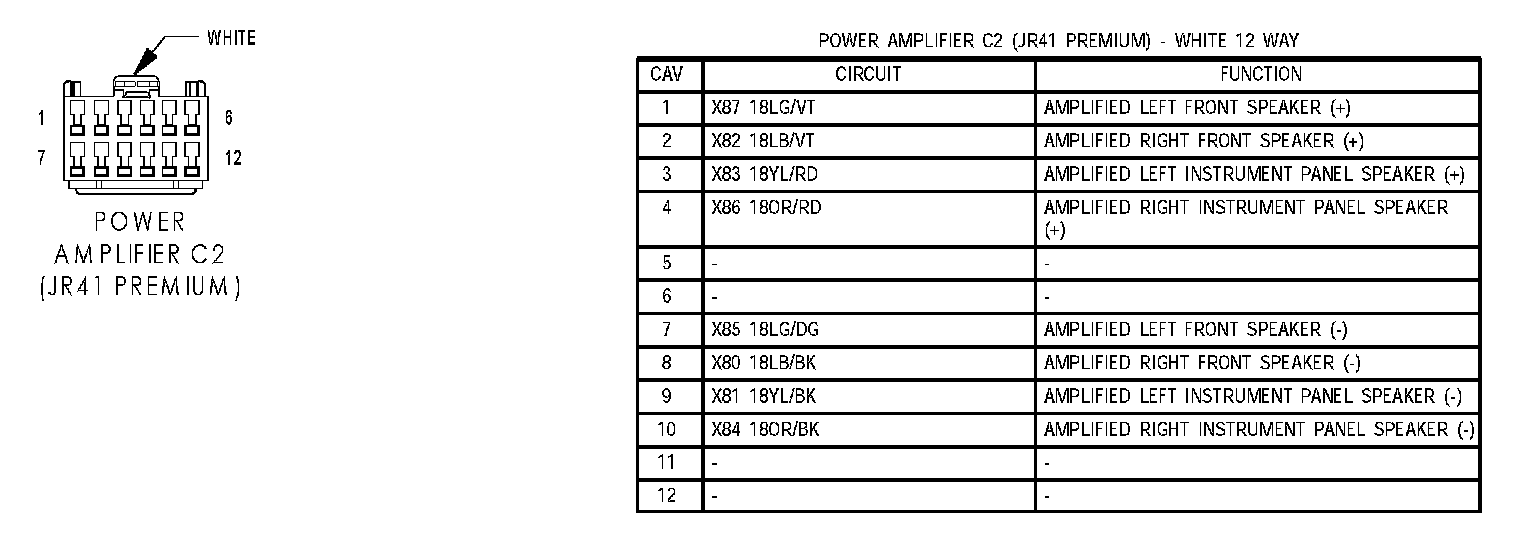

Power Amplifier C2(JR41 Premium):
