Air Bag Control Module

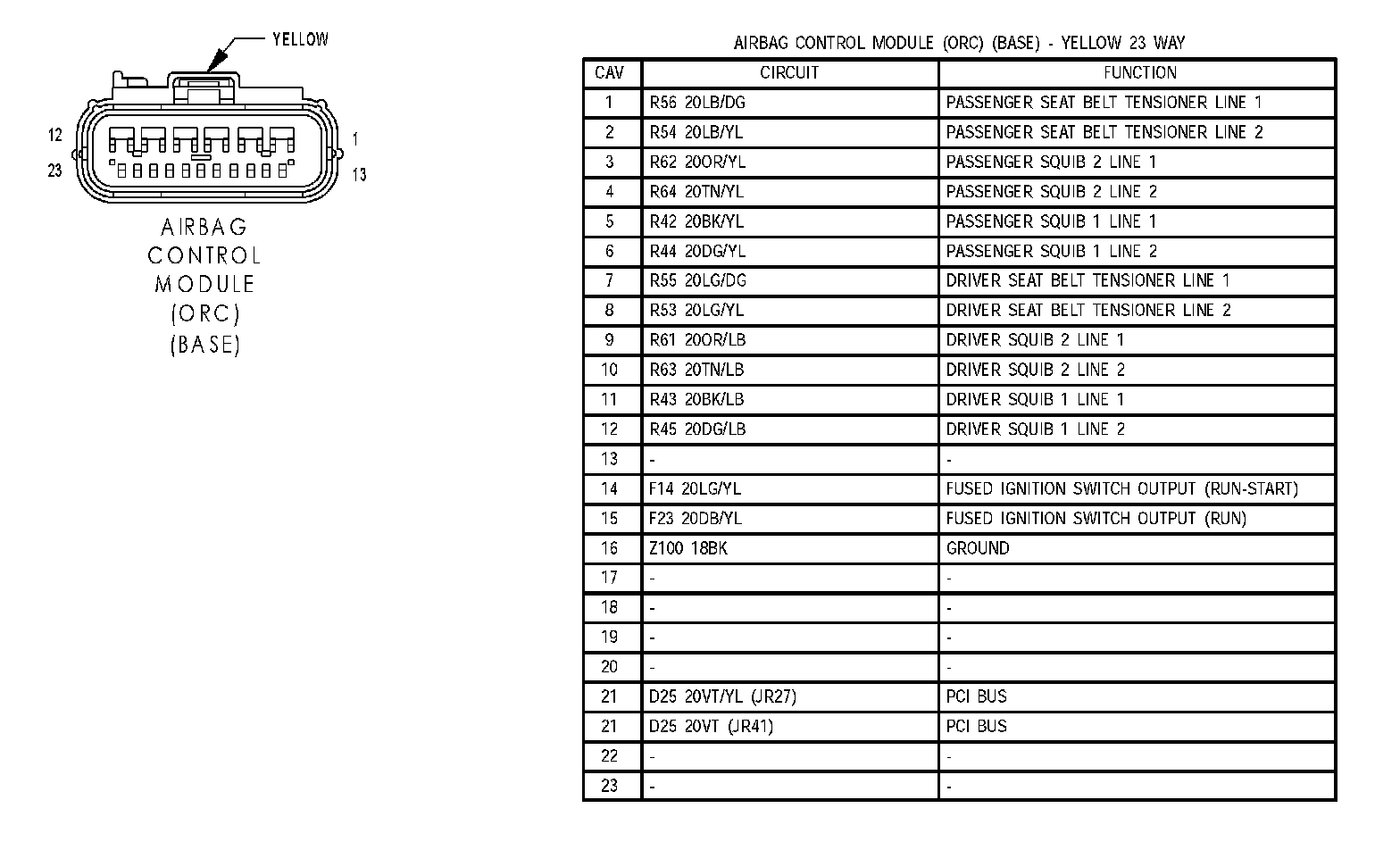

Airbag Control Module(ORC)(Base):

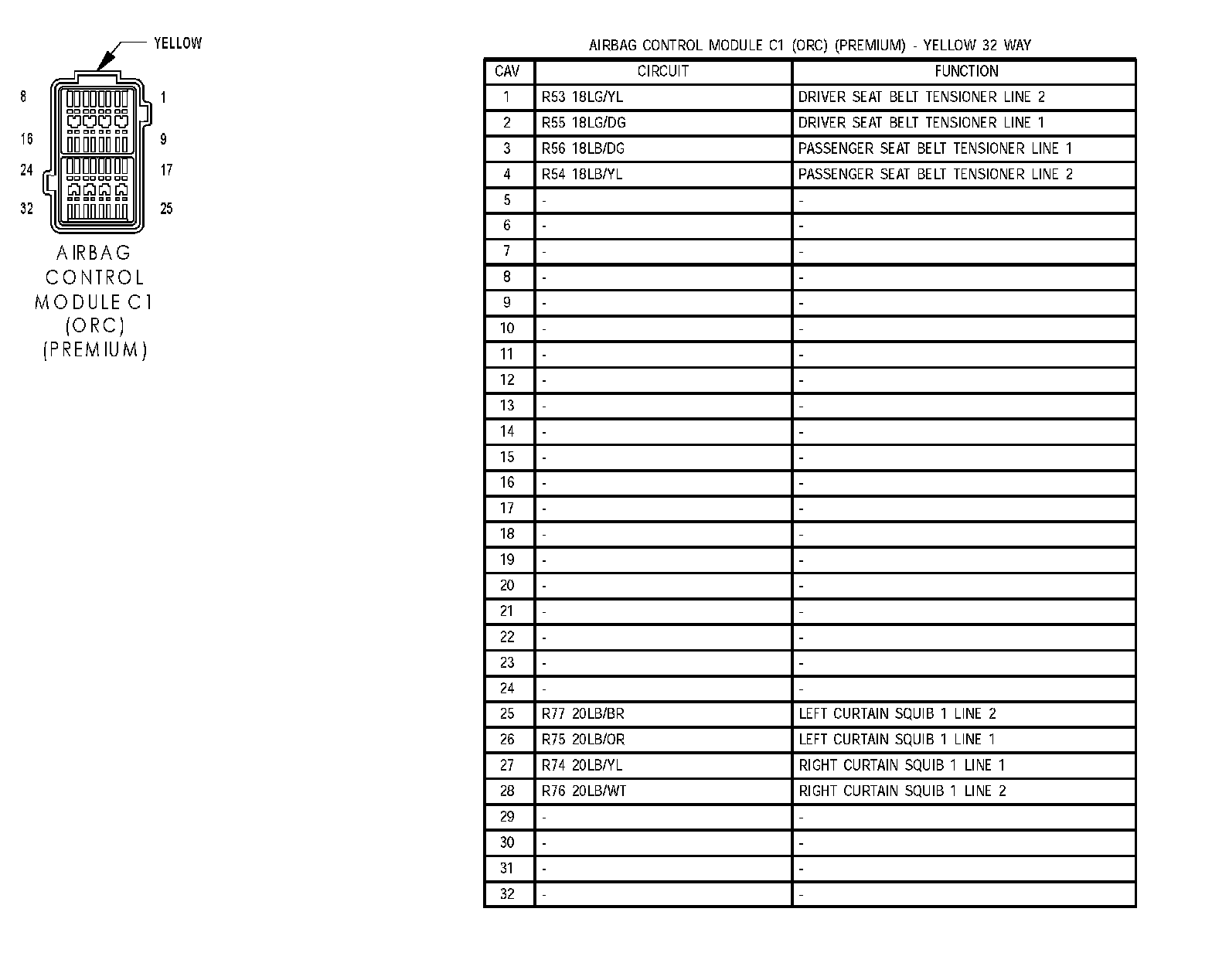

Airbag Control Module C1(ORC)(Premium):

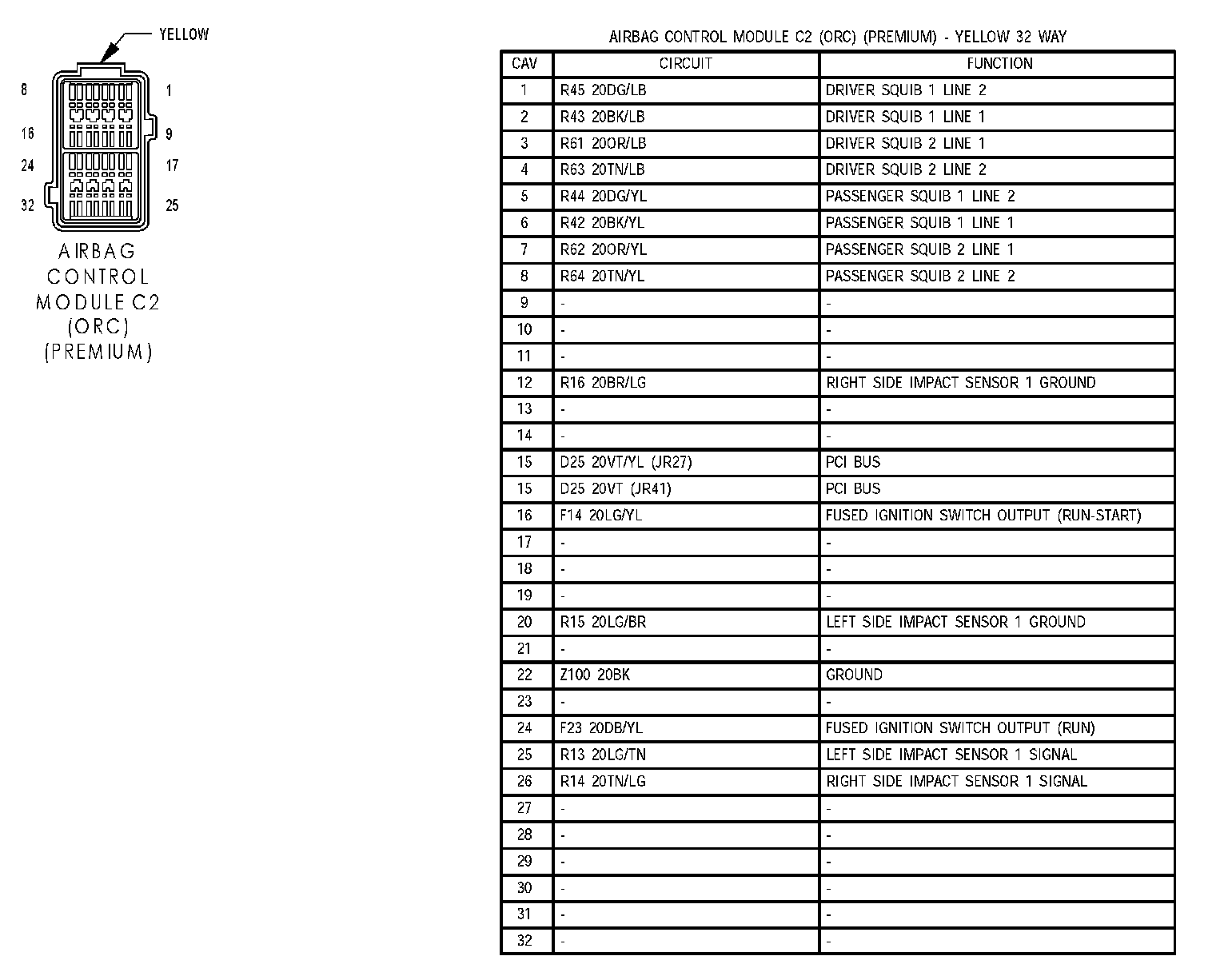

Airbag Control Module C2(ORC)(Premium):
