Sunroof Glass Panel

REMOVAL
1. Slide sunshade rearward to the open position.
2. Move the glass panel to the vent position.

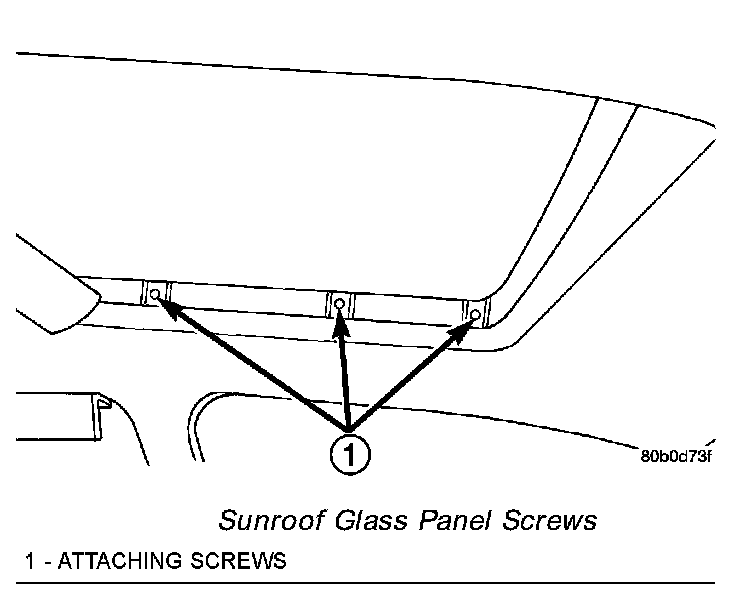

Sunroof Glass Panel Screws:

3. Remove the glass panel screws on each side.
4. Lift off glass panel and remove from vehicle.

INSTALLATION
1. Position glass panel on to mechanism.
2. Start the six attaching screws.
3. Close glass.
4. Center glass in opening by running a business card around the glass.
5. Adjust front height of glass, just below roof panel.
6. Tighten front two screws.
7. Adjust rear height of glass, just above roof panel.
8. Tighten remaining screws.
9. Verify sunroof operation and alignment. Check fit and adjust as necessary, (Refer to BODY/ SUNROOF/GLASS PANEL - DESCRIPTION).
