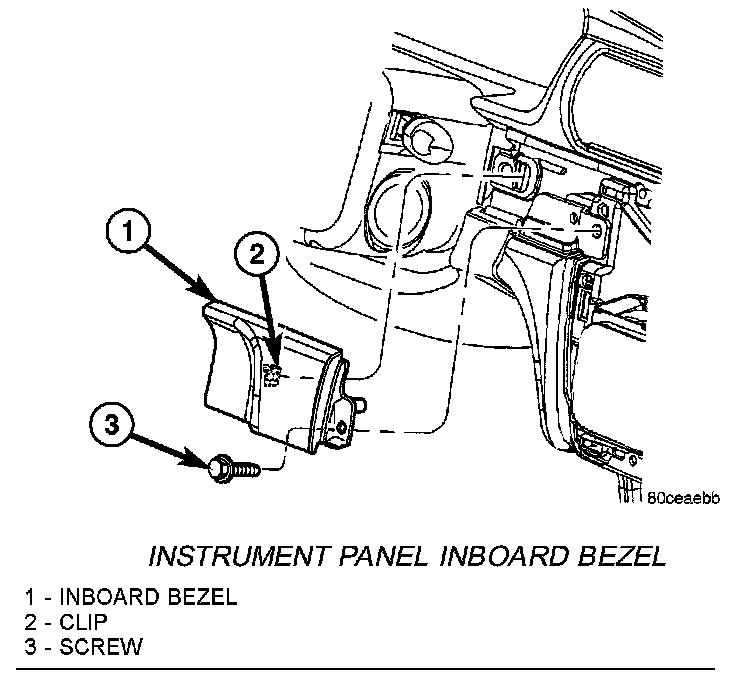

Instrument Panel Inboard Bezel

REMOVAL
1. Remove instrument panel center bezel.

Instrument Panel Inboard Bezel:

2. Remove the one retaining screw located on the left side of the center stack, behind the center bezel.
3. Using a trim stick (special tool #C-4755) or equivalent, gently pry out on the instrument panel inboard bezel and remove.

INSTALLATION
1. Position the instrument panel inboard bezel over the retaining slots and firmly snap into place.
2. Install the one retaining screw located on the left side of the center stack, behind the center bezel.
3. Install the instrument panel center bezel.
