Front Door-JR27

REMOVAL
1. Disconnect and isolate the battery negative cable.

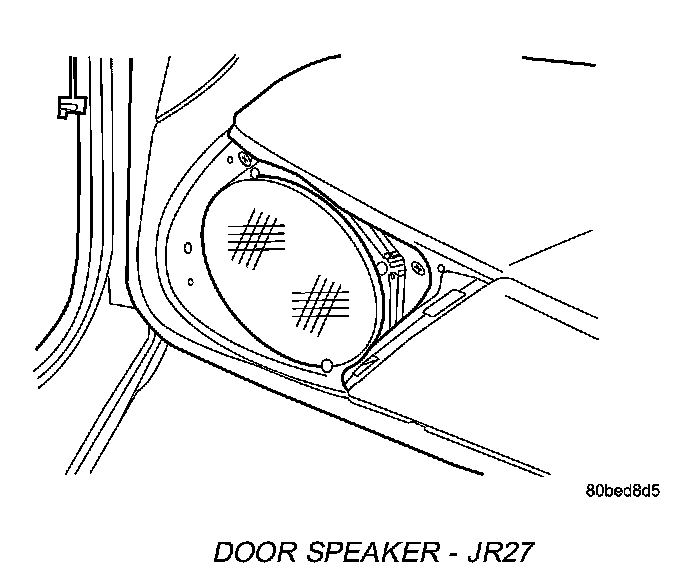

Door Speaker - JR27:

2. Using a trim stick, pry speaker grill from door trim panel.
3. Remove the speaker mounting fasteners.
4. Remove speaker from door trim panel.
5. Disconnect wire harness connector from speaker.

INSTALLATION
1. Connect the wire harness connector to speaker.
2. Install the speaker to the door trim panel.
3. Install the speaker mounting fasteners. Tighten to 4 Nm (35 in. lbs.).
4. Press speaker grill onto the door panel.
5. Connect the battery negative cable.
