Radio/Stereo: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel center bezel trim.
3. Remove radio mounting screws.

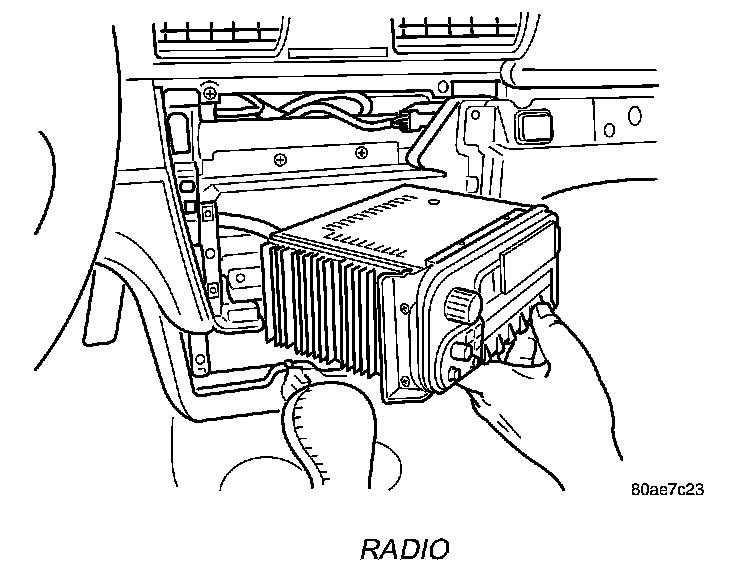

Radio:

4. Remove radio.
5. Disconnect wire harness connectors.

CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

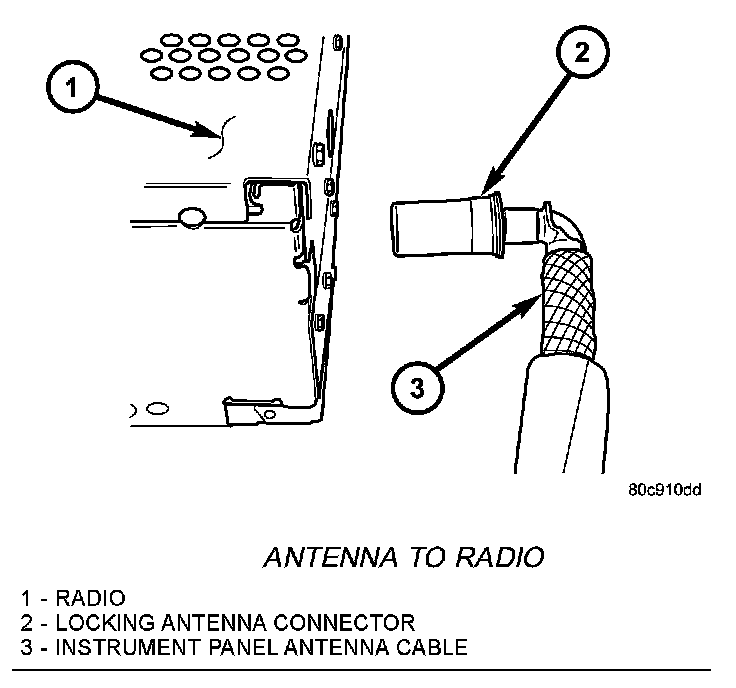

Antenna To Radio:

6. Disconnect the antenna cable by pulling the locking antenna connector away from the radio.

INSTALLATION
1. Connect wire harness connector to radio.
2. Connect antenna to radio.
3. Install radio and screws. Tighten to 3 Nm (30 in. lbs.).
4. Install instrument panel center bezel trim.
5. Connect battery negative cable.
