P1793

Symptom:
P1793-TRD LINK COMMUNICATION ERROR

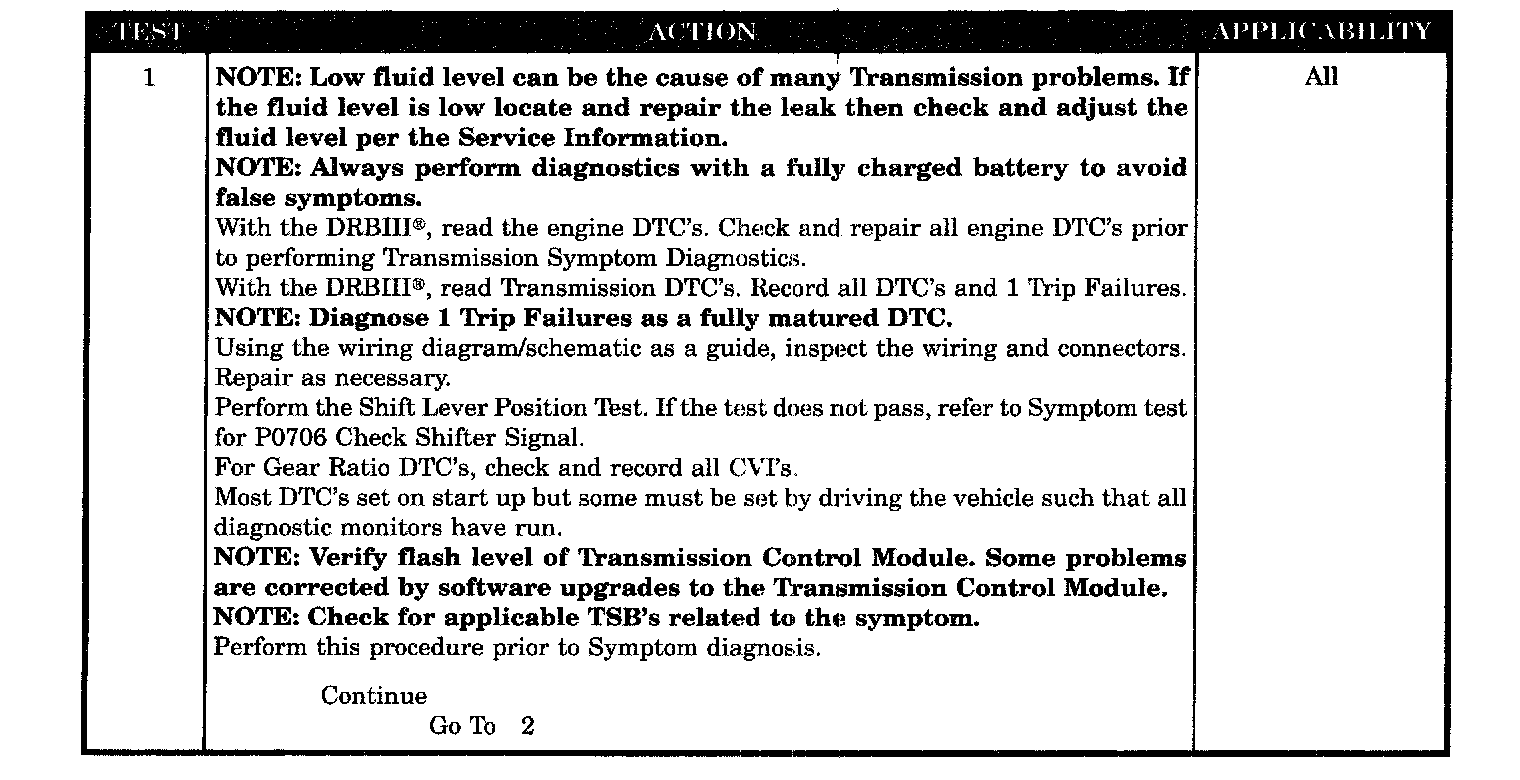

Test 1:

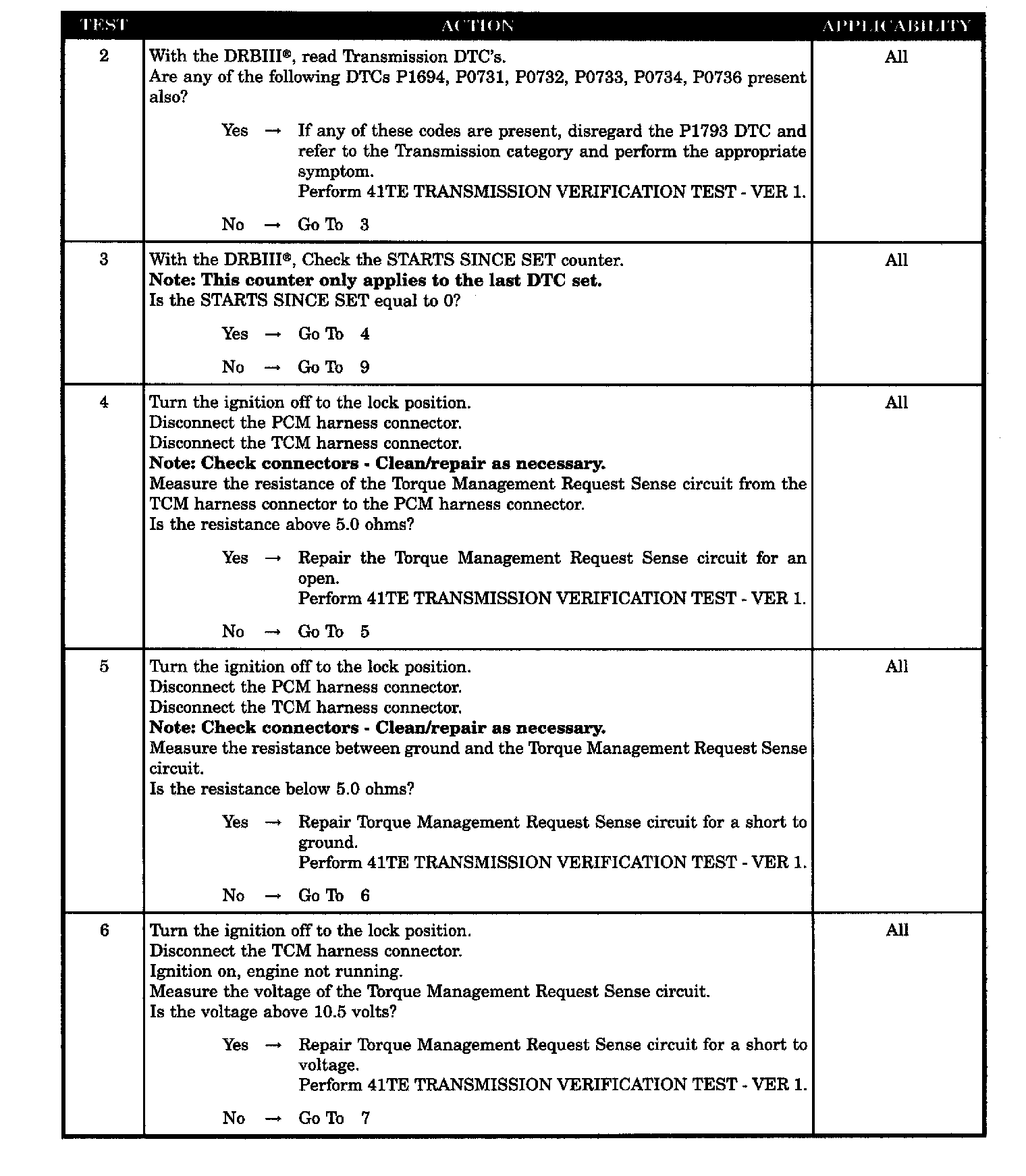

Test 2-6:

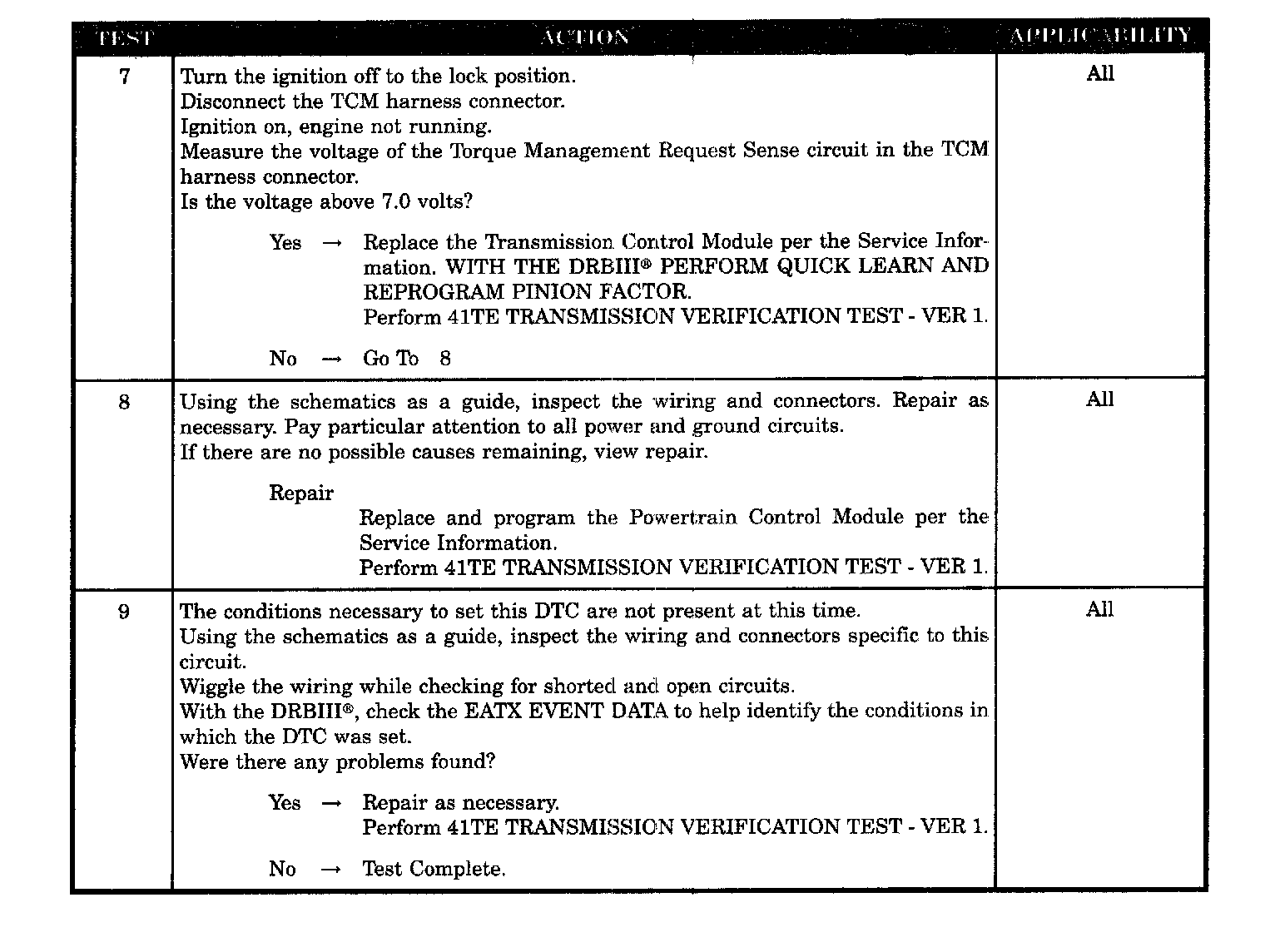

Test 7-9:

When Monitored:
The transmission controller pulses the 12 volt TRD signal from the PCM to ground, during torque managed shifts with the throttle angle above 54 degrees. The TRD system is also tested whenever the vehicle is stopped and the engine speed is at idle.

Set Condition:
This code is set when the Transmission Control Module (TCM) sends two subsequent torque reduction messages to the Powertrain Control Module (PCM) via the TRD link circuit and does not receive a confirmation from the PCM over the communication bus.

POSSIBLE CAUSES
- RELATED DTC'S PRESENT
- TORQUE MANAGEMENT REQUEST SENSE CIRCUIT OPEN
- TORQUE MANAGEMENT REQUEST SENSE SHORT TO GROUND
- TORQUE MANAGEMENT REQUEST SENSE CIRCUIT SHORT TO VOLTAGE
- POWERTRAIN CONTROL MODULE
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
