P1776

Symptom:
P1776 SOLENOID SWITCH VALVE LATCHED IN LR POSITION

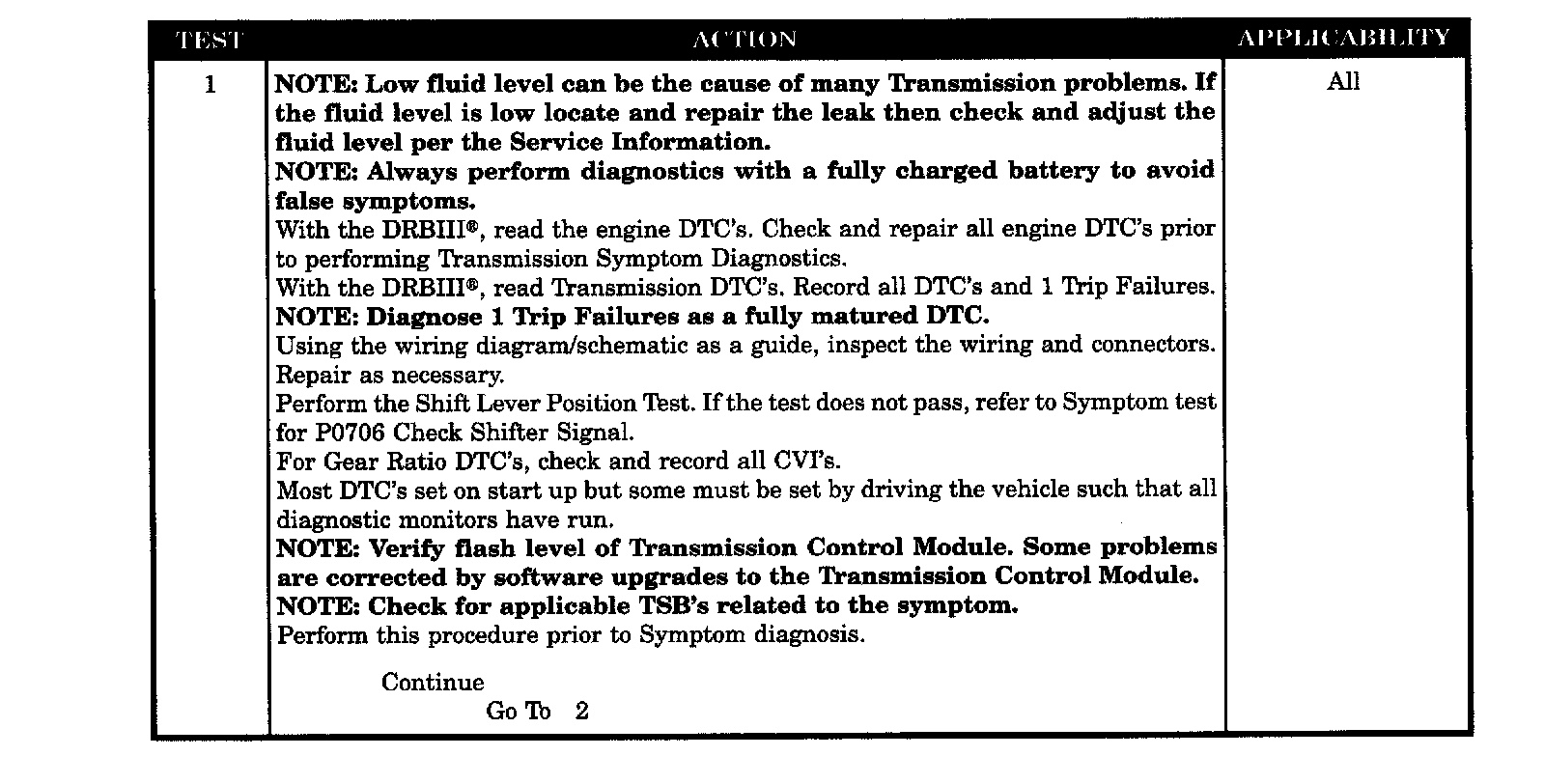

Test 1:

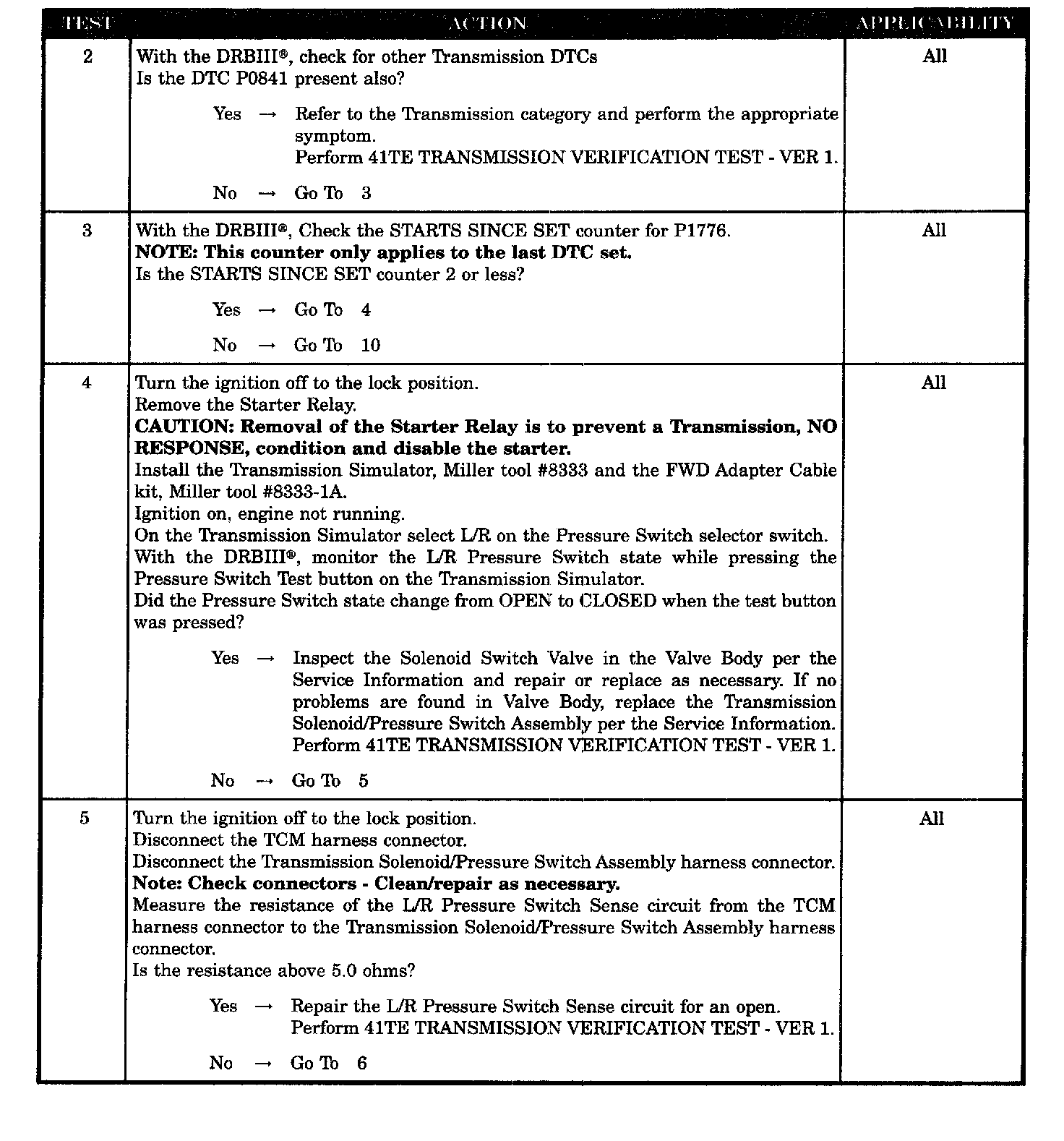

Test 2-5:

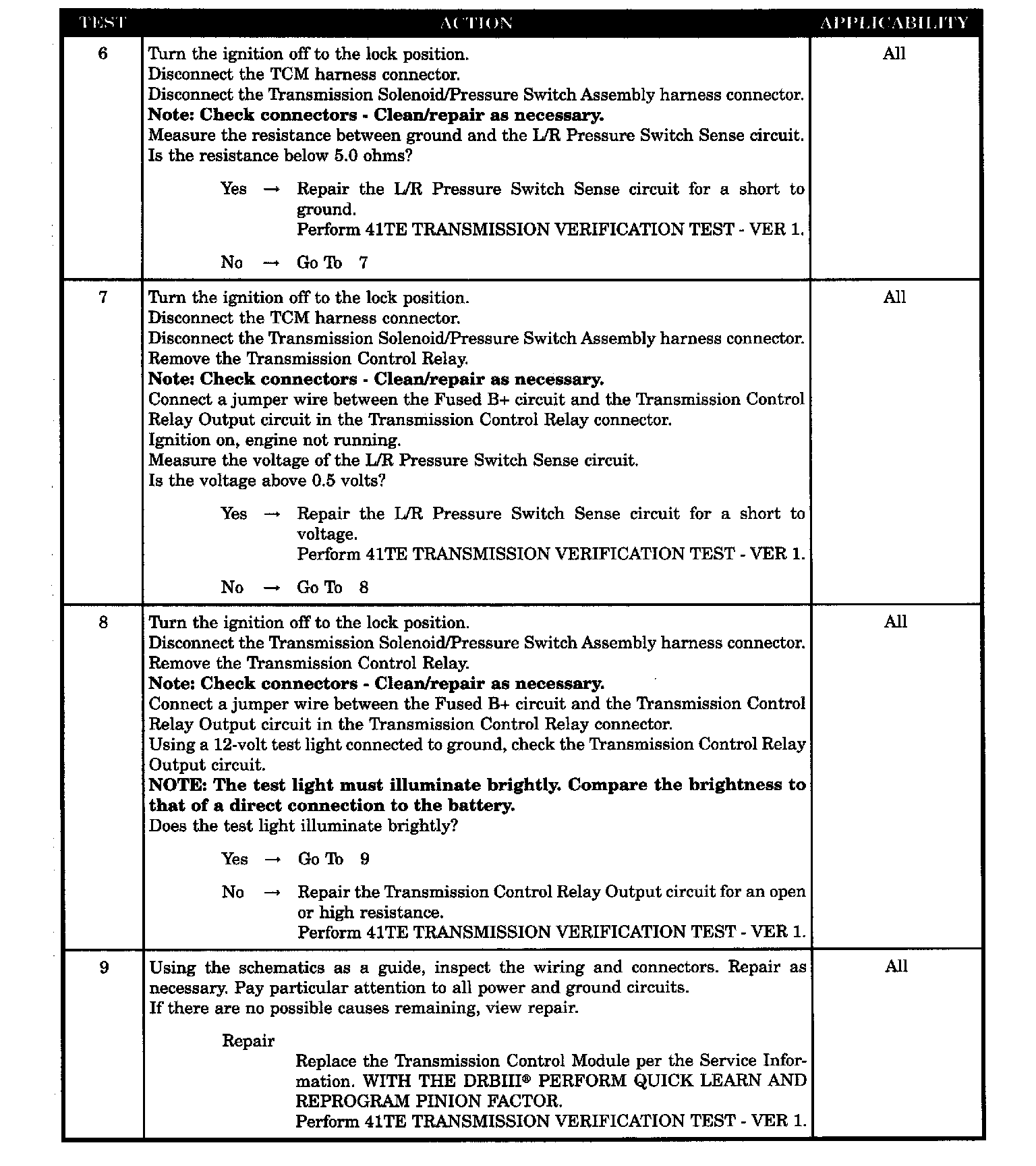

Test 6-9:

Test 10:

When Monitored:
Continuously when doing partial or full EMCC (PEMCC or FEMCC).

Set Condition:
This DTC will set if the TCM senses the L/R Pressure Switch closing while performing PEMCC or FEMCC or after two unsuccessful attempts to perform PEMCC or FEMCC.

POSSIBLE CAUSES
- RELATED, DTC P0841 PRESENT
- L/R PRESSURE SWITCH
- TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN
- L/R PRESSURE SWITCH SENSE CIRCUIT OPEN
- L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO GROUND
- L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
