P1775

Symptom:
P1775-SOLENOID SWITCH VALVE LATCHED IN TCC POSITION

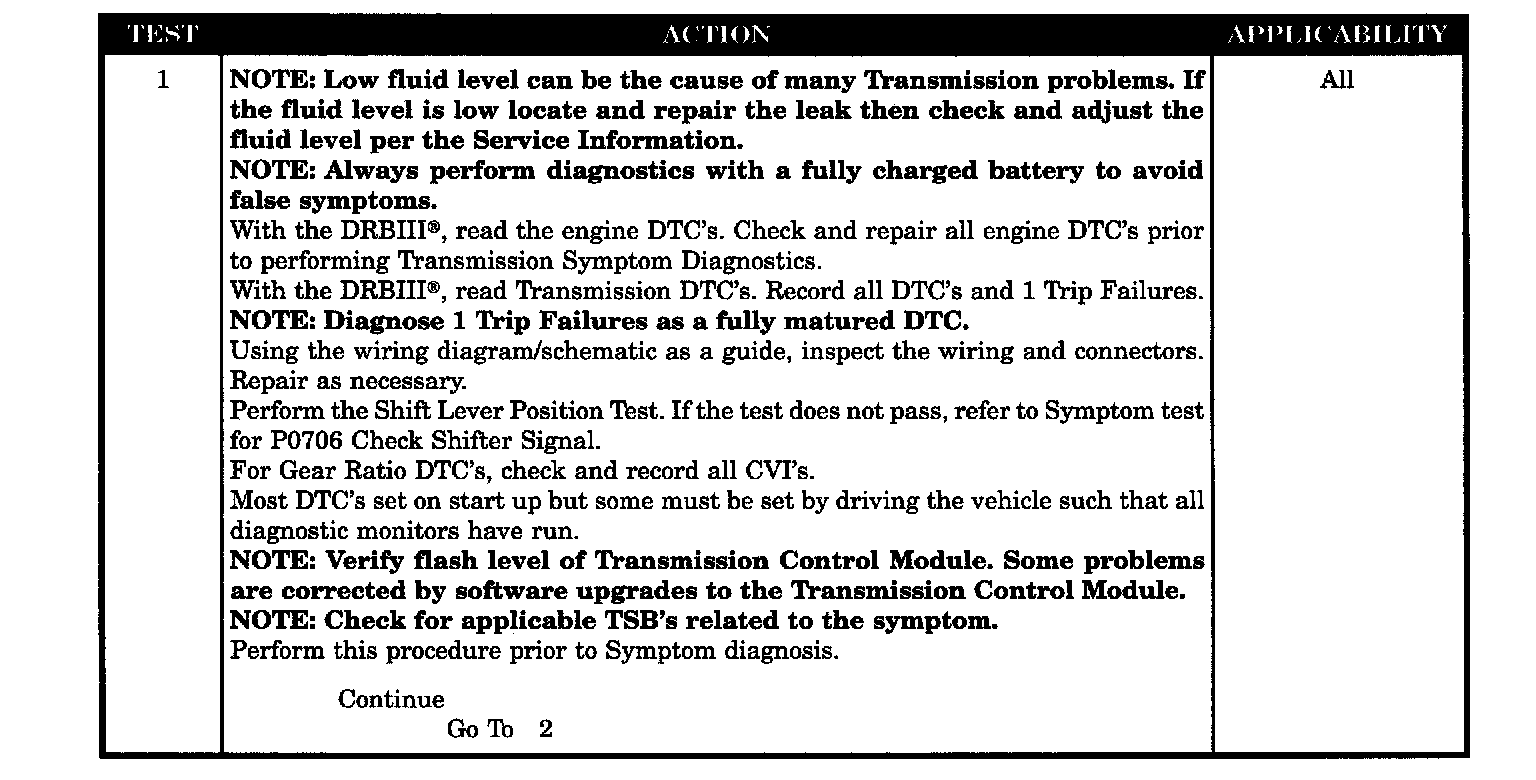

Test 1:

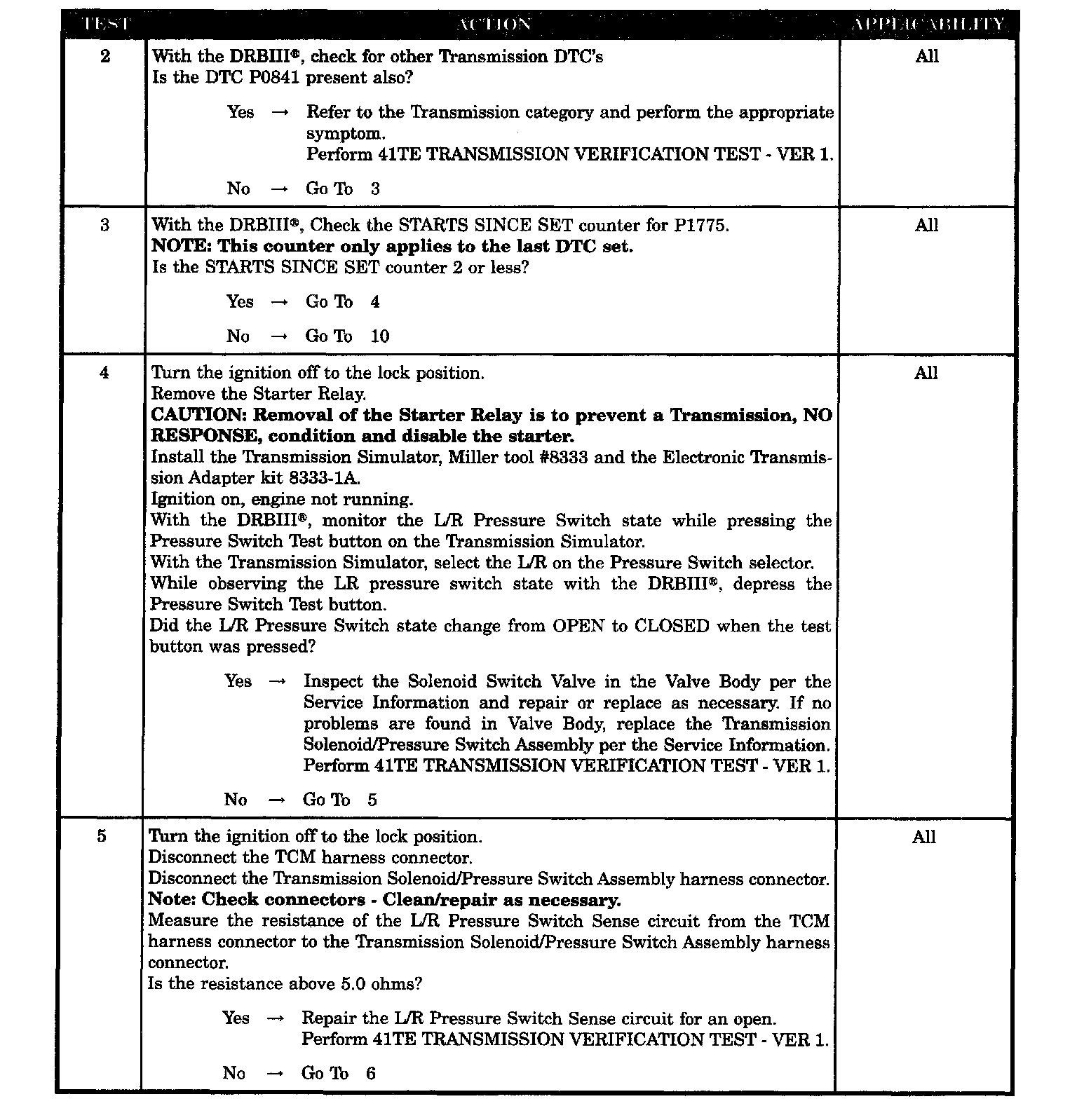

Test 2-5:

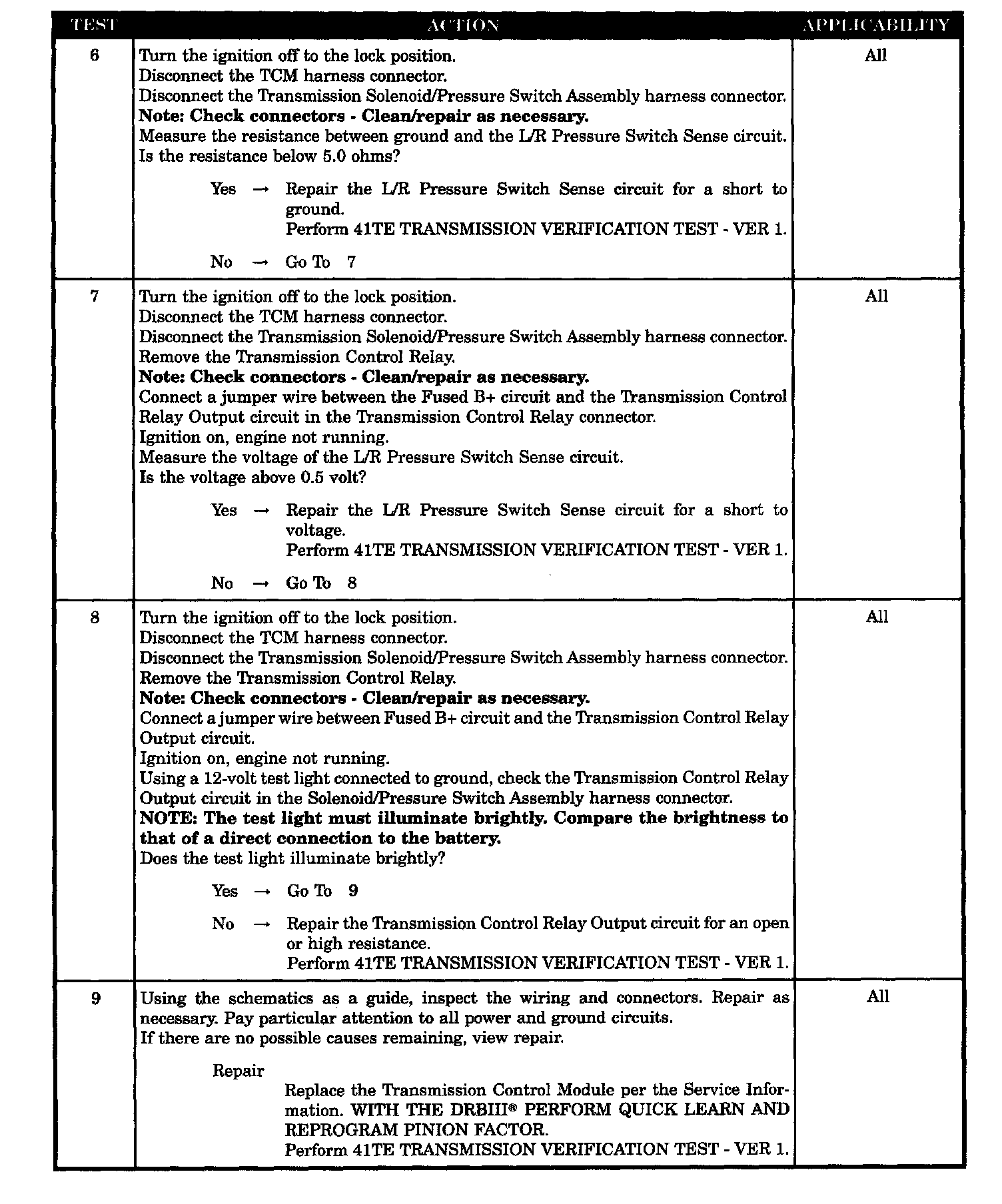

Test 6-9:

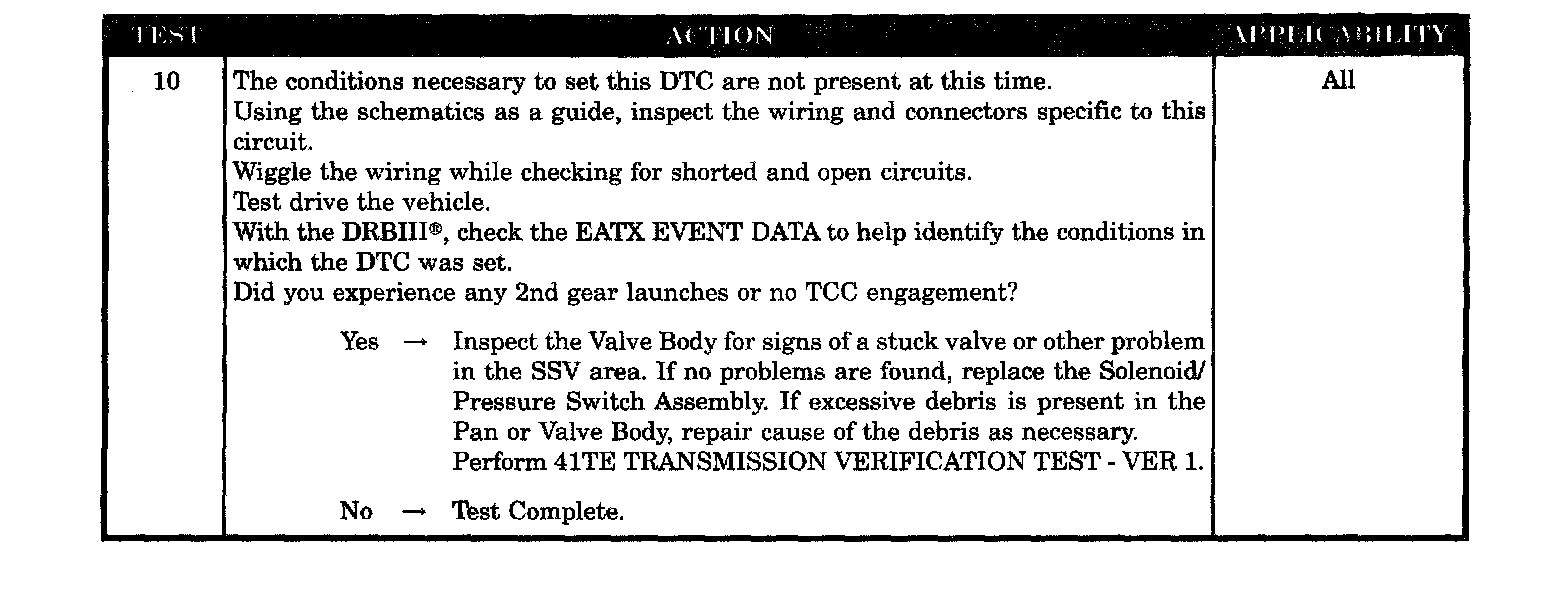

Test 10:

When Monitored:
During an attempted shift into 1st gear.

Set Condition:
This DTC is set if three unsuccessful attempts are made to shift into 1st gear in one given ignition start.

POSSIBLE CAUSES
- RELATED DTC P0841 PRESENT
- L/R PRESSURE SWITCH
- TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN
- L/R PRESSURE SWITCH SENSE CIRCUIT OPEN
- L/R PRESSURE SWITCH CIRCUIT SHORT TO GROUND
- L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
