P1695

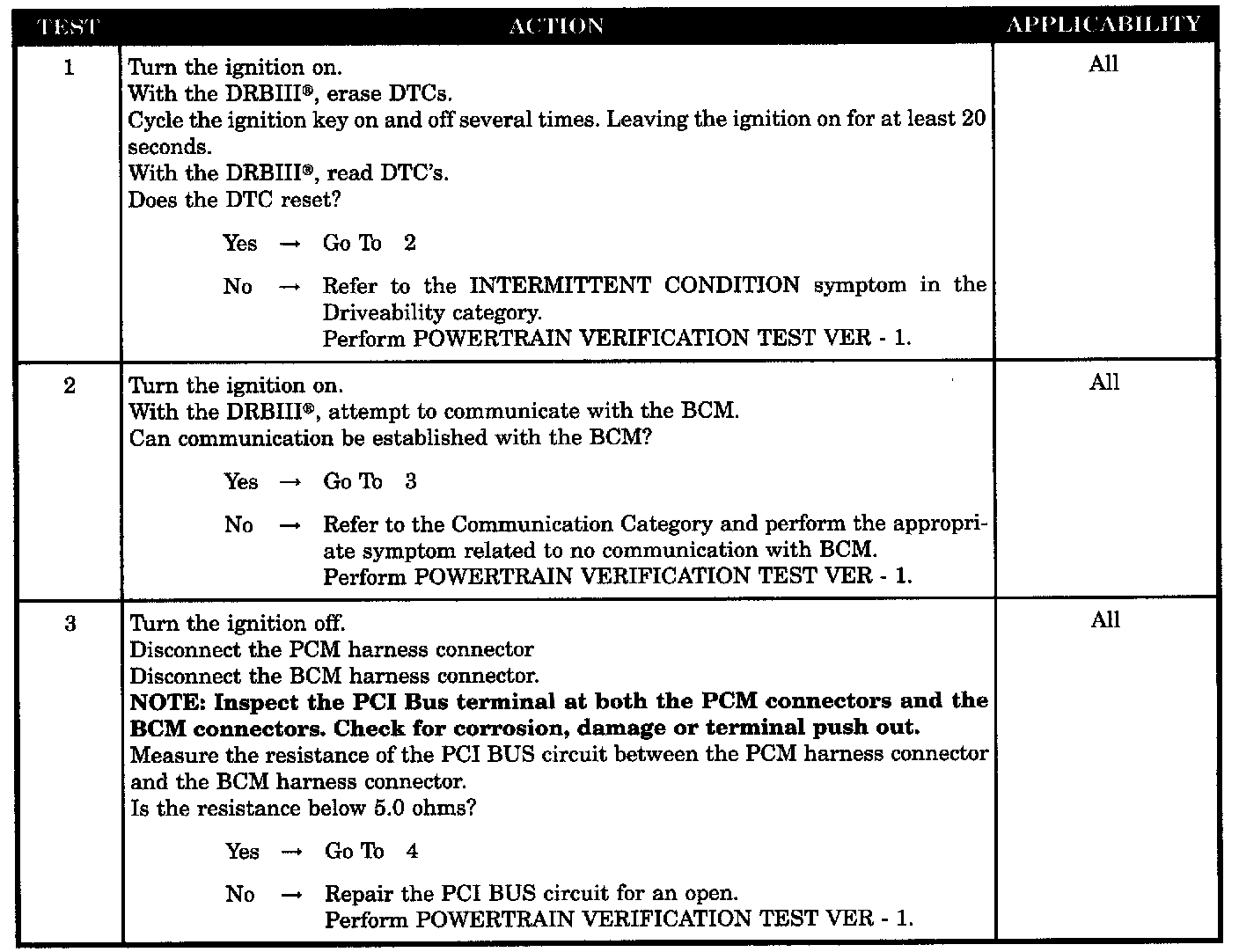

Test 1 - 3:

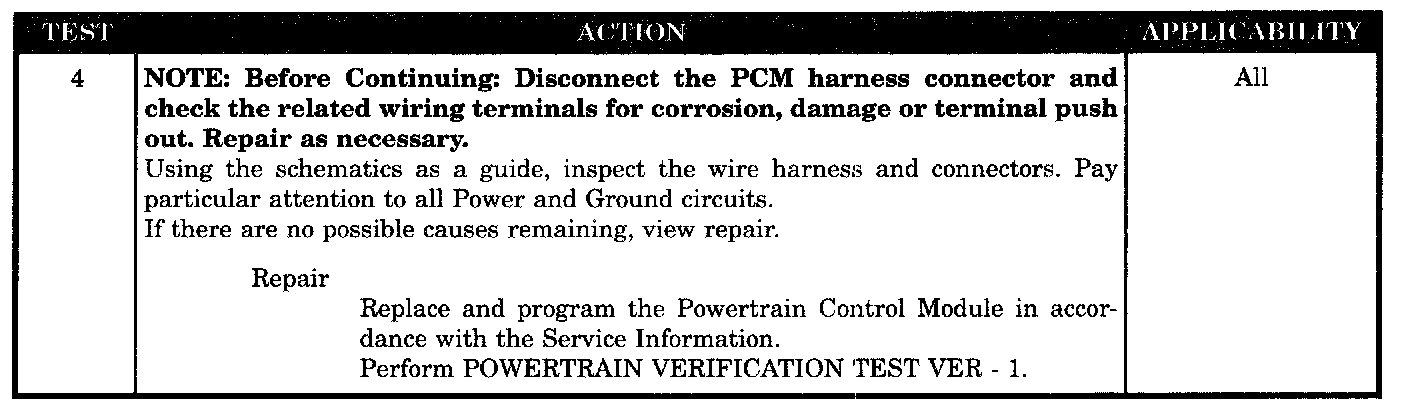

Test 4:

SYMPTOM
P1695-NO CCD/J185O MESSAGE FROM BODY CONTROL MODULE

WHEN MONITORED
With the ignition on. Battery voltage greater than 10.0 volts.

SET CONDITION
No BUS messages received from the BCM for 20 seconds.

POSSIBLE CAUSES
- DTC reset
- Communicate with BCM
- PCI bus circuit open
- PCM
