P1685

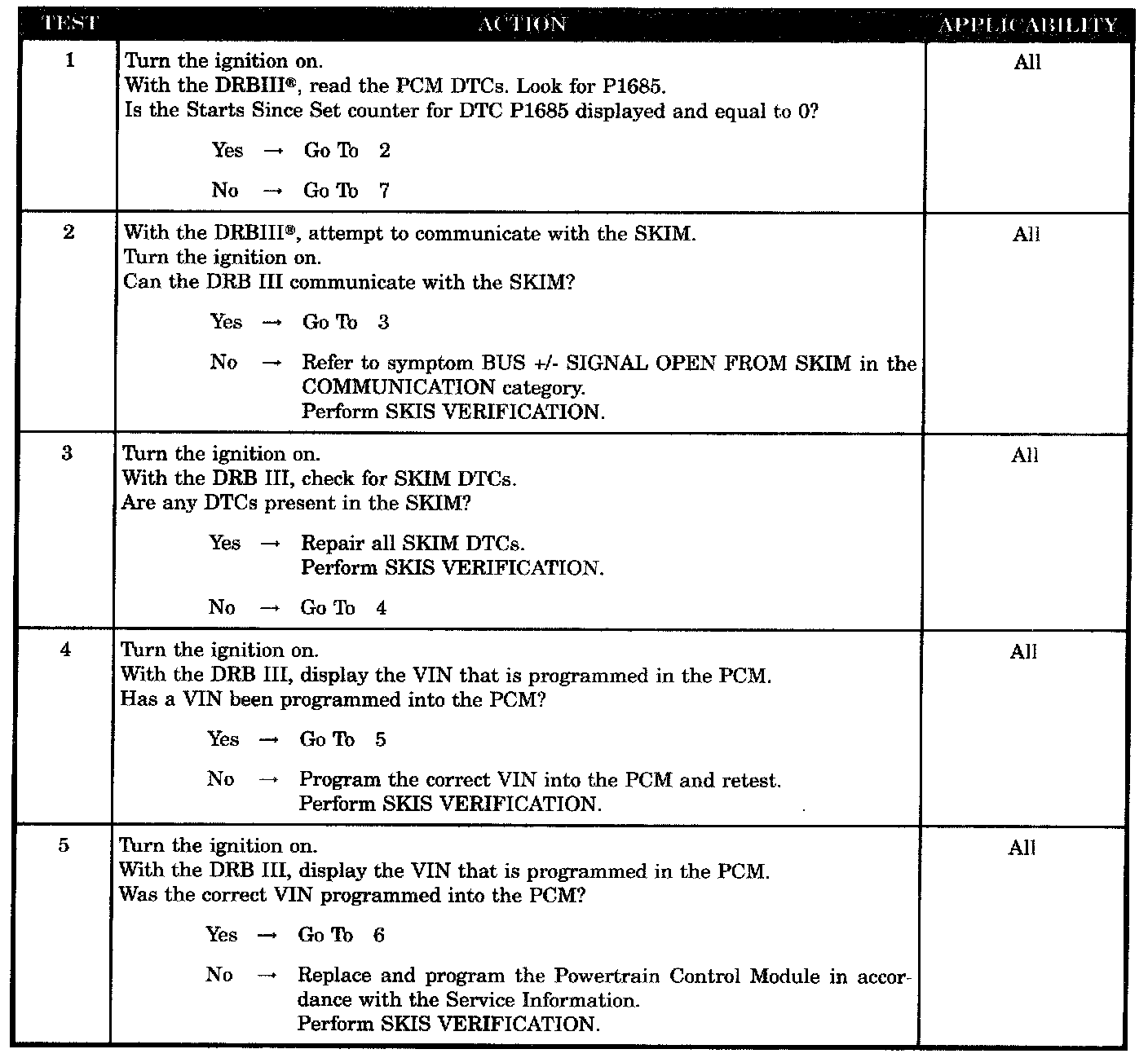

Test 1 - 5:

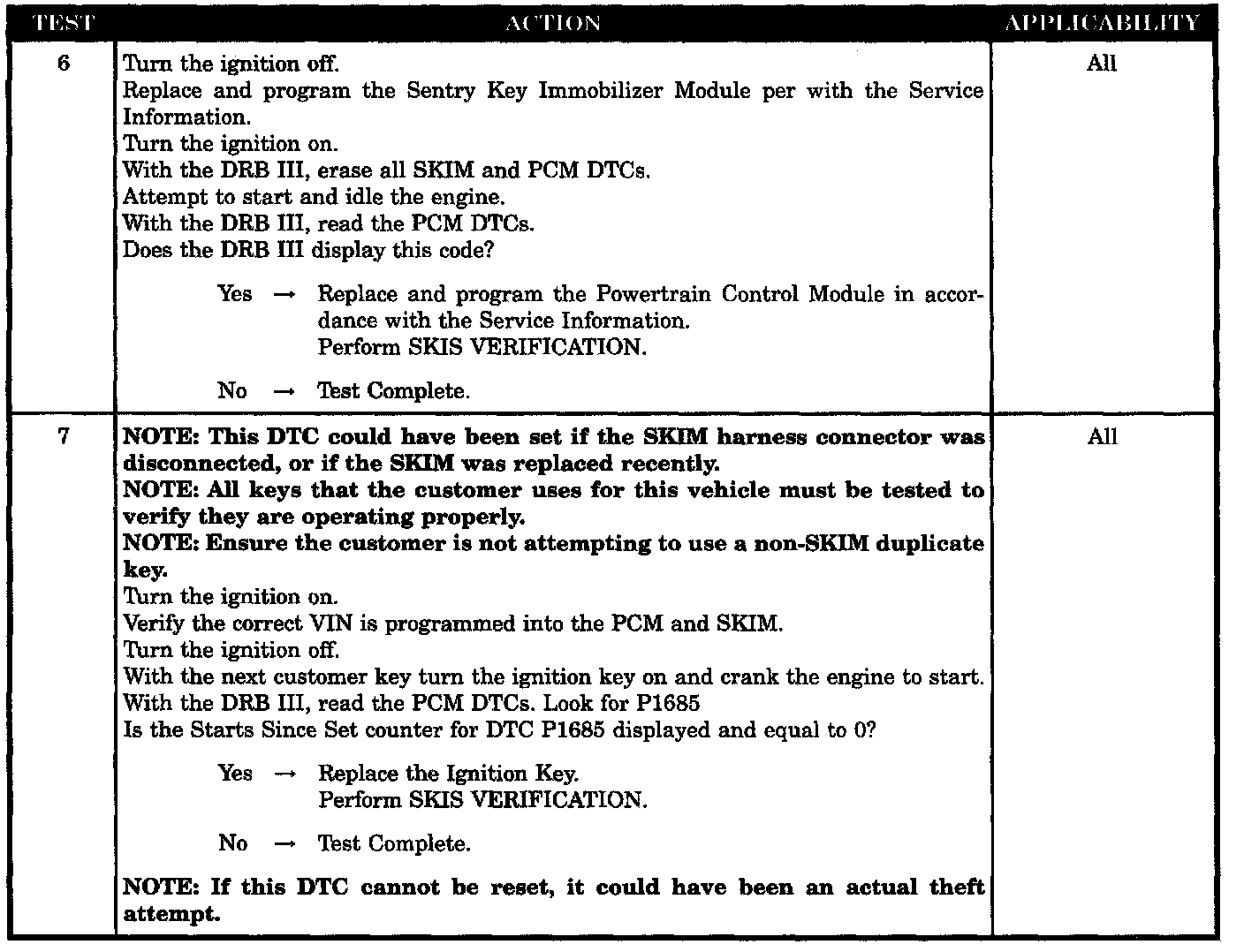

Test 6 - 7:

SYMPTOM
P1685 WRONG OR INVALID KEY MSG RECEIVED FROM SKIM

POSSIBLE CAUSES
- Incorrect VIN in PCM
- Invalid SKIM key not present
- No communication with SKIM
- No VIN programmed in the PCM
- PCM
- SKIM trouble codes set
