P1297

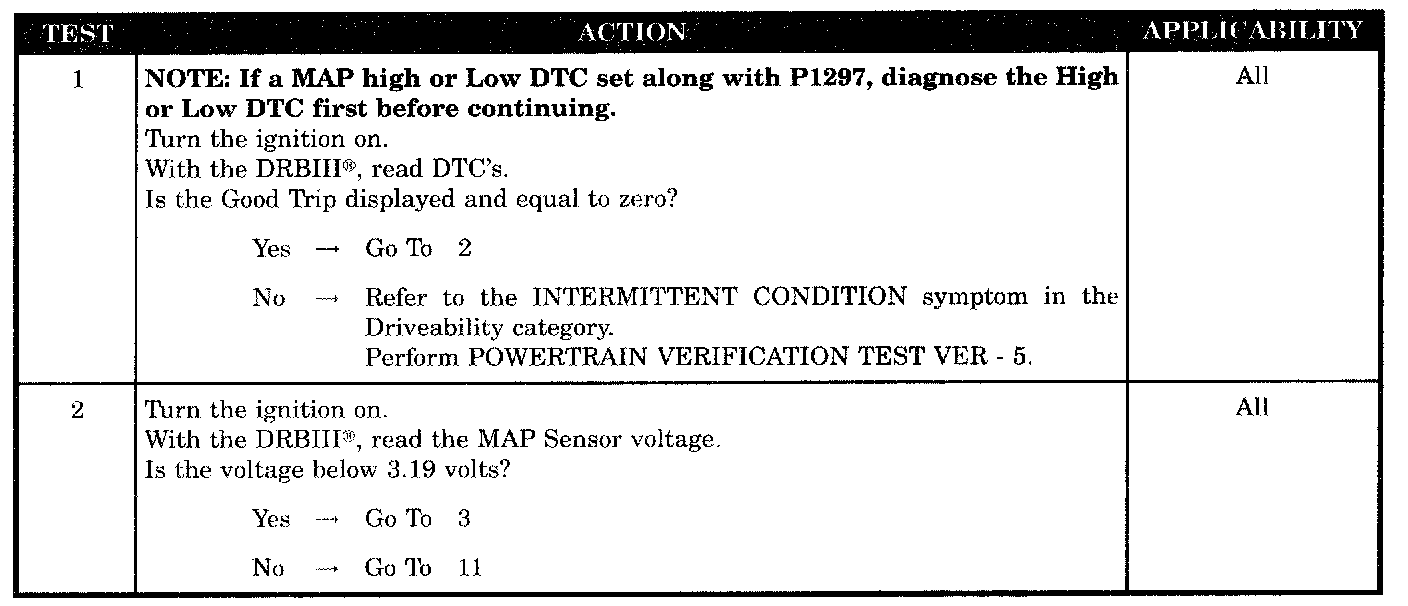

Test 1 - 2:

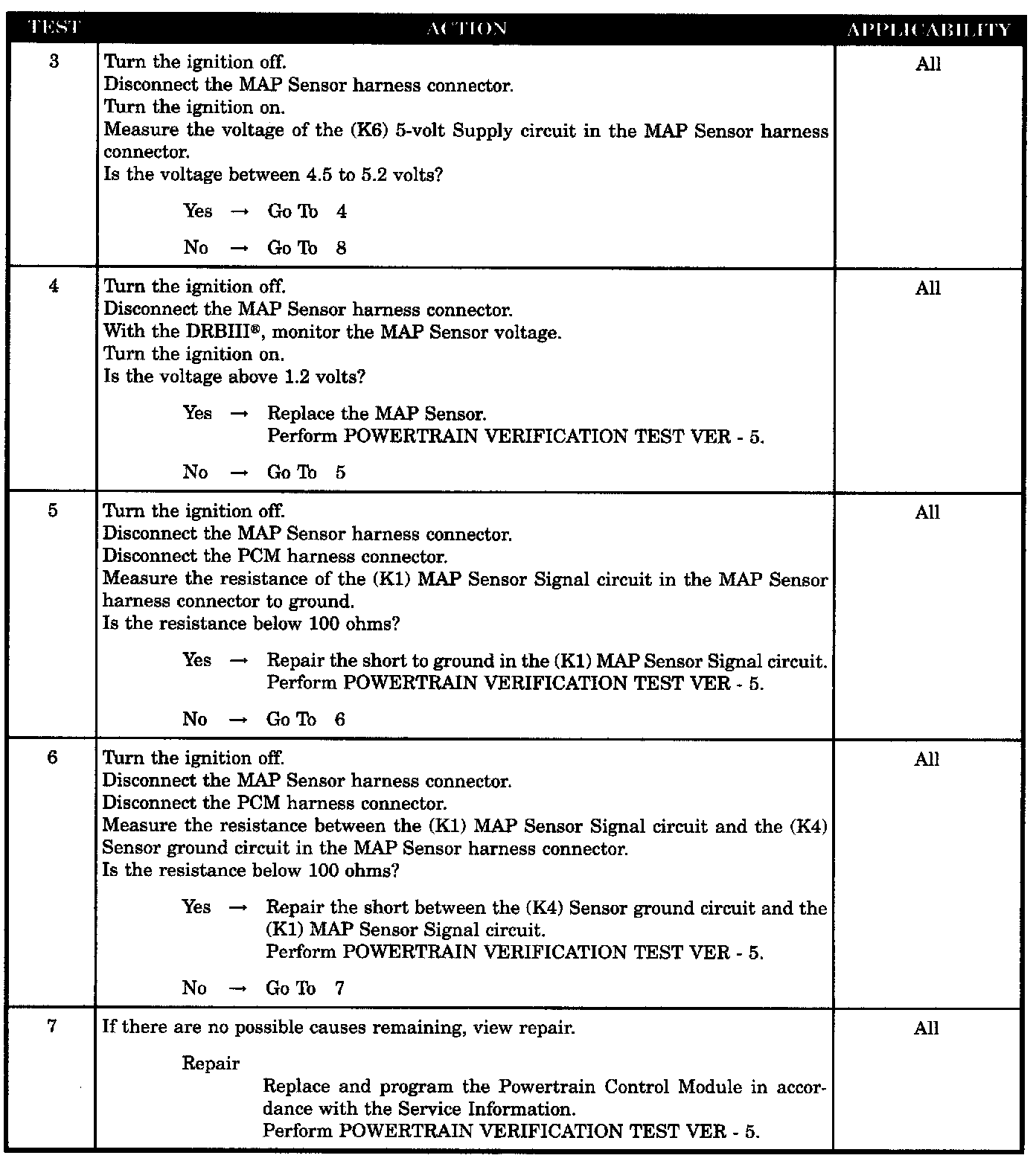

Test 3 - 7:

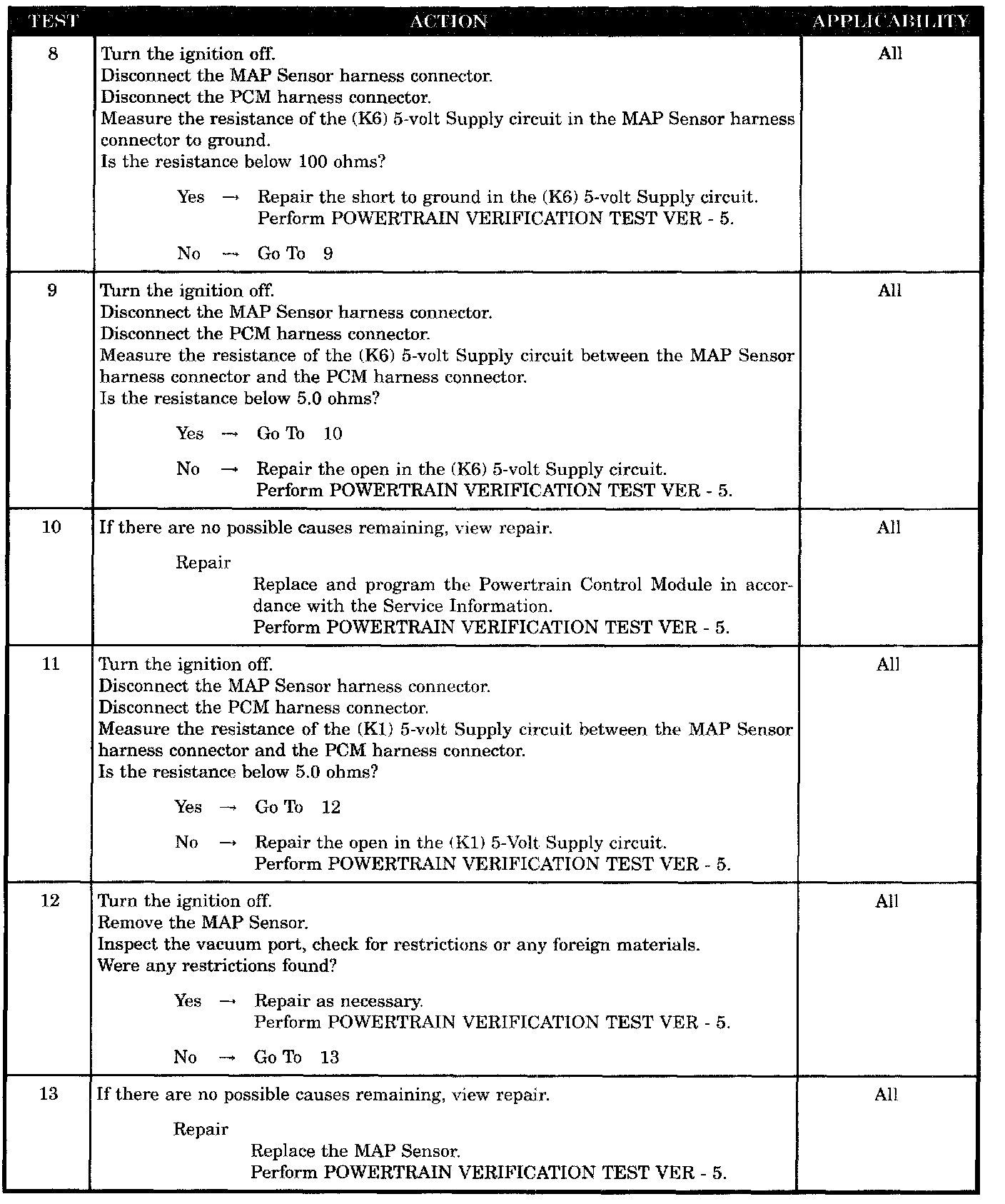

Test 8 - 13:

SYMPTOM
P1297-NO CHANGE IN MAP FROM START TO RUN

WHEN MONITORED
With engine RPM +/- 64 of target idle and the throttle blade at closed throttle.

SET CONDITION
Too small of a difference is seen between barometric pressure with ignition on (engine running) and manifold vacuum for 8.80 seconds.

POSSIBLE CAUSES
- Good trip equal to zero
- (K6) 5-volt supply circuit shorted to ground
- (K6) 5-volt supply circuit open
- MAP sensor internal failure
- (K1) MAP sensor signal circuit shorted to ground
- (K1) MAP sensor signal circuit shorted to (K4) sensor ground circuit
- (K1) MAP 5-volt supply circuit open
- MAP sensor vacuum port
- MAP sensor
- PCM (K6) 5-volt supply circuit
- PCM (K1) MAP sensor signal
