P0992

Symptom:
P0992- 2-4/OD HYDRAULIC PRESSURE TEST FAILURE

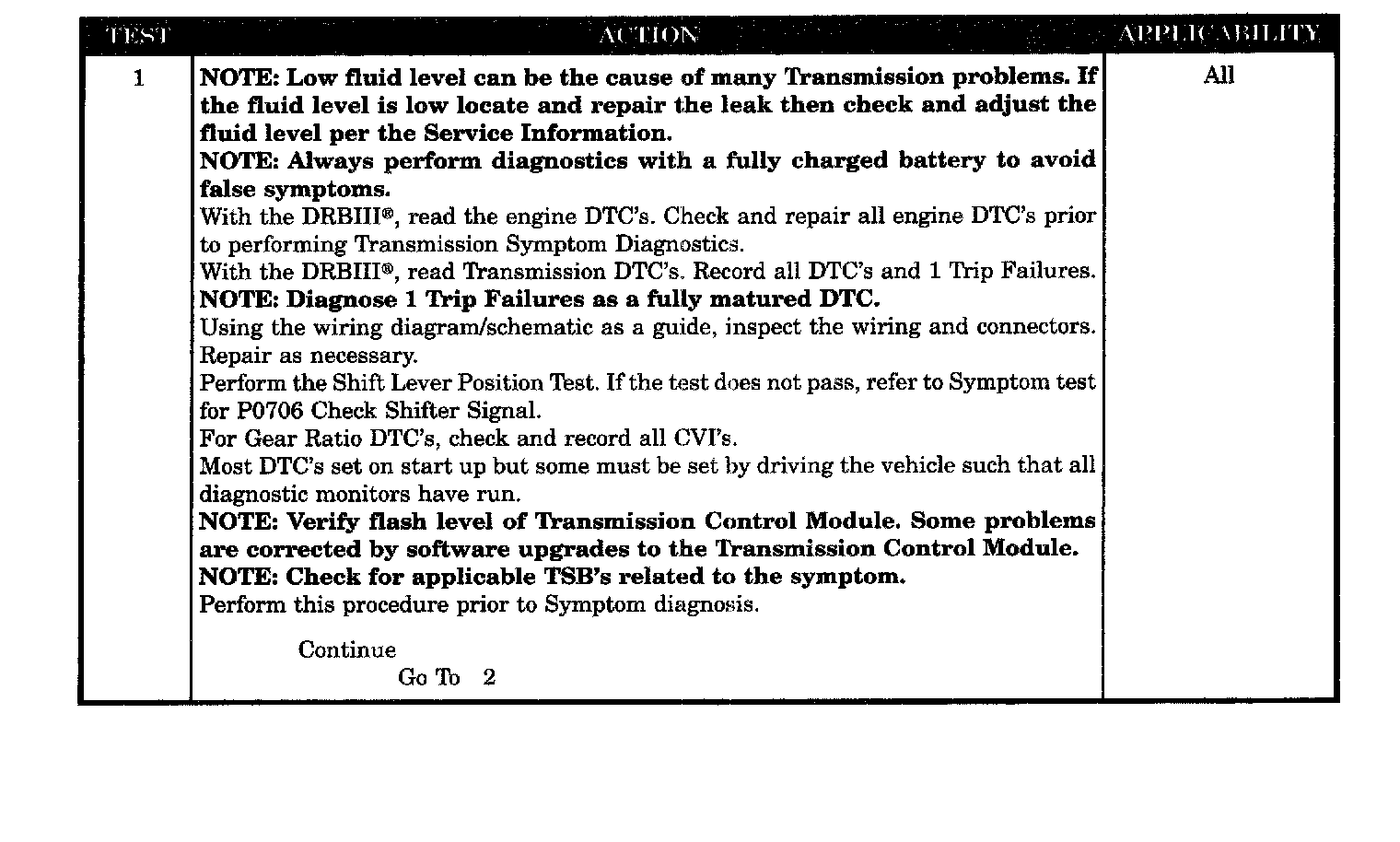

Test 1:

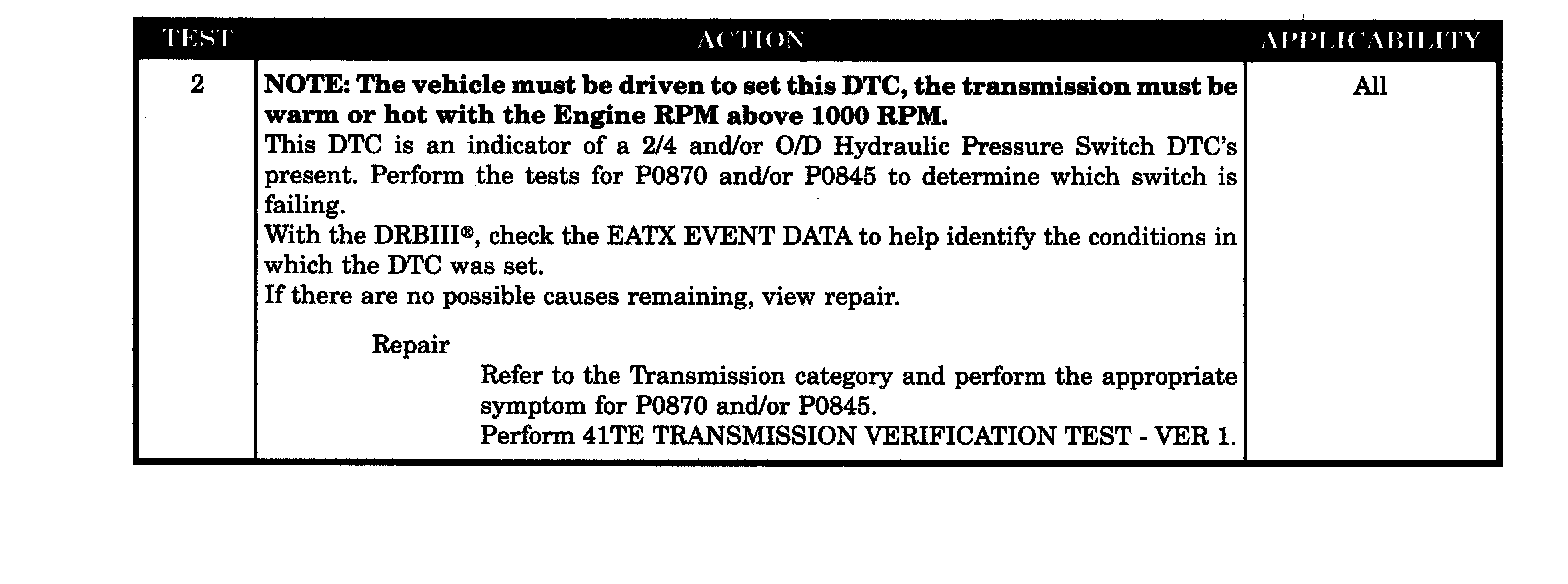

Test 2:





When Monitored:
In any forward gear with engine speed above 1000 RPM shortly after a shift and every minute thereafter.

Set Condition:
After a shift into a forward gear, with engine speed > 1000 RPM, the TCM momentarily turns on element pressure to the clutch that don't have pressure to identify the correct pressure closes. If the pressure does not close 2 times the code sets.

POSSIBLE CAUSES
- CONDITION P0992 PRESENT
