P0888

Symptom:
P0888-RELAY OUTPUT ALWAYS OFF

Test 1:

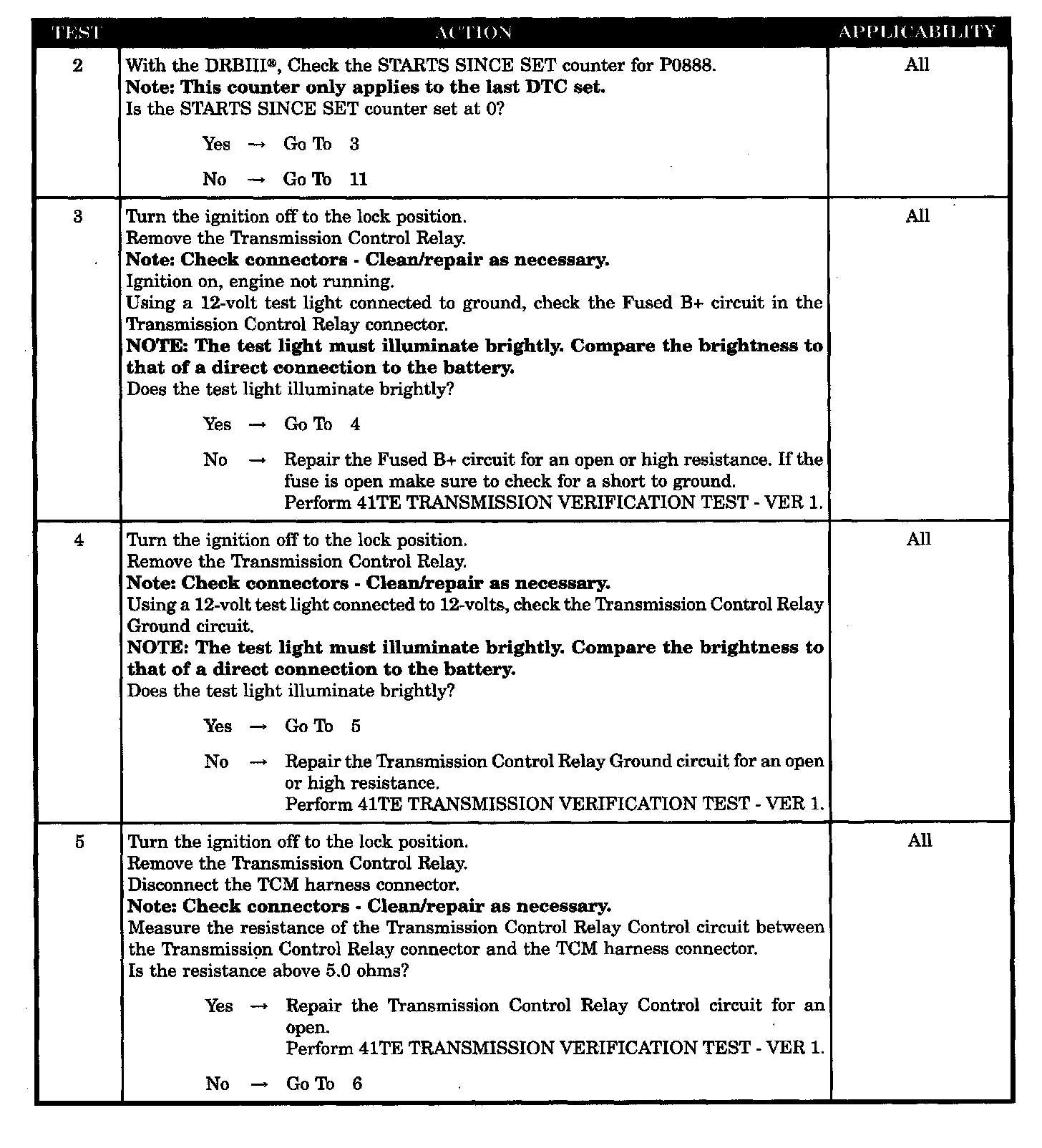

Test 2-5:

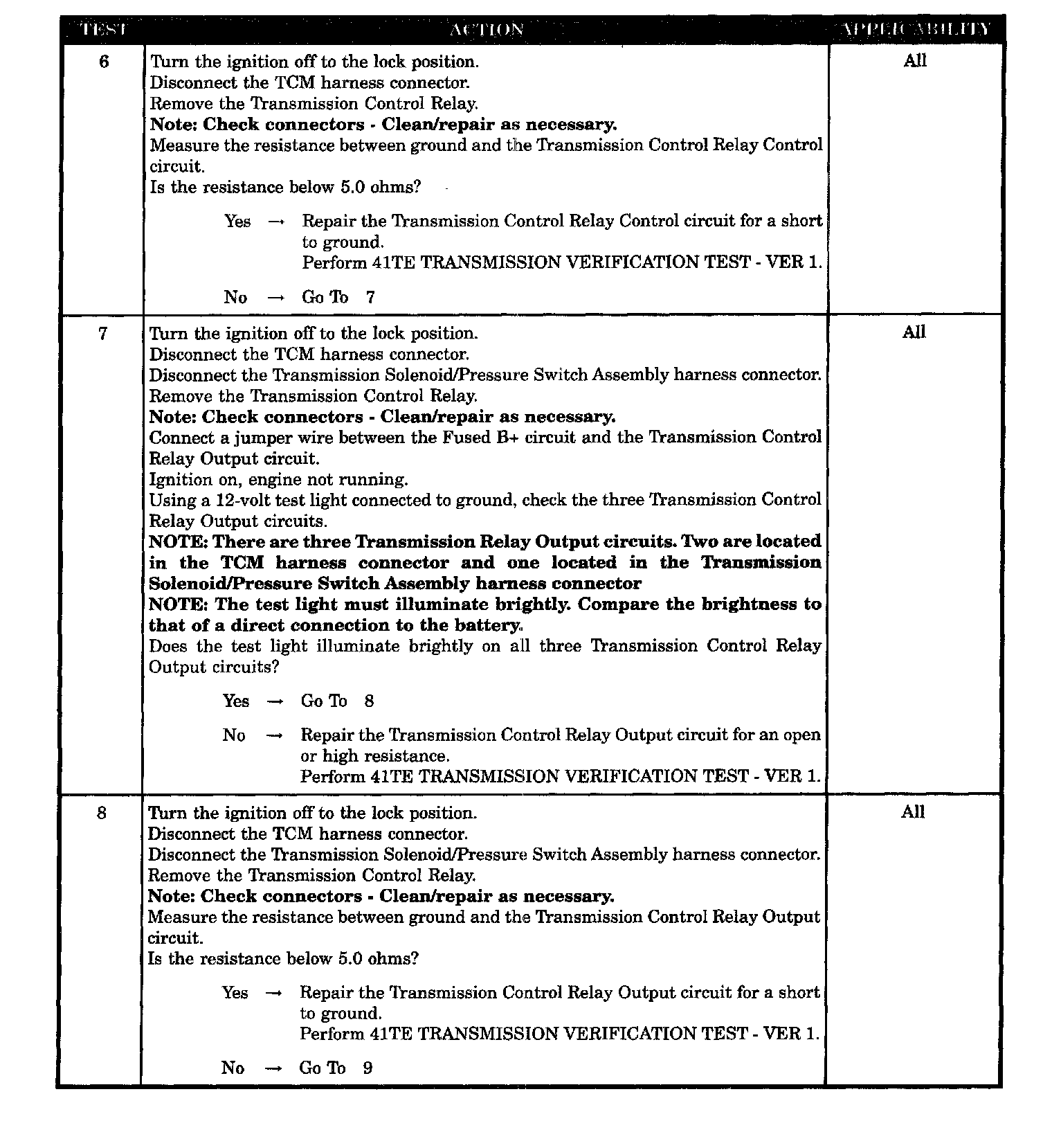

Test 6-8:

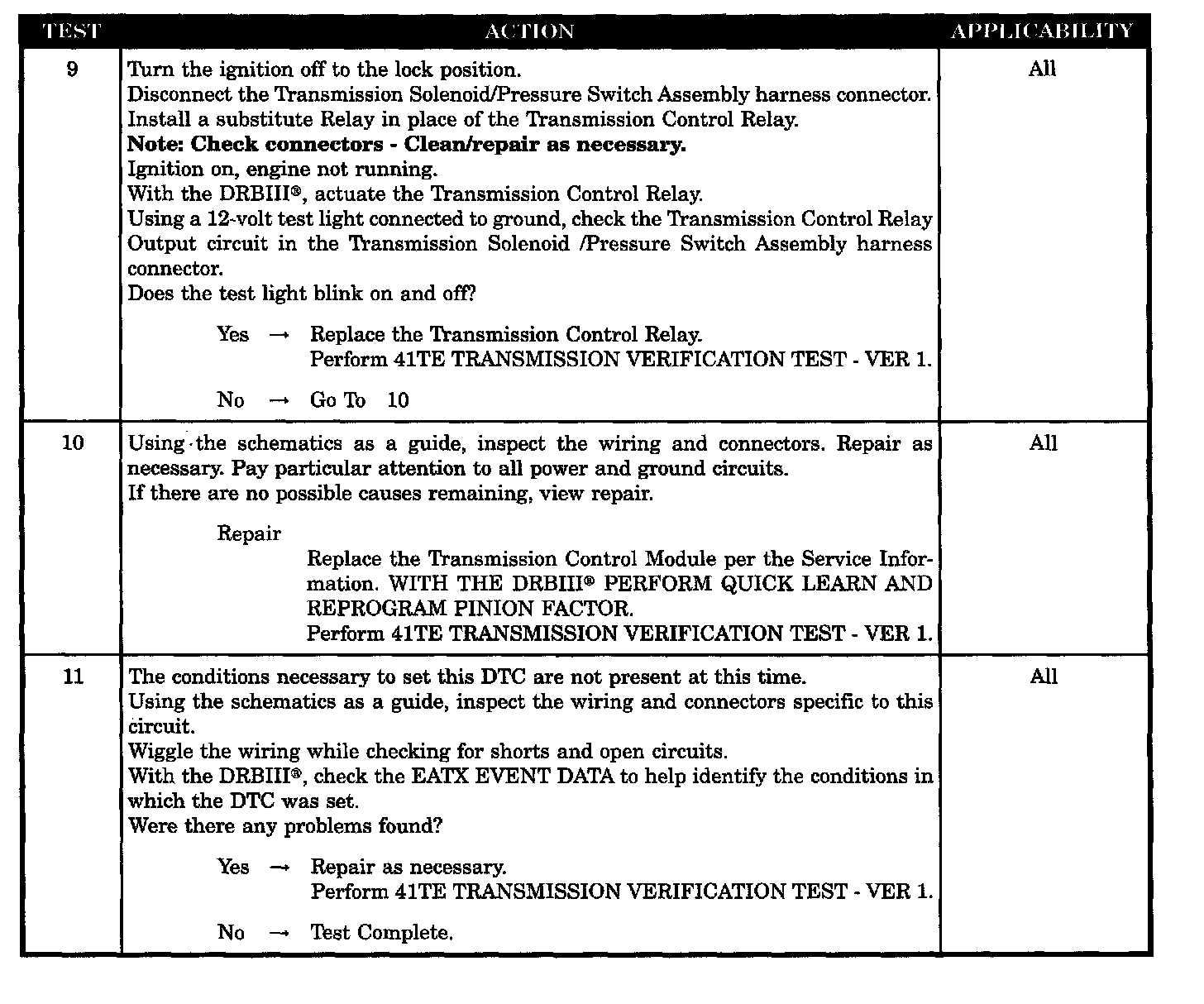

Test 9-11:

When Monitored:
Continuously

Set Condition:
This code is set when less than 3 volts are present at the transmission control relay output circuits at the 'transmission Control Module when the TCM is energizing the relay.

POSSIBLE CAUSES
- FUSED B+ CIRCUIT OPEN
- TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN
- TRANSMISSION CONTROL RELAY CONTROL CIRCUIT OPEN
- TRANSMISSION CONTROL RELAY GROUND CIRCUIT OPEN
- TRANSMISSION CONTROL RELAY CONTROL CIRCUIT SHORT TO GROUND
- TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT SHORT TO GROUND
- TRANSMISSION CONTROL RELAY STUCK OPEN
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTOR
