P0736

Symptom:
P0736-GEAR RATIO ERROR IN REVERSE

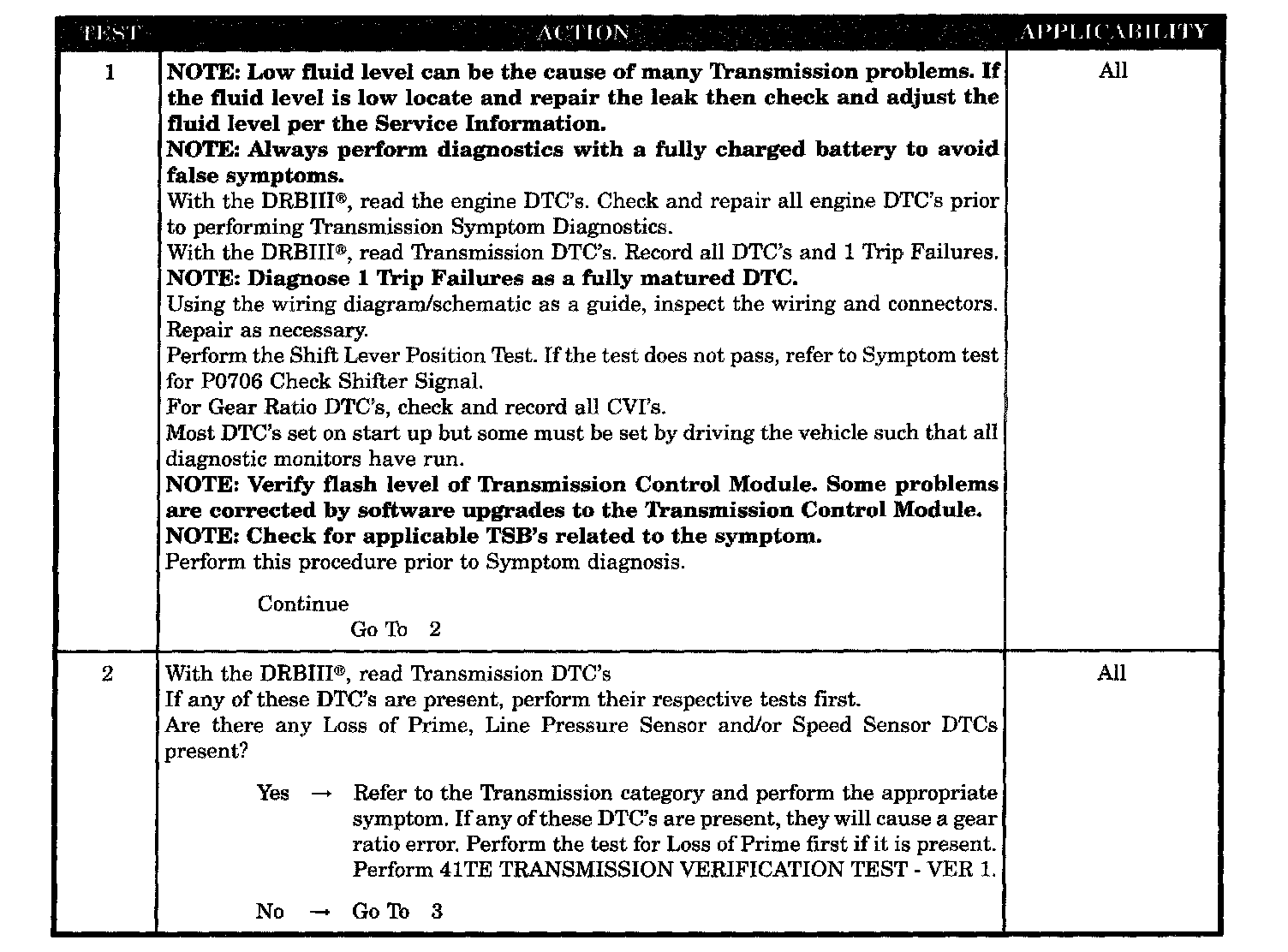

Test 1-2:

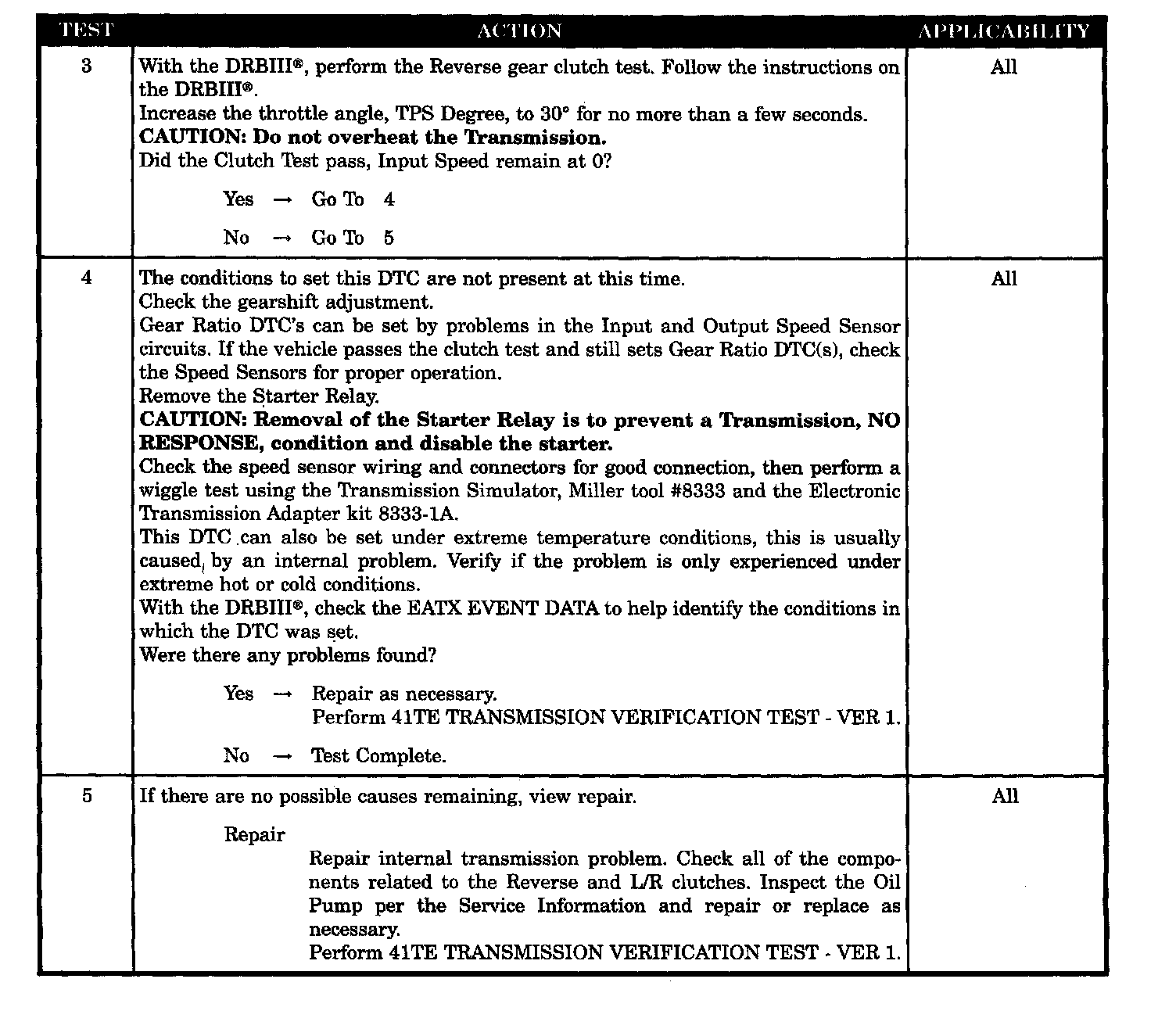

Test 3-5:

When Monitored:
The Transmission Gear Ratio is monitored continuously while the Transmission is in Gear.

Set Condition:
If the ratio of the input RPM to the output RPM does not match the current Gear Ratio.

POSSIBLE CAUSES
- RELATED DTC'S PRESENT
- INTERMITTENT GEAR RATIO ERRORS
- TRANSMISSION - INTERNAL
