P0715

Symptom:
P0715-INPUT SPEED SENSOR ERROR

Test 1:

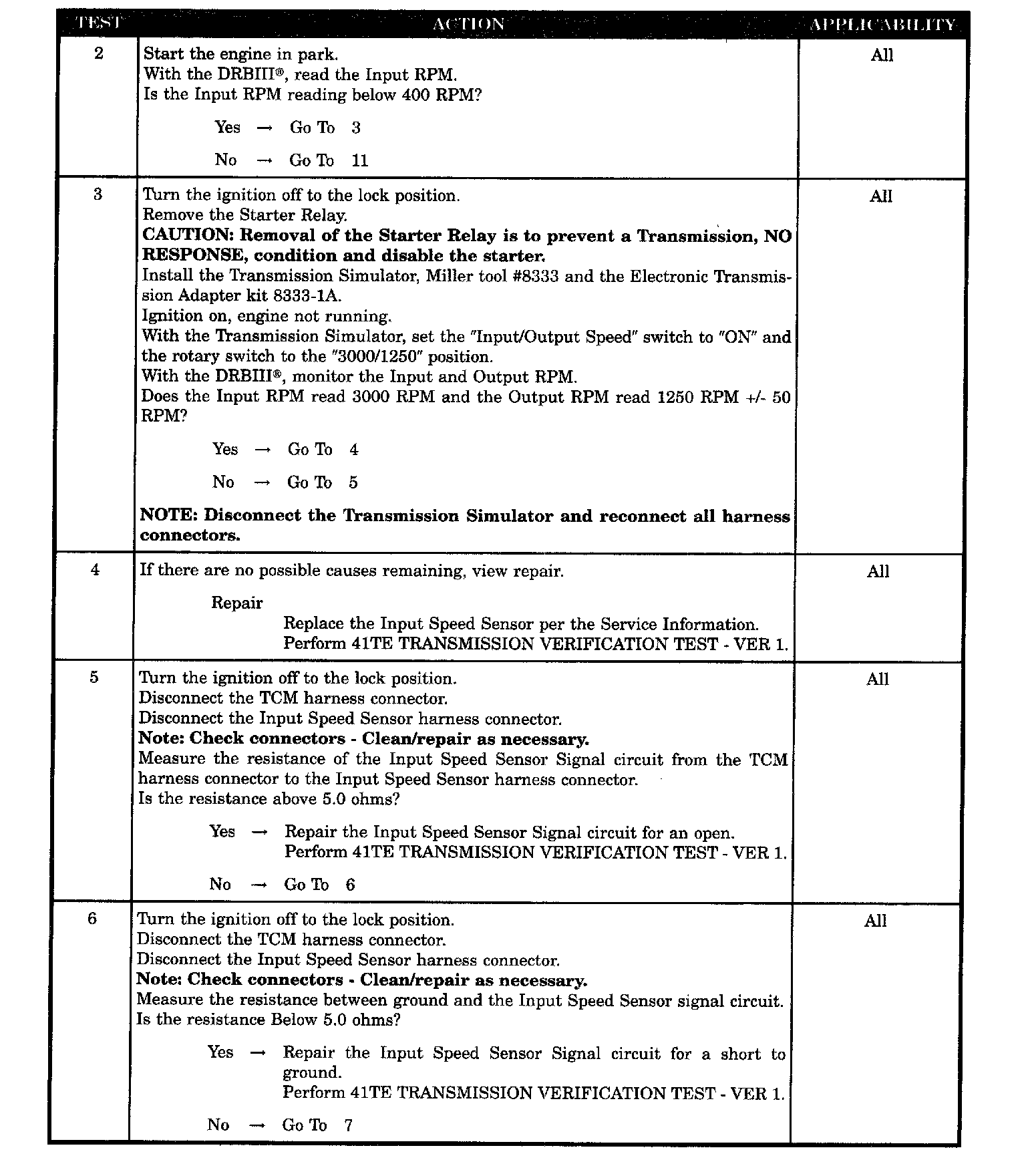

Test 2-6:

Test 7-10:

Test 11:

When Monitored:
The transmission gear ratio is monitored continuously while the transmission is in gear.

Set Condition:
If there is an excessive change in input RPM in any gear.

POSSIBLE CAUSES
- INPUT SPEED SENSOR SIGNAL CIRCUIT OPEN
- SPEED SENSOR GROUND CIRCUIT OPEN
- INPUT SPEED SENSOR SIGNAL CIRCUIT SHORT TO GROUND
- INPUT SPEED SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
- SPEED SENSOR GROUND CIRCUIT SHORT TO VOLTAGE
- INPUT SPEED SENSOR ERROR
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
