P0713

Symptom:
P0713-TRANSMISSION TEMPERATURE SENSOR HIGH

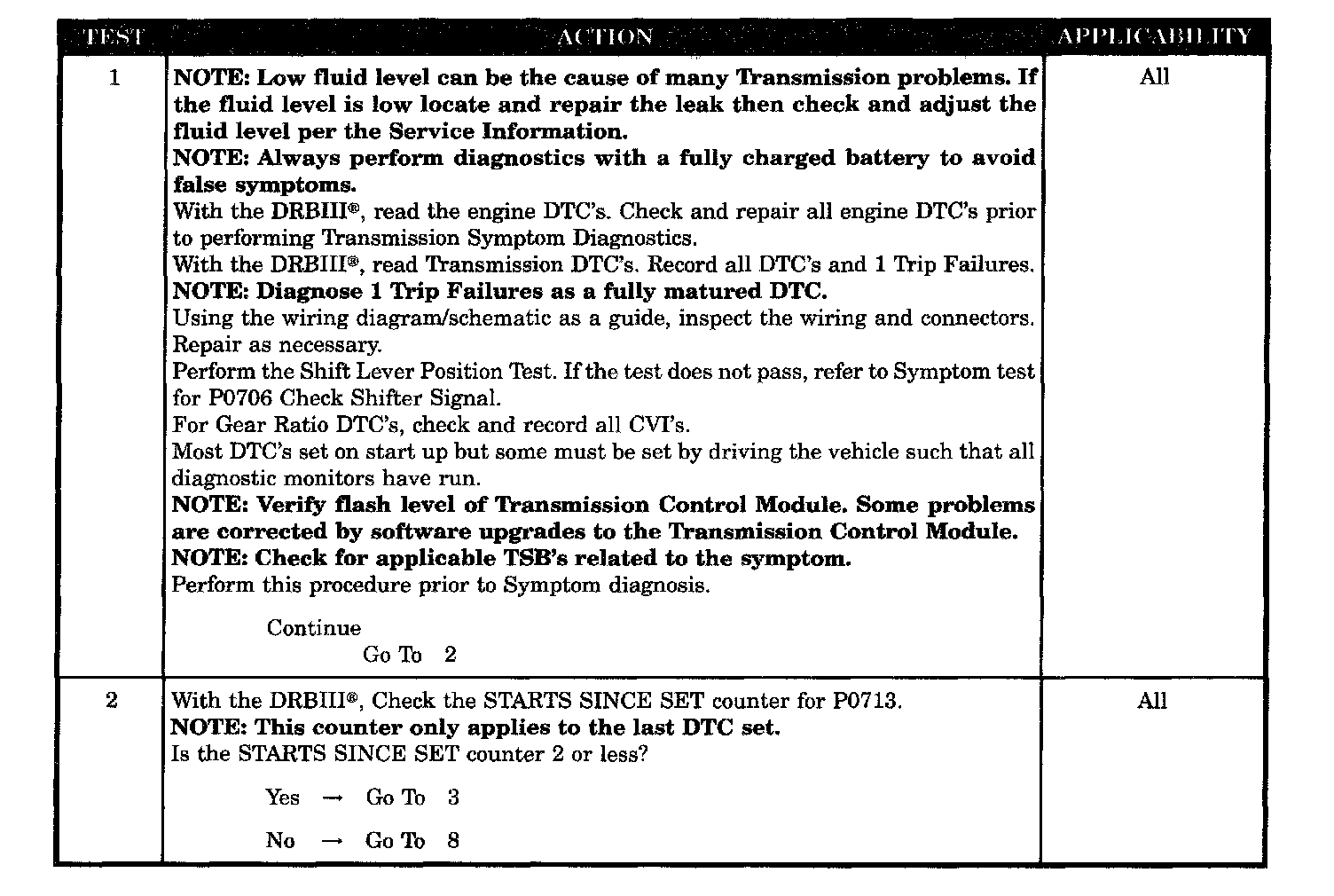

Test 1-2:

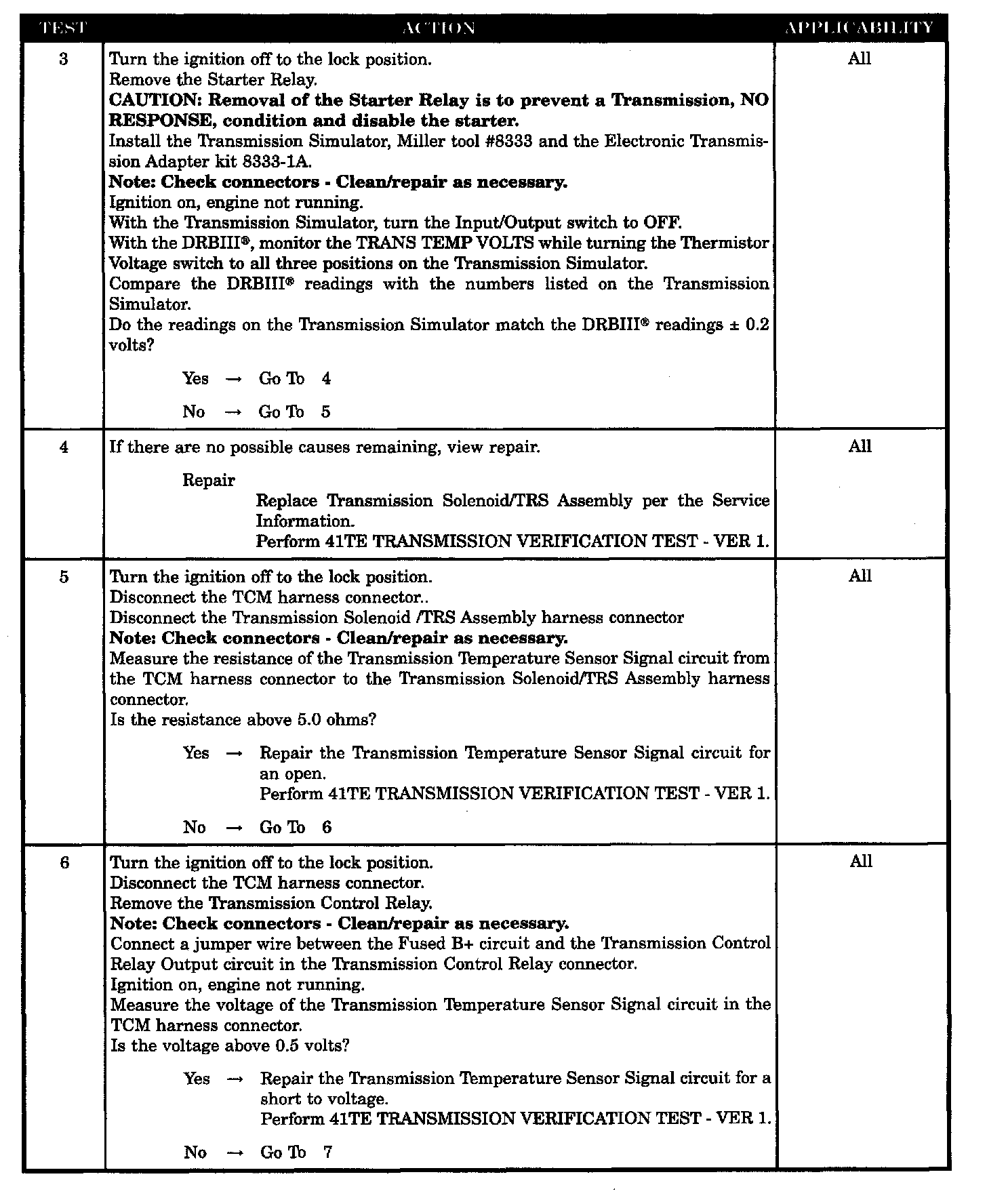

Test 3-6:

Test 7-8:

When Monitored:
Continuously with the ignition on and engine running.

Set Condition:
The DTC will set when the monitored Temperature Sensor voltage rises above 4.94 volts for the period of 0.45 seconds.

POSSIBLE CAUSES
- TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN
- TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
- TRANSMISSION TEMPERATURE SENSOR
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
